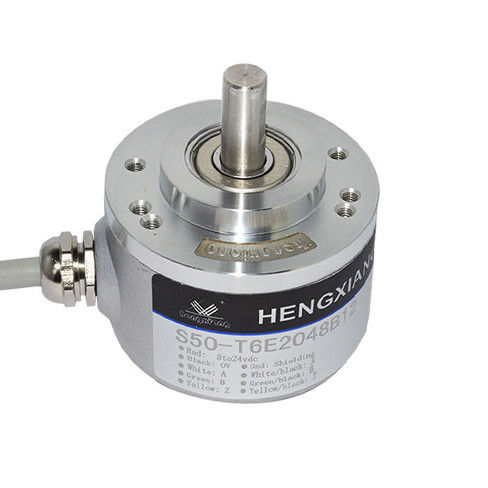

Incremental Solid Shaft Encoder External Diameter 50mm Shaft 8mm 1000 Resolution

Place of Origin Shanghai,China
Brand Name HENGXIANG
Certification CE,ISO9001
Model Number S50-T Series
Minimum Order Quantity 1pcs encoder to start order
Price negotiable
Packaging Details each 1 piece was packed into single carton box
Delivery Time 3-5 working days for sample order, 7-15 working days for mass order
Payment Terms D/A, D/P, T/T, Western Union, Credit Card, Master Card,Paypal, etc
Supply Ability 100K pieces per year
Product Details
Brand HENGXIANG Shaft Diameter 8mm (D Type)
Thickness 30mm Resolution 50ppr(Min) To 23040ppr(Max)
Grade Of Protectio IP50/ IP65 Optional Supply Voltage DC5V & DC8-30V
Output Mode Open Collector, Voltage Output, Push-pull, TTL,HTL Outlet Type Wire Out From Side & Wire Out From Side & Socket From Back
Wire Length 1M (it Can Be Added As Requirement) Weight About 190g (with Package)
High Light

shaft mounted encoder

,

push pull encoder

Leave a Message
Product Description

Incremental solid shaft encoder external diameter 50mm shaft 8mm 1000 resolution line driver output 6 phase 5vdc



1.Specifications:



ITEM PARAMTERS
External dimensions External diameter: 50mm ;Thickness: 30mm ;Shaft diameter: 8mm
Resolution

50;60;100;200;250;256;300;360;400;450;500;512;600;700;720;800;900;1000;1024;1200;2000;2048;

2500;5000;8192;10000;11520;16384;20000;23040

Output phase Phase A,B,Z,A-,B-,Z-
Outlettype Socket/Cable out from side & back
Protection grade IP50 & IP65
Cable length 1000MM
package Carton box
Weight About 190g (with package)
Certification CE/ ISO9001
Output mode N -pen Collector(NPN) V-Voltage output F-Push-pull output C- Line driver (26LS31) & RS422 E- Line driver(7272)
Supply voltage DC+5V±5% & DC8-30V±5% DC+5V±5% DC8-30V±5%
Consumption current 100mA MAX 200mA MAX
Top response frenquency 100KHZ 200KHZ
Output volume output current Input ≤30mA Load resistance 2.2K ≤30mA ≤±20mA
output - ≤10mA
output voltage "H" - - ≥(supply voltage-2.5V) ≥2.5v
"L" ≤0.4V ≤0.7V(Less than 20mA) ≥0.4V(when≤30) ≤0.5V
Load Voltage ≤DC30V -
Rise & Fall time less than 2us(load resistance 1KΩ,cable length:2M less than 1us(cable length:2m)
Origin motion low lelvel available high level available low level available high level available
starting torque less than 10mN.m
Intertia moment less than 3x 10-6kg.m2
Shaft load Radial 50N; Axial 30N
Top REV 5000RPM
Environmental temperature Operating:-20 ~+80°;storage:-25 ~+85°
Enviromental humidity Operating and storage: 35-85%RH(noncondensing)
Vibration(endure) Amplitude 0.75mm,10-50Hz,1 hour for three axis individually
Sock(endure) 49m/s2 ,three times for X,Y,Z direction individually
Material Main body: aluminium alloy
Cable length 1000mm(cable with shielding)
