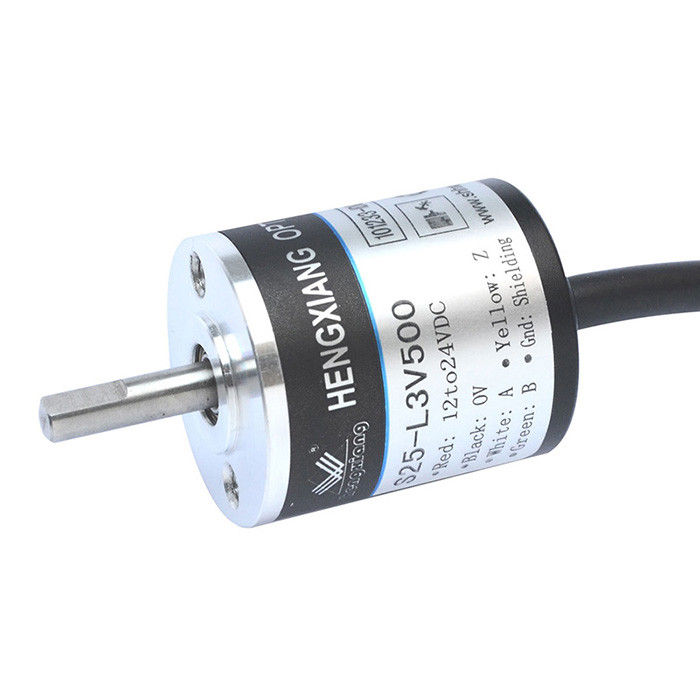

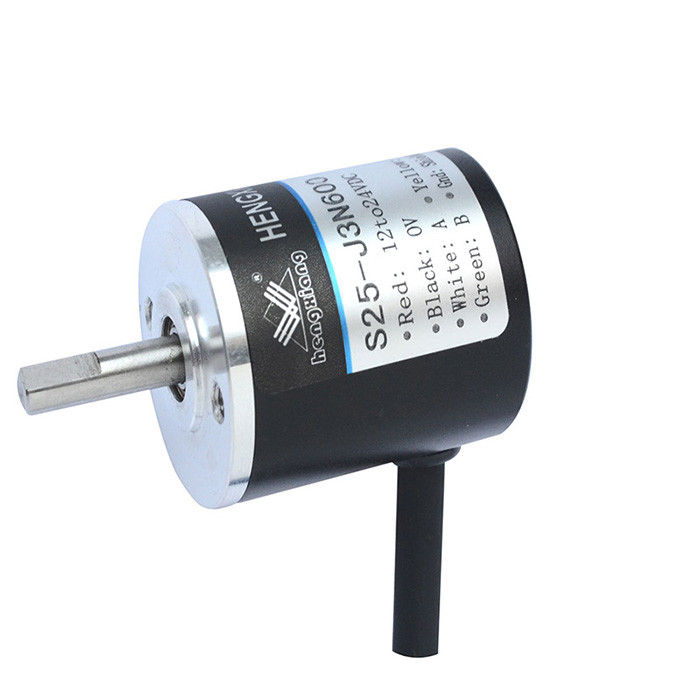

Name: IP50 Miniature Rotary Encoder , Cnc Rotary Encoder Mini Shaft 4mm Voltage Output
Brand: HENGXIANG
SKU: S25 cnc rotary encoder

Home Products Miniature Rotary Encoder

IP50 Miniature Rotary Encoder , Cnc Rotary Encoder Mini Shaft 4mm Voltage Output

Product Details:

Place of Origin:	Shanghai, China
Brand Name:	HENGXIANG
Certification:	CE,ISO9001
Model Number:	S25 cnc rotary encoder

Payment & Shipping Terms:

Minimum Order Quantity:	1pcs encoder to start order
Price:	negotiable
Packaging Details:	each 1 piece was packed into single carton box
Delivery Time:	3-5 working days for sample order, 7-15 working days for mass order
Payment Terms:	D/A, D/P, T/T, Western Union, Credit Card, Master Card,Paypal, etc
Supply Ability:	100K pieces per year

Contact Now

Detailed Product Description

External diameter:	25mm	Thickness:	30mm
Solid Shaft diameter:	4mm(D Shape)	Encoder Type:	Incremental Encoder
Output phase:	Phase A,B,Z,A-,B-,Z-	Supply voltage:	DC5V; DC8-30V
Protection grade:	IP50	Insulation Strength:	AC500V 60s
High Light:	small rotary encoder , simple rotary encoder

Miniature rotary encoder with keyway S25 encoder mini shaft 4mm voltage output

About Our Factory

Own brand of "HENGXIANG" encoder
Has ISO9001:2000 Quality Management System Certificate and CE Certification
Invention patents five and utility model patents five
Passed Shanghai New and High-tech Achievements Transformation Project.
Our target: Meeting Client's Requirement,Creating Social value,serving clients attentively and Achieving win-win.
Located in Shanghai city
20-30 experienced workers

Production date

3-5 working days for sample after full paid

7-15 days for mass production after full paid

Shipment

Goods can shipped via TNT, FedEx, UPS, DHL, EMS, etc.
You could select the express according to your requirements if freight collector
If you do not have any courier account, we will check and find a cheapest and safety express for you.
Our factory has 30% discount with most courier company, so price could be as cheap as possible.

S25 encoder Specification

Items	Basic parameters
External dimensions	External diameter: 25mm
	Thickness: 30mm
	Solid shaft diameter: 4mm(D shape)
Encoder type	Incremental encoder
Resolution	20；25；36；50;60;100;200;250;256;300;360;400;500;512
Resolution	600;625;720;1000;1024;1200;1250;1440;2000;2048;2500
Output phase	Phase A,B,Z,A-,B-,Z-
Supply voltage	DC5V; DC8-30V
Outlet type	Cable out from side
	Cable out from back
Output mode	NPN&PNP
	Voltage output
	Push-pull output
	Difference output(TTL,HTL,RS422)
Environmental temperature	Operating temperature: -20~+80° (Non icing)
	Storage temperature: -25~+85° (Non icing)
Environmental humanity	Operating and storage: 35~85%RH (non-condensing)
Protection grade	IP50
package	Carton box
Net weight	50g (with package)
Certification	CE

Our Service

Quick response once received customer’s quotation query
Professional engineer team, to solve your problems at any time
Strictly inspection before shipment
Various encoder models to be selected
Short lead time
High quality standard

Production Catalogue

If you have already selected the encoder model you are going to order, please email us directly or contact online service right now to get the latest catalogue.

But if you are still have any doubts on choosing a right encoder model number, you are also free to contact us to get the related catalogue.

IP50 Miniature Rotary Encoder , Cnc Rotary Encoder Mini Shaft 4mm Voltage Output 0

Some Related S25 encoder model number

S25-J3V600C2 DC5V
S25-J3N36C3 DC12V
S25-J3F50 DC24V
S25-J2F200C2.5 DC5-12V
S25-J2N250 DC5-30V
S25-J3F300 DC12-24V
S25-J2V512C3 DC8-30V
S25-J2N2500C5 DC5-24V
S25-J3F2048DC5-12V
S25-J1N2000 DC5-24V
S25-J1V1440 DC24V
S25-J6C1250 DC5V
S25-J6E1200 DC8-30V
S25-J3F1024 DC5-24V
S25-J6C600C5 DC12-24V
S25-J6E720C3 DC24V
S25-J3N625C4 DC5-12V
S25-J3F2500 DC24V
