Photoelectric Optical Rotary Shaft Encoder 300KHZ Solid Shaft 6mm With D Shape

Photoelectric Optical Rotary Shaft Encoder 300KHZ Solid Shaft 6mm With D Shape

Photoelectric Optical Rotary Shaft Encoder 300KHZ Solid Shaft 6mm With D Shape
Photoelectric Optical Rotary Shaft Encoder 300KHZ Solid Shaft 6mm With D Shape
Photoelectric Optical Rotary Shaft Encoder 300KHZ Solid Shaft 6mm With D Shape
Product Details:
Place of Origin: Shanghai,China
Brand Name: HENGXIANG
Certification: CE,ISO9001
Model Number: S38 Series
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs encoder to start order
Price: negotiable
Packaging Details: each 1 piece was packed into single carton box
Delivery Time: 3-5 working days for sample order, 7-15 working days for mass order
Payment Terms: Western Union, MoneyGram, T/T, D/P, D/A, L/C
Supply Ability: 100K pieces per year
Contact Now
Detailed Product Description

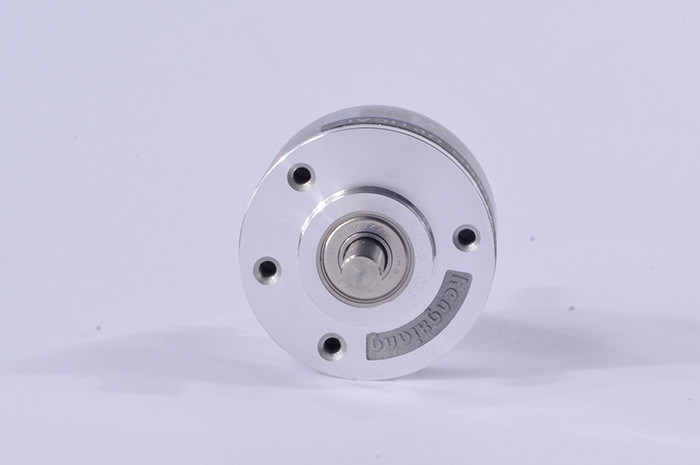

Product Name: Optical Rotary Encoder External diameter: 38mm
Resolution: 50ppr(Min) To 16384ppr(Max) Optional Supply Voltage: DC5V & DC8-30V
Top REV: 5000RPM ;IP65≤3000r Rpm Protection grade: IP50 & IP65
Top Response Frequency: 300KHZ Net weight : About 120g (with Package)
High Light:

shaft mounted encoder

,

digital shaft encoder

S38 solid shaft encoder 4096ppr open-collector output DC5-30V E6B2-CWZ1X optical rotary shaft encoder



Production video

There are plenty of encoder video if you still have any doubts on encoder, please email us directly or contact online service right now.

At the same time, you could also visit our YOUTUBY page easily.

Most of the encoder series have videos for reference.



Key Features for S38 rotary encoder:

Max resolution16384ppr

External diameter 38mm

Thickness 28mm

Shaft length 13mm

Power supply voltage 5V or 8--30V

Axial Cable outlet or Radial Cable outlet

Sensing basic : photoelectric

Pulse per turn:50ppr to 16384ppr

Solid shaft 6mm with D shape

Output Phase: A,A+B, or ABZ or A+B+Z+A-B-Z-

Gross weight 120 grams

Slew speed 500 round per minute



Product introduction

ITEM PARAMTERS
Brand HENGXIANG
Encoder type Incremental encoder
External diameter 38mm
Thickness 28mm
Shaft length 13mm
Solid Shaft diameter 6mm(D shape)
Certification CE/ ISO9001
Consumption current 100mA MAX
Top response frequency 300KHZ
Allowable ripple ≤3%rms
Load Voltage ≤DC30V
starting torque less than 4.4X10-3 N.m
Intertia moment less than 1.5x 10-6kg.m2
Shaft load Radial 40N; Axial 20N
Top REV 5000RPM ;IP65≤3000r rpm





Shipment

  • Goods can shipped via TNT, FedEx, UPS, DHL, EMS, etc.
  • You could select the express according to your requirements if freight collector
  • If you do not have any courier account, we will check and find a cheapest and safety express for you.
  • Our factory has 30% discount with most courier company, so price could be as cheap as possible.

Photoelectric Optical Rotary Shaft Encoder 300KHZ Solid Shaft 6mm With D Shape 0





Notice for encoder installation

1. Please read the encoder specification carefully before installation

2. Encoder is belong to precision instrument, so we should avoid shock or vibration to protect interior parts.

3. The power supply voltage must be holded within specified range, or encoder could be destroyed.

4. Notice coaxially requirements when you install the power shaft, please use flexible coupling and do not press encoder forcibly.

5. Shielding cable of encoder must be connected to avoid electromagnetism interference of alternating current, cables of encoder should be layout individually.

6. Wiring diagram connection should be strictly follow the specified color in catalogue, or encoder interior circuit may be destroyed

7. Encoder should be apart from powerful magnetic field, dust, oil, water, higher (lower) temperature and caustic or flammable material during working.

8. The encoder cable signal can’t be drew or bent forcibly.
