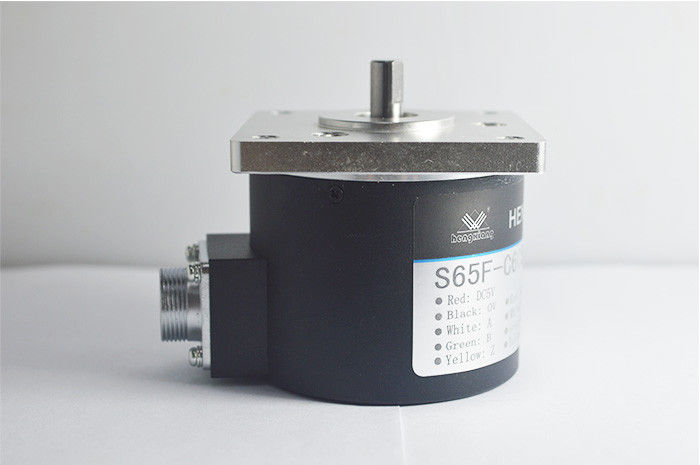

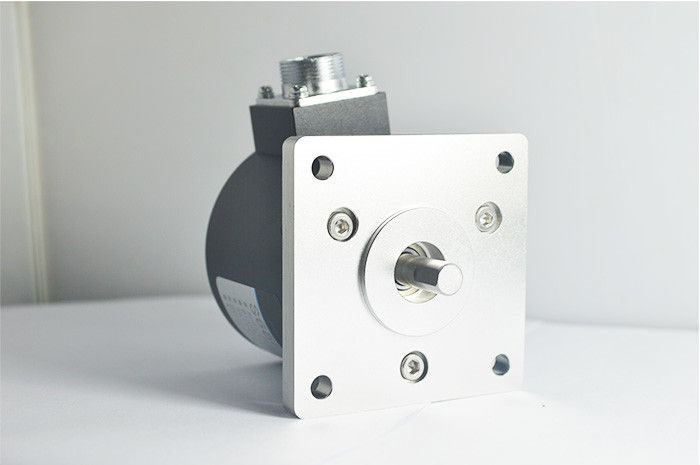

S65F Shaft 15mm Solid Shaft Encoder , Shaft Mounted Encoder With Key Way 10000 Resolution PNP Output

S65F Shaft 15mm Solid Shaft Encoder , Shaft Mounted Encoder With Key Way 10000 Resolution PNP Output

    • S65F Shaft 15mm Solid Shaft Encoder , Shaft Mounted Encoder With Key Way 10000 Resolution PNP Output
    • S65F Shaft 15mm Solid Shaft Encoder , Shaft Mounted Encoder With Key Way 10000 Resolution PNP Output
  • S65F Shaft 15mm Solid Shaft Encoder , Shaft Mounted Encoder With Key Way 10000 Resolution PNP Output

    Product Details:

    Place of Origin: Shanghai,China
    Brand Name: HENGXIANG
    Certification: CE,ISO9001
    Model Number: S65 shaft mounted encoder

    Payment & Shipping Terms:

    Minimum Order Quantity: 1pcs encoder to start order
    Price: negotiable
    Packaging Details: each 1 piece was packed into single carton box
    Delivery Time: 3-5 working days for sample order, 7-15 working days for mass order
    Payment Terms: D/A, D/P, T/T, Western Union, Credit Card, Master Card,Paypal, etc
    Supply Ability: 100K pieces per year
    Contact Now
    Detailed Product Description
    External diameter: 65mm Shaft diameter: 8mm
    Thickness: 52.5mm Keywords: Shaft Mounted Encoder
    Supply voltage: DC5V ; DC8~30V Resolution: 50ppr - 23040ppr
    Cable length: 1M Net weight : About 380g (with Package)
    High Light:

    digital shaft encoder

    ,

    push pull encoder

    Solid shaft encoder S65F shaft 15mm with key way 10000 resolution PNP output shaft mounted encoder



    Matters needing attention

    1. Must choose the power supply voltage: DC5V or DC8-30V

    2. Must choose leaf spring plate model number if you select hollow shaft encoder

    3. Please advise the motor speed (RPM) that you actually use

    4. If you have any other requirements, please provide detail parameters



    Quick review of S65F flange encoder

    External diameter: 65mm

    Thickness: 53mm

    Shaft length: 16mm

    Solid Shaft diameter: 8mm(D shape)

    Resolution : from 50ppr to 23040ppr

    Output phase: Phase A+,B+,Z+ ,A- B- Z-

    Supply voltage: DC5V ; DC8~30V



    S65F Shaft 15mm Solid Shaft Encoder , Shaft Mounted Encoder With Key Way 10000 Resolution PNP Output 0



    Connecting Coupling Part Number:

    There are some applications that you may need to use a coupling to connect encoder to the motor shaft, there’re a few tips to select a coupling type

    1 you need to consider the magnitude and nature of the required transmitted torque, the requirements for buffering and damping functions, and whether resonance may occur.

    2 you also need to think about the degree of relative displacement of the two axis axes caused by manufacturing and assembly errors, shaft loading and thermal expansion deformation, and relative motion between components.

    3 regarding the applicable dimensions and installation methods, in order to facilitate the assembly, adjustment and maintenance of the necessary operating space. For large couplings, it should be possible to disassemble the shaft without axial movement.

    4. In addition, consideration should be given to the working environment, service life, and lubrication, sealing, and economic conditions. Refer to the various coupling characteristics and choose a suitable coupling type.

    5. Here are some coupling part number, please carefully check before ordering.

    4H4

    6H6

    6H8

    8H8

    8H10

    6M6

    6M8

    8M8

    8M10



    Parameter table for S65F

    Items Basic parameters
    External dimensions External diameter: 65mm,Thickness: 52.5mm
    Installation Size:48mm, Flange:67*67*7mm
    Shaft diameter: 8mm
    Resolution 50;60;100;200;250;256;300;360;400;450;500;512;600;
    720;1000;1024;1200;1250;1440;1800;2000;2048;2500
    ;2880;3000;3600;4000;4096;5000;5760;8192;10000;
    11520;16384;20000; 23040
    Output phase Phase A,B,Z or A- B- Z-
    Supply voltage DC5V & DC8-30V
    Outlet type Cable out from side with metal sleeve
    Socket out from side
      NPN/PNP(Open Collector Output)
      Voltage output
    Output mode Push-pull output
      line drive (26LS31) TTL
      line drive(DC8-30V) HTL
    Environmental temperature Operating temperature: -20~+80° (Non icing)
    Storage temperature: -25~+85° (Non icing)
    Environmental humanity Operating and storage: 35~85%RH (non-condensing)
    Protection grade IP50 & IP65
    Cable length 1M
    Shell aluminum
    package Carton box
    Net weight About 190g (with package)
    Certification CE



    Our advantage

    • Over 18 years encoder production experience
    • More than 20 years experienced engineers
    • Professional working team
    • High quality standard
    • Quick Response time
    • Utility Model Patent Certificate
    • Own brand and unique brand
    • CE certification for all models
    • Prompt delivery date
