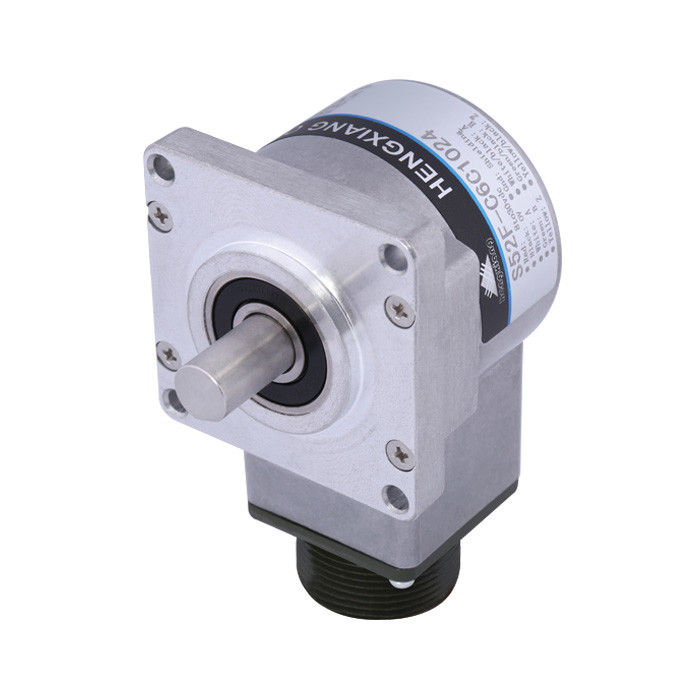

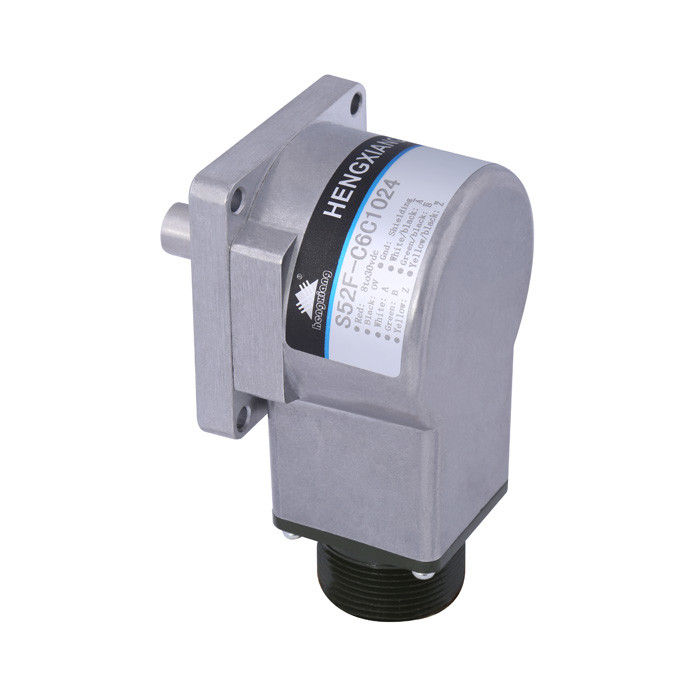

S52F Solid Shaft Encoder 1200 Resolution Totem Pole Output With Square Flange

S52F Solid Shaft Encoder 1200 Resolution Totem Pole Output With Square Flange

  • S52F Solid Shaft Encoder 1200 Resolution Totem Pole Output With Square Flange
  • S52F Solid Shaft Encoder 1200 Resolution Totem Pole Output With Square Flange
S52F Solid Shaft Encoder 1200 Resolution Totem Pole Output With Square Flange
Product Details:
Place of Origin: Shanghai,China
Brand Name: HENGXIANG
Certification: CE,ISO9001
Model Number: S52F Incremental encoder
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs encoder to start order
Price: negotiable
Packaging Details: each 1 piece was packed into single carton box
Delivery Time: 3-5 working days for sample order, 7-15 working days for mass order
Payment Terms: D/A, D/P, T/T, Western Union, Credit Card, Master Card,Paypal, etc
Supply Ability: 100K pieces per year
Contact Now
Detailed Product Description
Brand: HENGXIANG Product Name: Incremental Encoder
External diameter: 52mm Solid Shaft diameter: 8mm(D Shape)
Output phase: Phase A+,B+,Z+,A-,B-,Z-,U+,V+,W+,U-,V-,W- Resolution: 50PPR-23040PPR
Allowable Ripple: ≤3%rms Net weight : About 300g (with Package)
High Light:

digital shaft encoder

,

push pull encoder

S52F solid shaft encoder 1200 resolution totem pole output optical encoder with square flange



Our advantage

  • Over 18 years encoder production experience
  • More than 20 years experienced engineers
  • Professional working team
  • High quality standard
  • Quick Response time
  • Utility Model Patent Certificate
  • Own brand and unique brand
  • CE certification for all models
  • Prompt delivery date
  • 100% full inspection before shipment



Factory Encoder Production Capability

5000 pieces per month

-------- Production Line Capacity

50000 pieces per year

--------Actual Units Produced (Previous Year)



Specification for S52F flange encoder

Items Basic parameters
Brand HENGXIANG
Encoder type Incremental encoder
External diameter 52mm
Thickness 44mm
Flange dimension 52mm x 52mm
Installation dimension 44mm x 44mm
Shaft length 16mm
Solid Shaft diameter 10mm(D shape)
Resolution 50;60;100;200;250;256;300;360;400;450;500;512;600;720;1000
1000;1024;1200;1250;1440;1800;2000;2048;2500;2880;3000;
  3600;4000;4096;5000;5760;8192;10000;11520;16384;20000; 23040
Output phase Phase A+,B+,Z+ , A- B- Z-
Protection grade IP50 ; IP65
Cable length 1M (cable length could be added appropriately by
  require, but it need payment individually)
Consumption current 100mA MAX
Top response frequency 300KHZ
Allowable ripple ≤3%rms
Load Voltage ≤DC30V
Insulation strength AC500V 60s
Insulation resistance 10MΩ
