ABZUVW Signal KN35 Micro Rotary Encoder , 1024 Ppr Non Contact Rotary Encoder

ABZUVW Signal KN35 Micro Rotary Encoder , 1024 Ppr Non Contact Rotary Encoder

  • High Light

    miniature optical encoder


    simple rotary encoder

  • Encoder Type
    Miniature Hollow Shaft Encoder
  • External diameter
  • Installation Dimension
    R13.5mm, R14.5mm, R20mm
  • Shaft Load
    Radial 30N; Axial 20N
  • Hollow Shaft Diameter
  • Insulation Strength
    AC500V 60s
  • Net weight
    About 100g (with Package)
  • Certification
  • Place of Origin
  • Brand Name
  • Certification
  • Model Number
    KN35 Hollow encoder
  • Minimum Order Quantity
    1pcs encoder to start order
  • Price
  • Packaging Details
    each 1 piece was packed into single carton box
  • Delivery Time
    3-5 working days for sample order, 7-15 working days for mass order
  • Payment Terms
    D/A, D/P, T/T, Western Union, Credit Card, Master Card,Paypal, etc
  • Supply Ability
    100K pieces per year

ABZUVW Signal KN35 Micro Rotary Encoder , 1024 Ppr Non Contact Rotary Encoder

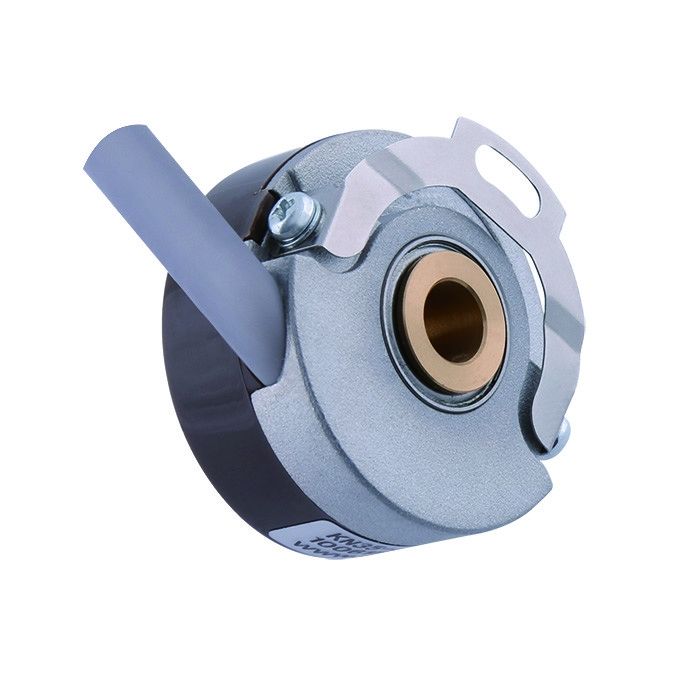

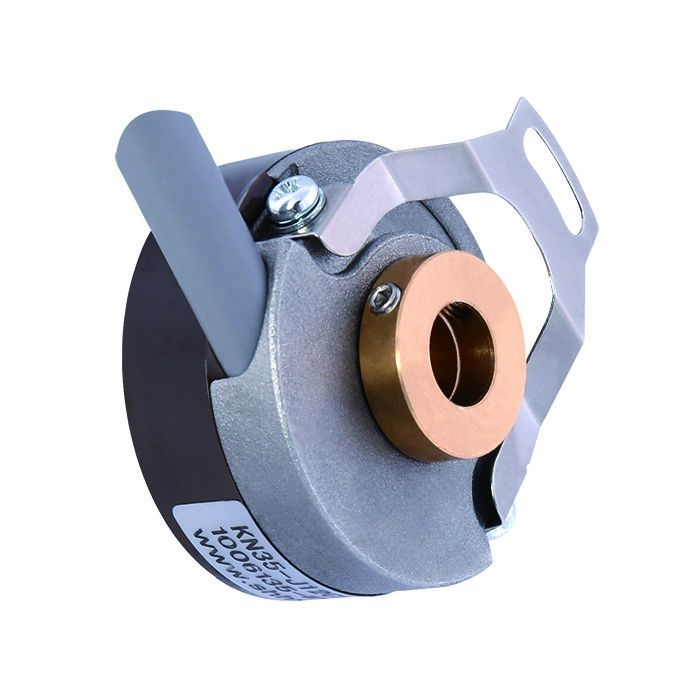

ABZUVW signal KN35 micro rotary encoder hollow shaft 6mm diameter 35mm 1024ppr non contact rotary encoder


Feather of KN35 rotary encoder

Protection grade: IP40

Cable length: 500mm

Consumption current: 100mA MAX
Top response frequency: 300KHZ

Allowable ripple:≤3%rms

Load Voltage:≤DC30V

Insulation resistance:10MΩ

Installation dimension:R13.5mm, R14.5mm, R20mm


Our advantage

  • Over 18 years encoder production experience
  • More than 20 years experienced engineers
  • Utility Model Patent Certificate
  • Own brand and unique brand
  • CE certification for all models
  • 100% full inspection before shipment
  • Customers from about 200 countries
  • IS09001:2015 Certification



  • Petrochemical industry
  • DC servo motor
  • Stock driver
  • PMDC geared motor
  • Brushless dc motor
  • Servo motor
  • Leather machine
  • Paper equipment
  • Industrial machinery
  • Paper cutter
  • CNC machine tool
  • Automatic measurement
  • Remote control


Characteristics for KN35 servo motor encoder

Items Basic parameters
Encoder type Incremental encoder
Resolution 1024;2048;2500;3600;5000;7200;10000;14400
Output phase Phase A+,B+,Z+,A-,B-,Z-,U+,V+,W+,U-,V-,W-
Supply voltage DC5V ; DC8--30V
Outlet type Cable out from side
Output mode NPN/PNP(Open Collector Output)
  Voltage output
  Push-pull output
  line drive (26LS31) TTL
  line drive(DC8-30V) HTL
  TTL(DC5V) phase ABZ are back of phase UVW
Shaft load Radial 30N; Axial 20N
Slew speed 5000RPM
Bearing life 1.5x109 revs at rated load(100000hrs at 2500RPM)
Environmental temperature Operating:-20 ~+100°C;storage:-25 ~+100°C
Environmental humidity Operating and storage: 35-85%RH(noncondensing)
Vibration(endure) Amplitude 0.75mm,5-55Hz,2 hours for three axis individually
Sock(endure) 490m/s2 ,11 ms three times for X,Y,Z direction individually
Shell Material die cast aluminum
Certification CE



ABZUVW Signal KN35 Micro Rotary Encoder , 1024 Ppr Non Contact Rotary Encoder 0

Questions before ordering

Q: What’s your MOQ?

A: 1pcs

Q: How to order your encoder?

A: Contact us, or email us, we will reply you as soon as possible.

Q: Are you a factory or a trading company?

A: we are 100% factory with our brand.

Q: What’s your brand?


Q: Where is your factory?

A: Our factory is located on Shanghai City.

Q: Can I pay a visit to your factory?

A: Yes, you we welcome to visit our factory at any time if convenient.

Q: How long is your delivery time?

A: Usually 3 working days for sample, 7-15 days for mass production,

The production date is according to order quantity

Q: Can your encoder be customized?

A: Yes, our encoder can be customized according to your requirements,

Q: Do you test your encoder product before shipment?

A: Yes, we 100% test and examine every piece before shipping to make sure it work well on your device.
