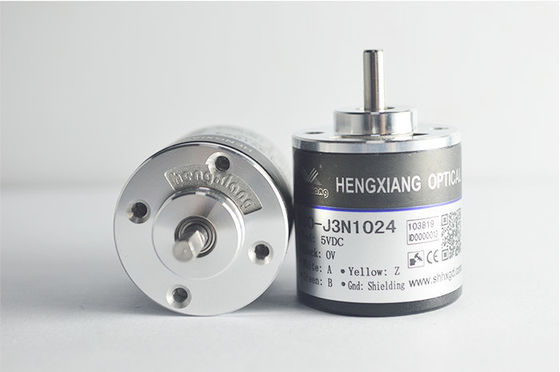

1200 Resolution Miniature Optical Encoder , S30 Small Rotary Encoder Solid Shaft 4mm

1200 Resolution Miniature Optical Encoder , S30 Small Rotary Encoder Solid Shaft 4mm

  • High Light

    small rotary encoder


    miniature optical encoder

  • External diameter
  • Cable length
  • Resolution
  • Consumption Current
    100mA Max
  • Insulation Strength
    AC500V 60s
  • Supply voltage
    DC5V : DC8-30V
  • Net weight
    60g (with Package)
  • Place of Origin
    Shanghai, China
  • Brand Name
  • Certification
  • Model Number
    S30 shaft encoder
  • Minimum Order Quantity
    1pcs encoder to start order
  • Price
  • Packaging Details
    each 1 piece was packed into single carton box
  • Delivery Time
    3-5 working days for sample order, 7-15 working days for mass order
  • Payment Terms
    D/A, D/P, T/T, Western Union, Credit Card, Master Card,Paypal, etc
  • Supply Ability
    100K pieces per year

1200 Resolution Miniature Optical Encoder , S30 Small Rotary Encoder Solid Shaft 4mm

Miniature rotary encoder S30 1200 resolution open-collector output solid shaft 4mm


Notice for encoder installation

1. Please read the encoder specification carefully before installation

2. Encoder is belong to precision instrument, so we should avoid shock or vibration to protect interior parts.

3. The power supply voltage must be holded within specified range, or encoder could be destroyed.

4. Notice coaxially requirements when you install the power shaft, please use flexible coupling and do not press encoder forcibly.

5. Shielding cable of encoder must be connected to avoid electromagnetism interference of alternating current, cables of encoder should be layout individually.

6. Wiring diagram connection should be strictly follow the specified color in catalogue, or encoder interior circuit may be destroyed

7. Encoder should be apart from powerful magnetic field, dust, oil, water, higher (lower) temperature and caustic or flammable material during working.

8. The encoder cable signal can’t be drew or bent forcibly.


1200 Resolution Miniature Optical Encoder , S30 Small Rotary Encoder Solid Shaft 4mm 0


Quick description of S30 series encoder

Cable length: 1000mm

Shell : Die cast aluminum

Consumption current: 100mA Max

Shaft Load: Radiel: 10N; Axial:5N

Slew Speed: 5000rpm

Insulation strength: AC500V 60s

Insulation resistance: 10MΩ

Shaft diameter: 4mm(D type)


Parameter table

Items Basic parameters
External dimensions External diameter: 30mm
Thickness: 30mm
Shaft diameter: 4mm(D type)
Encoder type Incremental encoder
Resolution 20;25;36;50;60;100;200;250;256;300;360;400;500;512;600;
Output phase Phase A,B,Z,A-,B-,Z-
Supply voltage DC5V : DC8-30V
Outlet type Cable out from side
Cable out from back
Output mode NPN&PNP
Voltage output
Push-pull output
Difference output(TTL,HTL,RS422)
Environmental temperature Operating temperature: -20~+80° (Non icing)
Storage temperature: -25~+85° (Non icing)
Environmental humanity Operating and storage: 35~85%RH (non-condensing)
Shaft Material Stainless steel
Vibration(endure) Amplitude 0.75mm,10-55Hz,1 hour for X/Y/Z direction individually
Shock(endure) 49/m/s2,three times for X,Y,Z direction individually
package Carton box
Net weight 60g (with package)
Certification CE



  • Petrochemical industry
  • Gearbox
  • DC garage door motor
  • DC servo motor
  • Stock driver
  • PMDC geared motor
  • Brushless dc motor
  • Servo motor
  • CNC machine tool
  • Automatic measurement
  • Remote control
