Solid Shaft 4mm Miniature Rotary Encoder , Simple Rotary Encoder S25 With 6mm Coupling

Solid Shaft 4mm Miniature Rotary Encoder , Simple Rotary Encoder S25 With 6mm Coupling

  • Solid Shaft 4mm Miniature Rotary Encoder , Simple Rotary Encoder S25 With 6mm Coupling
  • Solid Shaft 4mm Miniature Rotary Encoder , Simple Rotary Encoder S25 With 6mm Coupling
Solid Shaft 4mm Miniature Rotary Encoder , Simple Rotary Encoder S25 With 6mm Coupling
Product Details:
Place of Origin: Shanghai, China
Brand Name: HENGXIANG
Certification: CE,ISO9001
Model Number: S25 simple rotary encoder
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs encoder to start order
Price: negotiable
Packaging Details: each 1 piece was packed into single carton box
Delivery Time: 3-5 working days for sample order, 7-15 working days for mass order
Payment Terms: D/A, D/P, T/T, Western Union, Credit Card, Master Card,Paypal, etc
Supply Ability: 100K pieces per year
Contact Now
Detailed Product Description
Shaft Load: Radiel: 10N; Axial:5N Thickness: 30mm
Insulation Strength: AC500V 60s Encoder Type: Incremental Encoder
External diameter: 25mm Solid Shaft diameter: 4mm(D Shape)
Slew Speed: 5000RPM Net weight: 50g (with Package)
High Light:

small rotary encoder

,

simple rotary encoder

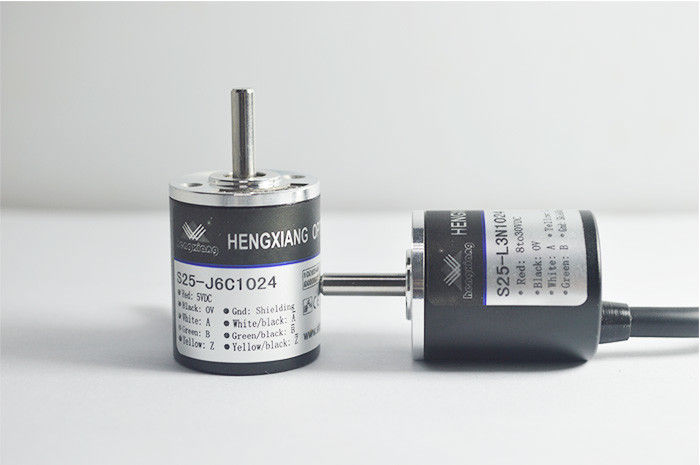

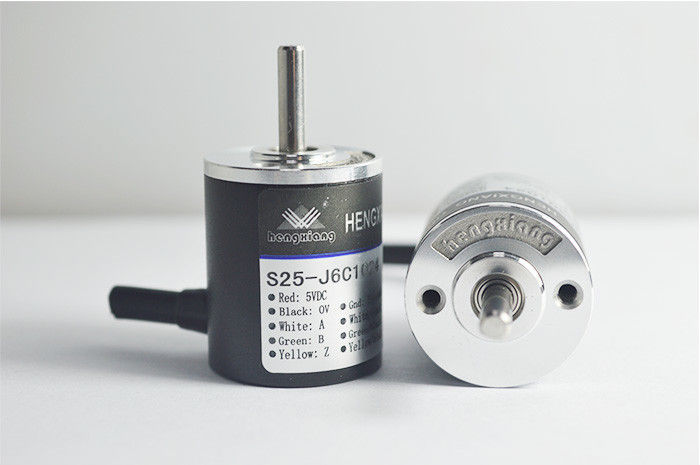

Installation size 18mm solid shaft 4mm simple rotary encoder S25 miniature rotary encoder 8-30VDC with 6mm coupling



About Our Factory

  • Own brand of "HENGXIANG" encoder
  • Has ISO9001:2000 Quality Management System Certificate and CE Certification
  • Invention patents five and utility model patents five
  • Passed Shanghai New and High-tech Achievements Transformation Project.
  • Our target: Meeting Client's Requirement,Creating Social value,serving clients attentively and Achieving win-win.
  • Located in Shanghai city
  • 20-30 experienced workers
  •
Items Basic parameters
External dimensions External diameter: 25mm
Thickness: 30mm
Solid shaft diameter: 4mm(D shape)
Encoder type Incremental encoder
Resolution 20;25;36;50;60;100;200;250;256;300;360;400;500;512
600;625;720;1000;1024;1200;1250;1440;2000;2048;2500
Output phase Phase A,B,Z,A-,B-,Z-
Supply voltage DC5V; DC8-30V
GND not connect to encoder
Slew Speed 5000rpm
Insulation strength AC500V 60s
Insulation resistance 10MΩ
Mark to Space ratio 45% to 55%
Top response Frequency 100kHz Max
Shell Material die cast aluminum
Bearing life 1.5x109 revs at rated load(100000hrs at 2500RPM)
Shaft Material Stainless steel
Vibration(endure) Amplitude 0.75mm,10-55Hz,1 hour for X/Y/Z direction individually
Shock(endure) 49/m/s2,three times for X,Y,Z direction individually
package Carton box
Net weight 50g (with package)
Certification CE



Matters needing attention

1. Must choose the power supply voltage: DC5V or DC8-30V

2. Must choose leaf spring plate model number if you select hollow shaft encoder

3. Please advise the motor speed (RPM) that you actually use

4. If you have any other requirements, please provide detail parameters



Production date

1. for 1-10 samples: 3-5 working days

2. for 20-50 mass production: 7-10 working days

3. for over 100pcs, production will be discussed with customers and ship on time



Solid Shaft 4mm Miniature Rotary Encoder , Simple Rotary Encoder S25 With 6mm Coupling 0



Applications

  • Stock driver
  • PMDC geared motor
  • Brushless dc motor
  • Servo motor
  • Drawing machine
  • VFD
  • Inverter
  • Variable frequency driver
  • Embroidery machine
  • Elevator
  • Printing machinery
  • Projector
  • Paper equipment
  • Industrial machinery


Some Related S25 encoder model number

S25-J3N36 DC5V

S25-J3F50 DC12V

S25-L1V60 DC24V

S25-L1F200DC5-12V

S25-J4C250 DC5V

S25-J4E1200 DC8-30V

S25-L6E2048 DC12-24V

S25-L6C1440 DC4.5V





More information
