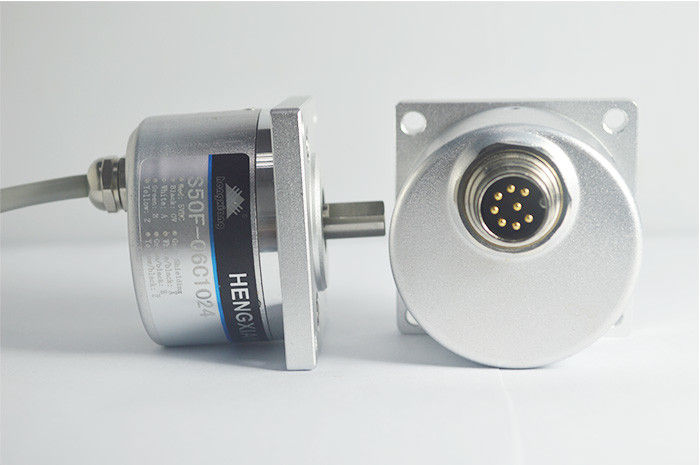

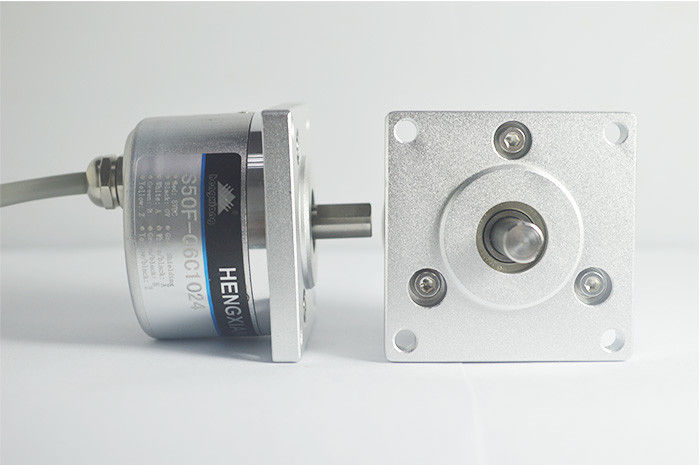

5000 Resolution Pulse 4096 Encoder , S50F Optical Quadrature Encoder With Flange

5000 Resolution Pulse 4096 Encoder , S50F Optical Quadrature Encoder With Flange

  • 5000 Resolution Pulse 4096 Encoder , S50F Optical Quadrature Encoder With Flange
  • 5000 Resolution Pulse 4096 Encoder , S50F Optical Quadrature Encoder With Flange
5000 Resolution Pulse 4096 Encoder , S50F Optical Quadrature Encoder With Flange
Product Details:
Place of Origin: Shanghai, China
Brand Name: HENGXIANG
Certification: CE,ISO9001
Model Number: S50F incremental encoder
Payment & Shipping Terms:
Minimum Order Quantity: can be 1pcs encoder first to start order
Price: negotiable
Packaging Details: each 1 piece was packed into single carton box
Delivery Time: 3-5 working days for sample order, 7-15 working days for mass order
Payment Terms: D/A, D/P, T/T, Western Union, Credit Card, Master Card,Paypal, etc
Supply Ability: 100K pieces per year
Contact Now
Detailed Product Description
Encoder Type: S50F Incremental Encoder Shaft Length: 13.3mm
Circuit Output: NPN,PNP,HTL,TTL, Voltage Ouput Protection Level: IP50 ; IP65
Top Response Frequency: 300KHZ Mark To Space Ratio: 45% To 55%
Output Signal: NPN,PNP,HTL,TTL, Voltage Ouput Consumption Current: 100mA MAX
High Light:

stepper motor rotary encoder

,

2048 pulse encoder

S50F optical quadrature encoder with flange 4096 pulse 5000 resolution per minute shaft 8mm



Video of Encoder products

There are plenty of encoder video if you still have any doubts on encoder, please email us directly or contact online service right now.

At the same time, you could also visit our YOUTUBY page easily.

Most of the encoder series have videos for reference.



Matters needing attention

1. Must choose the power supply voltage: DC5V or DC8-30V

2. Must choose leaf spring plate model number if you select hollow shaft encoder

3. Please advise the motor speed (RPM) that you actually use

4. If you have any other requirements, please provide detail parameters



5000 Resolution Pulse 4096 Encoder , S50F Optical Quadrature Encoder With Flange 0



Shipment

Goods can shipped via TNT, FedEx, UPS, DHL, EMS, etc.

You could select the express according to your requirements if freight collector

If you do not have any courier account, we will check and find a cheapest and safety express for you.

Our factory has 30% discount with most courier company, so price could be as cheap as possible.



About Our Factory

  • Own brand of "HENGXIANG" encoder
  • Has ISO9001:2000 Quality Management System Certificate and CE Certification
  • Invention patents five and utility model patents five
  • Passed Shanghai New and High-tech Achievements Transformation Project.
  • Our target: Meeting Client's Requirement,Creating Social value,serving clients attentively and Achieving win-win.
  • Located in Shanghai city
  • 20-30 experienced workers



S50F Series Product Description



Items Basic parameters
Brand HENGXIANG
Encoder type Incremental encoder
External diameter 50mm
Thickness 35.7mm
Flange dimension 52mm x 52mm
Installation dimension 43mm x 43mm
Shaft length 13.3mm
Solid Shaft diameter 8mm(D shape)
Resolution 50;60;100;200;250;256;300;360;400;450;500;512;600;720;1000
1000;1024;1200;1250;1440;1800;2000;2048;2500;2880;3000;
  3600;4000;4096;5000;5760;8192;10000;11520;16384;20000; 23040
Output phase Phase A,B,Z or A- B- Z-
Supply voltage DC5V ; DC8-30V
Outlet type Cable out from side
Cable out from back
Socket out from back
Output mode NPN&PNP
Voltage output
Push-pull output
Difference output(TTL,HTL,RS422)
Protection grade IP50 ; IP65
Cable length 1M (cable length could be added appropriately by
require, but it need payment individually)
Consumption current 100mA MAX
Top response frequency 300KHZ
Allowable ripple ≤3%rms
Load Voltage ≤DC30V
GND not connect to encoder
Mark to Space ratio 45% to 55%
starting torque less than 5 x 10-3 N.m
Intertia moment less than 3x 10-6kg.m2
Shaft load Radial 40N; Axial 20N



Reference encoder model no. for S50F type

S50F-T1N256

S50F-Q6C250

S50F-D4C200

S50F-T3PH100

S50F-Q2F60

S50F-D1N50

S50F-Q4E3600

S50F-D3N3000
