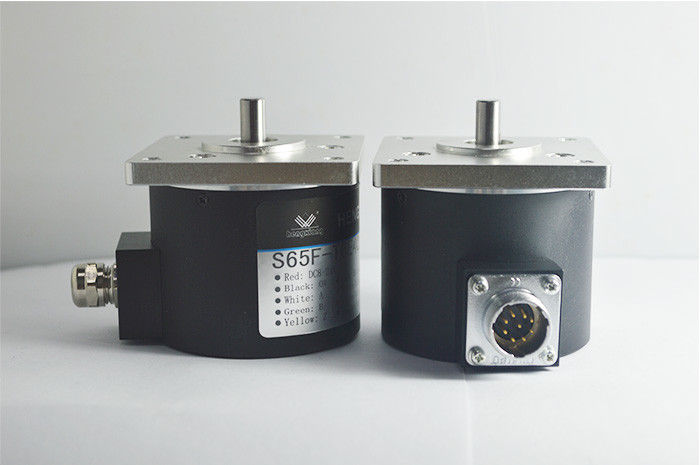

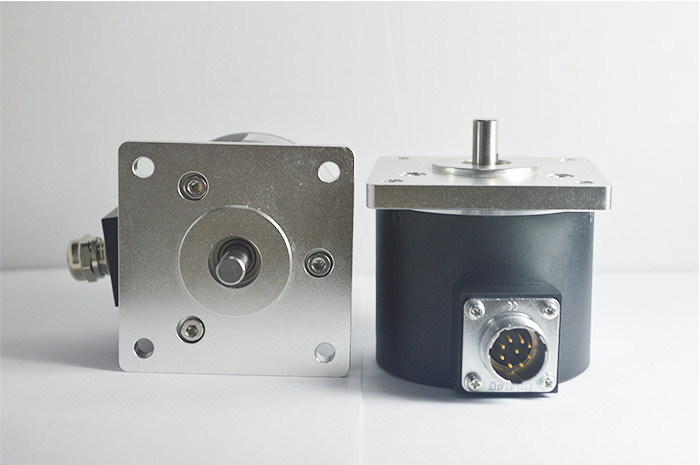

S65F Solid Shaft Encoder Shaft 8mm Flange Totem Pole 6 Phase Socket Outlet From Side

S65F Solid Shaft Encoder Shaft 8mm Flange Totem Pole 6 Phase Socket Outlet From Side

  • S65F Solid Shaft Encoder Shaft 8mm Flange Totem Pole 6 Phase Socket Outlet From Side
  • S65F Solid Shaft Encoder Shaft 8mm Flange Totem Pole 6 Phase Socket Outlet From Side
S65F Solid Shaft Encoder Shaft 8mm Flange Totem Pole 6 Phase Socket Outlet From Side
Product Details:
Place of Origin: Shanghai,China
Brand Name: HENGXIANG
Certification: CE,ISO9001
Model Number: S65F solid shaft encoder
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs encoder to start order
Price: negotiable
Packaging Details: each 1 piece was packed into single carton box
Delivery Time: 3-5 working days for sample order, 7-15 working days for mass order
Payment Terms: D/A, D/P, T/T, Western Union, Credit Card, Master Card,Paypal, etc
Supply Ability: 100K pieces per year
Contact Now
Detailed Product Description
Shaft diameter:: 8mm Model: Solid Shaft Encoder
External diameter: 65mm Pulse: 50PPR-23040PPR
Circuit Singla: NPN,PNP,TTL,HTL,Voltage Shell : Aluminum
Flange Size: Flange:67*67*7mm Consumption Current: 100mA MAX
High Light:

stepper motor rotary encoder

,

optical sensor encoder

S65F solid shaft encoder shaft 8mm flange encoder totem pole 6 phase socket outlet from side



Key Features of S65F series encoder:

External diameter: 65mm

Thickness: 52.5mm

Installation Size:48mm

Flange:67*67*7mm

Shaft diameter: 8mm

Storage temperature: -25~+85° (Non icing)

Operating and storage: 35~85%RH (non-condensing)

Shell : aluminum

Top REV: 5000RPM ;IP65≤3000 RPM



S65F Solid Shaft Encoder Shaft 8mm Flange Totem Pole 6 Phase Socket Outlet From Side 0



       Connecting Coupling:

There are some applications that you may need to use a coupling to connect encoder to the motor shaft, there’re a few tips to select a coupling type

1 you need to consider the magnitude and nature of the required transmitted torque, the requirements for buffering and damping functions, and whether resonance may occur.

2 you also need to think about the degree of relative displacement of the two axis axes caused by manufacturing and assembly errors, shaft loading and thermal expansion deformation, and relative motion between components.

3 regarding the applicable dimensions and installation methods, in order to facilitate the assembly, adjustment and maintenance of the necessary operating space. For large couplings, it should be possible to disassemble the shaft without axial movement.

4. In addition, consideration should be given to the working environment, service life, and lubrication, sealing, and economic conditions. Refer to the various coupling characteristics and choose a suitable coupling type.

5. Here are some coupling part number, please carefully check before ordering.

4H4

6H6

6H8

8H8

8H10

6M6

6M8

8M8

8M10



Production Catalogue

If you have already selected the encoder model you are going to order, please email us directly or contact online service right now to get the latest catalogue.

But if you are still have any doubts on choosing a right encoder model number, you are also free to contact us to get the related catalogue.



Product Basis information of S65F Series encoder

Items Basic parameters
External dimensions External diameter: 65mm,Thickness: 57mm
Installation Size:48mm, Flange:67*67*7mm
Shaft diameter: 8mm
Resolution 50;60;100;200;250;256;300;360;400;450;500;512;600;
720;1000;1024;1200;1250;1440;1800;2000;2048;2500
;2880;3000;3600;4000;4096;5000;5760;8192;10000;
11520;16384;20000; 23040
Output phase Phase A,B,Z or A- B- Z-
Consumption current 100mA MAX
Top response frequency 300KHZ
Allowable ripple ≤3%rms
Load Voltage ≤DC30V
Insulation strength AC500V 60s
Insulation resistance 10MΩ
GND not connect to encoder
Mark to Space ratio 45% to 55%
starting torque less than 5x 10-3 N.m
Intertia moment less than 3x 10-6kg.m2
Shaft load Radial 30N; Axial 20N
Top REV 5000RPM ;IP65≤3000 RPM
Sock(endure) 490m/s2 ,11 ms three times for X,Y,Z direction individually
Bearing life 1.5x109 revs at rated load(100000hrs at 2500RPM)
Protection grade IP50 & IP65
Cable length 1M
Shell aluminum
package Carton box



Production date

3-5 working days for sample after full paid

7-15 days for mass production after full paid
