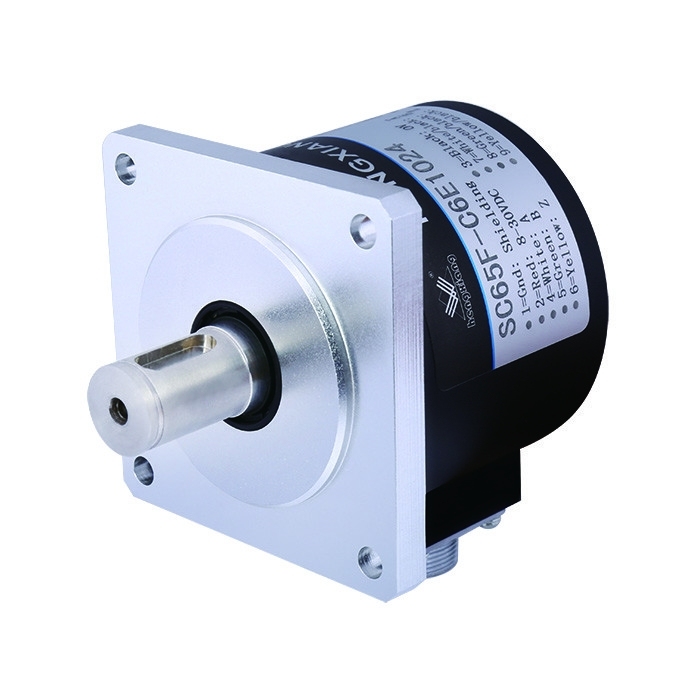

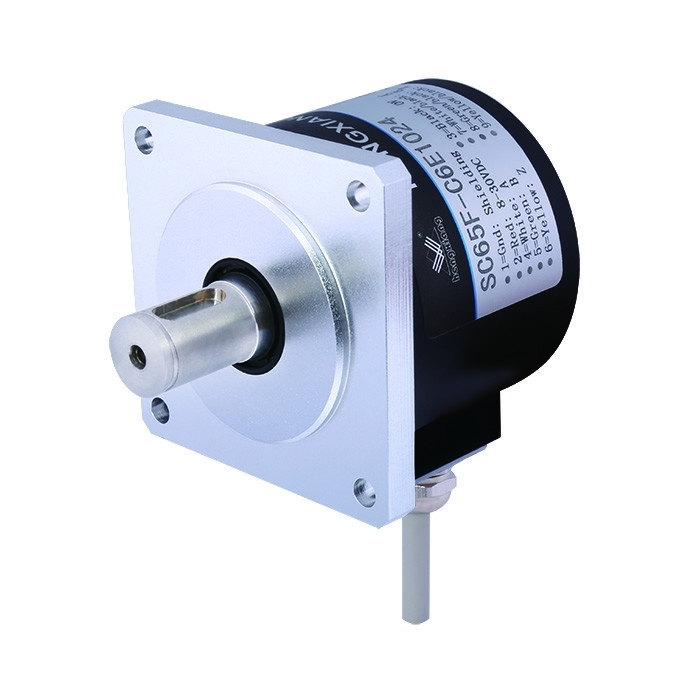

SC65F Flange Encoder External Diameter 65mm Shaft 15mm With 5 * 5mm Keyway Radial Socket

SC65F Flange Encoder External Diameter 65mm Shaft 15mm With 5 * 5mm Keyway Radial Socket

  • SC65F Flange Encoder External Diameter 65mm Shaft 15mm With 5 * 5mm Keyway Radial Socket
  • SC65F Flange Encoder External Diameter 65mm Shaft 15mm With 5 * 5mm Keyway Radial Socket
SC65F Flange Encoder External Diameter 65mm Shaft 15mm With 5 * 5mm Keyway Radial Socket
Product Details:
Place of Origin: Shanghai,China
Brand Name: HENGXIANG
Certification: CE,ISO9001
Model Number: SC65F Series flange encoder
Payment & Shipping Terms:
Minimum Order Quantity: could be 1pcs encoder to start order first
Price: negotiable
Packaging Details: each 1 piece was packed into single carton box
Delivery Time: 3-5 working days for sample order, 7-15 working days for mass order
Payment Terms: D/A, D/P, T/T, Western Union, Credit Card, Master Card,Paypal, etc
Supply Ability: 100K pieces per year
Contact Now
Detailed Product Description
Kaywords: SC65F Series Flange Encoder Solid Shaft diameter: 15mm( KEYWAY 5mm)
Shaft Length: 26mm Pulse: 50PPR-23040PPR
Starting Torque: Less Than 80 X 10-3 N.m Intertia Moment: Less Than 100x 10-6kg.m2
Supply voltage: DC5V ; DC8-30V Weight : About 590g
High Light:

stepper motor rotary encoder

,

optical sensor encoder

SC65F flange encoder external diameter 65mm shaft 15mm with 5*5mm keyway radial socket



Part Number of SC65F to select

SC65F-T3PH2880D

SC65F-C2V2500D

SC65F-T1F2048

SC65F-C6E2000

SC65F-T4C1440D

SC65F-C3VL1200

SC65F-T2P1000D

SC65F-C1F1024

SC65F-C1F4096

SC65F-T6E3600D



SC65F Series encoder Product introduction

Items Basic parameters
Brand HENGXIANG
Encoder type Incremental encoder
External diameter 65mm
Thickness 58mm
Flange dimension 68mm x 68mm
Installation dimension 56mm x 56mm
Shaft length 26mm
Solid Shaft diameter 15mm( KEYWAY 5mm)
Resolution 50;60;100;200;250;256;300;360;400;450;500;512;600;720;1000
1000;1024;1200;1250;1440;1800;2000;2048;2500;2880;3000;
  3600;4000;4096;5000;5760;8192;10000;11520;16384;20000; 23040
Output phase Phase A+,B+,Z+,A- B- Z-
Supply voltage DC5V ; DC8-30V
Outlet type Radial cable
Radial socket
  NPN/PNP(Open Collector Output)
  Voltage output
Output mode Push-pull output
  line drive (26LS31) TTL
  line drive(DC8-30V) HTL
Protection grade IP50 ; IP65



Factory Encoder Production Capability

5000 pieces per month

-------- Production Line Capacity

50000 pieces per year

--------Actual Units Produced (Previous Year)



Why choose us?

HENGXIANG brand--The trustworthy partner
CE approved--advantaged product quality;
Fast delivery--strong stock product ability;

Factory directly provide a competitive price;
One-stop service--for your efficient purchasing experience;

OEM design accepted--customized design, your own brand accepted.



Delivery date

3-5 working days for sample after full paid

7-15 days for mass production after full paid



SC65F Flange Encoder External Diameter 65mm Shaft 15mm With 5 * 5mm Keyway Radial Socket 0



Usage of SC65F rotary encoder

  • Pharmaceutical machine
  • VVVF motor
  • DC motor
  • Stepper motor
  • Servo motion controller
  • Gearbox
  • DC garage door motor
  • DC servo motor
  • Stock driver
  • PMDC geared motor
  • Brushless dc motor
  • Servo motor
  • Drawing machine
  • VFD
  • Inverter
  • Variable frequency driver
  • Embroidery machine
  • Elevator
  • Printing machinery





Matters needing attention

1. Must choose the power supply voltage: DC5V or DC8-30V

2. Must choose leaf spring plate model number if you select hollow shaft encoder

3. Please advise the motor speed (RPM) that you actually use

4. If you have any other requirements, please provide detail parameters
