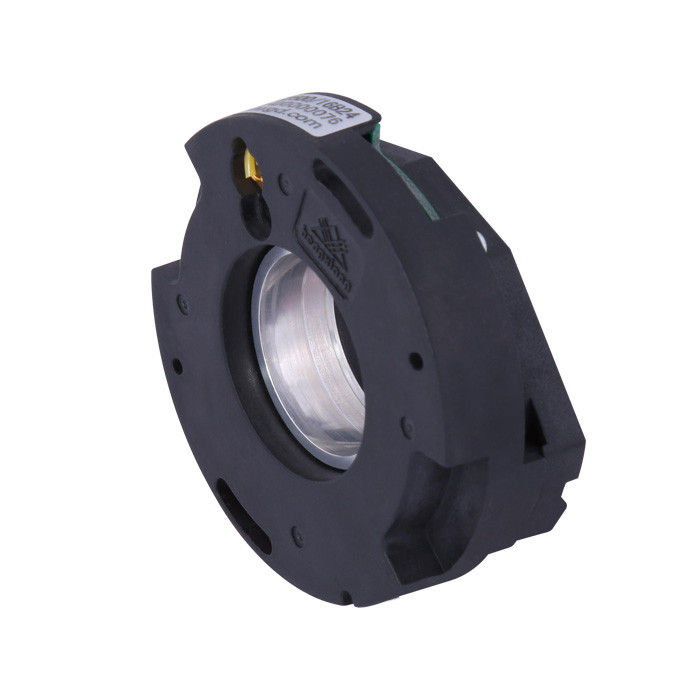

Bearingless Servo Motor Shaft Encoder , Through Hole Electric Motor Encoder
-
High Light
precision rotary encoder
,servo motor encoder
-
BrandHENGXIANG
-
Shaft Diameter14mm;19mm;20mm;24mm;25mm
-
Thickness15mm
-
Resolution1024ppr(Min) To 10000ppr(Max)
-
Optional Supply VoltageDC5V & DC8-30V
-
Output ModeTTL,HTL
-
WeightAbout 85g (with Package)
-
Top Response Frequency300KHZ
-
Place of OriginShanghai,China
-
Brand NameHENGXIANG
-
CertificationCE,ISO9001
-
Model NumberZ58-J Bearingless encoder
-
Minimum Order Quantity1pcs encoder to start order
-
Pricenegotiable
-
Packaging Detailseach 1 piece was packed into single carton box
-
Delivery Time3-5 working days for sample order, 7-15 working days for mass order
-
Payment TermsD/A, D/P, T/T, Western Union, Credit Card, Master Card,Paypal, etc
-
Supply Ability100K pieces per year
Bearingless Servo Motor Shaft Encoder , Through Hole Electric Motor Encoder
Z58 through hole Bearingless encoder diameter of shaft 24mm thickness 15mm for servo motor
About Encoder Vibration
Vibration acting on an encoder always cause wrong pulse easily.
So we have to pay more attention to encoder working place.
The more pulse per round, the narrower groovy spacing of grating, ore effect to encoder by vibration, when motor speed is low or even stopped, vibration acting on encoder shaft or encoder shell would cause grating vibration, in this way, encoder might show wrong pulse signal.
Our Service
- Quick response once received customer’s quotation query
- Professional engineer team, to solve your problems at any time
- Strictly inspection before shipment
- Various encoder models to be selected
- Short lead time
- High quality standard
Product Description of Z58 Series
| Items | Basic parameters |
| Brand | HENGXIANG |
| Encoder type | bearingless encoder |
| External diameter | 58mm |
| Thickness | 15mm |
| Hollow shaft type | through hole |
| Hollow shaft diameter | 14mm;19mm;20mm;24mm;25mm |
| Resolution | 1024/8;1024/10;1024/16；2048/6；2048/8;2048/10；2500/8； |
| 2500/164096/8;4096/10/;4096/16;5000/8;5000/10; | |
| 5000/16;10000/8;10000/10;10000/16 | |
| Output phase | Phase A+,B+,Z+,A-,B-,Z-,U+,V+,W+,U-,V-,W- |
| Supply voltage | DC5V ; DC8--30V |
| Outlet type | Cable out from side |
| Output mode | line drive (26LS31) TTL |
| line drive(DC8-30V) HTL | |
| Cable length | 300mm |
| Consumption current | 120mA MAX |
| Top response frequency | 300KHZ |
| GND | not connect to encoder |
| Slew speed | 5000RPM |
| Environmental temperature | Operating:-20 ～+80°；storage:-25 ～+90° |
| Environmental humidity | Operating and storage: 35-85%RH(noncondensing) |
| Material | aluminum alloy |
| Certification | CE |
| package | Carton box |
| Net weight | About 85g (with package) |
Z58 Series Application
- Oil and gas industry
- FFS machine
- VFFS machine
- Packing machinery
- Capsule filling machine
- Pharmaceutical machine
- VVVF motor
- DC motor
- Stepper motor
- Servo motion controller
- Gearbox
- DC garage door motor
- DC servo motor
- Stock driver
- PMDC geared motor
- Brushless dc motor
- Servo motor
- Drawing machine
Notice for encoder installation
1. Please read the encoder specification carefully before installation
2. Encoder is belong to precision instrument, so we should avoid shock or vibration to protect interior parts.
3. The power supply voltage must be holded within specified range, or encoder could be destroyed.
4. Notice coaxially requirements when you install the power shaft, please use flexible coupling and do not press encoder forcibly.
5. Shielding cable of encoder must be connected to avoid electromagnetism interference of alternating current, cables of encoder should be layout individually.
6. Wiring diagram connection should be strictly follow the specified color in catalogue, or encoder interior circuit may be destroyed
7. Encoder should be apart from powerful magnetic field, dust, oil, water, higher (lower) temperature and caustic or flammable material during working.
8. The encoder cable signal can’t be drew or bent forcibly.
