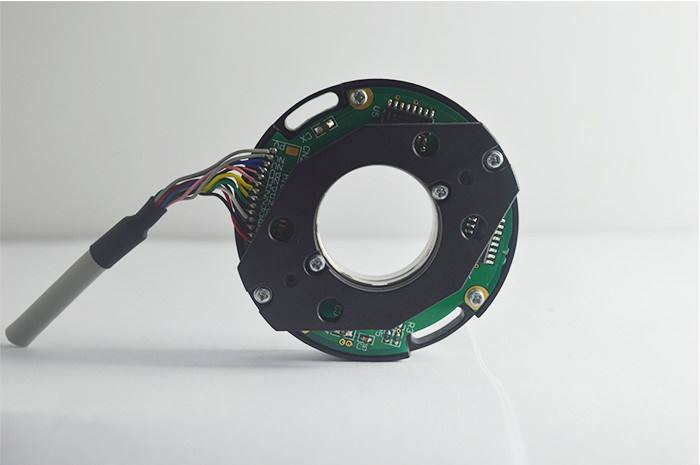

300mm Cable Length Bearingless Encoder With Flexible Flat Cable TTL Output

300mm Cable Length Bearingless Encoder With Flexible Flat Cable TTL Output

  • 300mm Cable Length Bearingless Encoder With Flexible Flat Cable TTL Output
  • 300mm Cable Length Bearingless Encoder With Flexible Flat Cable TTL Output
300mm Cable Length Bearingless Encoder With Flexible Flat Cable TTL Output
Product Details:
Place of Origin: Shanghai,China
Brand Name: HENGXIANG
Certification: CE,ISO9001
Model Number: Z58-J Bearingless encoder
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs encoder to start order
Price: negotiable
Packaging Details: each 1 piece was packed into single carton box
Delivery Time: 3-5 working days for sample order, 7-15 working days for mass order
Payment Terms: D/A, D/P, T/T, Western Union, Credit Card, Master Card,Paypal, etc
Supply Ability: 100K pieces per year
Contact Now
Detailed Product Description
Brand: HENGXIANG Shaft Diameter: 14mm;19mm;20mm;24mm;25mm
Consumption Current: 120mA MAX Resolution: 1024ppr(Min) To 10000ppr(Max)
Optional Supply Voltage: DC5V & DC8-30V Outlet Type: Cable Out From Side
Weight: About 85g (with Package) Cable length: 300mm
High Light:

hollow shaft encoder

,

servo motor encoder

Bearingless encoder Z58 series incremental rotary encoder with flexible flat cable TTL output



Signal Circuit of encoder

1. The NPN Open Collector -- The NPN Open Collector(NPN) is an interface based on an output circuit with an NPN transistor.

An open collector is the unconnected collector connection of an NPN transistor, whose emitter is connected to earth and whose collector is connected to the output.

2. PNP output

The PNP output is an interface based on an output circuit with a PNP transistor.

3. Push-Pull output(HTL)

High Voltage Transistor Logic functions with a voltage supply in the range 10 and 30 V DC, with 24 V DC being the most usual.

“Low” is defined as an output of between 0 V and 3 V and “high” as between VCC and VCC - 3.5 V.

4. TTL RS-422 output

In a transistor-transistor logic (TTL), both the logical status and the amplification are done by transistors, hence the name.

The TTL output is supplied with either a fixed 5 V voltage or a variable voltage of between 10 and 32 V. For this the low range is defined as the ≤ 0.4 V and the high range as ≥ 2.4 V.



Detail Specifications of Z58 Series

Items Basic parameters
Brand HENGXIANG
Encoder type bearingless encoder
External diameter 58mm
Thickness 15mm
Hollow shaft type through hole
Hollow shaft diameter 14mm;19mm;20mm;24mm;25mm
Resolution 1024/8;1024/10;1024/16;2048/6;2048/8;2048/10;2500/8;
2500/164096/8;4096/10/;4096/16;5000/8;5000/10;
5000/16;10000/8;10000/10;10000/16
Output phase Phase A+,B+,Z+,A-,B-,Z-,U+,V+,W+,U-,V-,W-
Supply voltage DC5V ; DC8--30V
Outlet type Cable out from side
Output mode line drive (26LS31) TTL
line drive(DC8-30V) HTL
Cable length 300mm
Consumption current 120mA MAX
Top response frequency 300KHZ
GND not connect to encoder
Slew speed 5000RPM
Environmental temperature Operating:-20 ~+80°;storage:-25 ~+90°
Environmental humidity Operating and storage: 35-85%RH(noncondensing)
Material aluminum alloy
Certification CE
package Carton box
Net weight About 85g (with package)



Why choose us?

HENGXIANG brand--The trustworthy partner
CE approved--advantaged product quality;
Fast delivery--strong stock product ability;

Factory directly provide a competitive price;
One-stop service--for your efficient purchasing experience;

OEM design accepted--customized design, your own brand accepted.



300mm Cable Length Bearingless Encoder With Flexible Flat Cable TTL Output 0



Part Number of Z58 Series

Z58-J12C1000/10B14

Z58-C12E1024/8B15

Z58-C12C2048/8B16

Z58-J12E1024/10B18

Z58-C12E2048/10B19

Z58-J12C1024/16B20

Z58- C12E2048/16B14

Z58-J12C2500/8B15

Z58- C12E4096/8B16

Z58- C12E5000/10B20

Z58- J12C10000/10B15

Z58- C12E5000/16B16

Z58- J12C10000/16B19



Lead time

3-5 working days for sample after full paid

7-15 days for mass production after full paid
