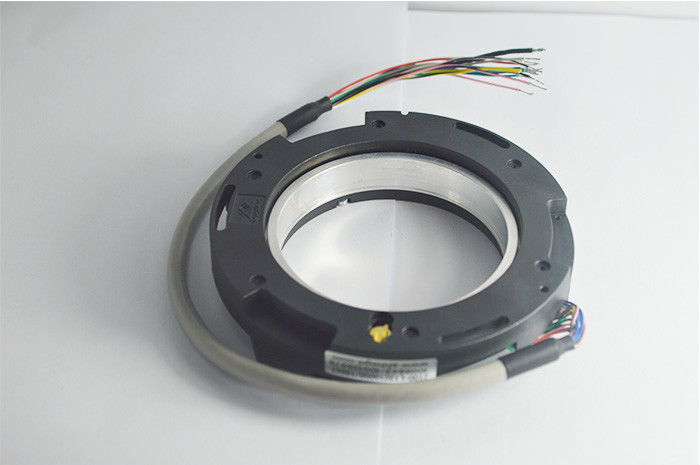

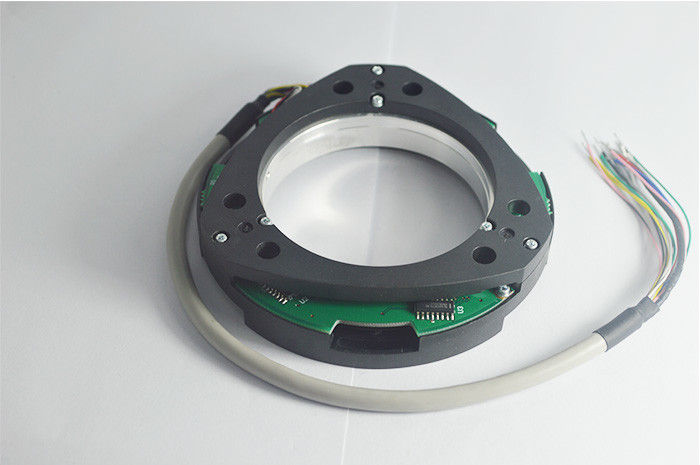

Ultra Thin Bearingless Precision Rotary Encoder Slew Speed 5000rpm

Ultra Thin Bearingless Precision Rotary Encoder Slew Speed 5000rpm

  • Ultra Thin Bearingless Precision Rotary Encoder Slew Speed 5000rpm
  • Ultra Thin Bearingless Precision Rotary Encoder Slew Speed 5000rpm
Ultra Thin Bearingless Precision Rotary Encoder Slew Speed 5000rpm
Product Details:
Place of Origin: Shanghai,China
Brand Name: HENGXIANG
Certification: CE,ISO9001
Model Number: Z100-J high resolution rotary encoder
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs encoder to start order
Price: negotiable
Packaging Details: each 1 piece was packed into single carton box
Delivery Time: 3-5 working days for sample order, 7-15 working days for mass order
Payment Terms: D/A, D/P, T/T, Western Union, Credit Card, Master Card,Paypal, etc
Supply Ability: 100K pieces per year
Contact Now
Detailed Product Description
Keywords: Non-bearing Encoder Shaft Diameter: 40mm;63mm;65mm
Material: Aluminum Alloy Hollow Shaft Type: Through Hole
Optional Supply Voltage: DC5V & DC8-30V External diameter: 100mm
Package: Carton Box Slew Speed: 5000rpm
High Light:

precision rotary encoder

,

servo motor encoder

Ultra-thin bearingless encoder Z100 thickness 16mm differential output slew speed 5000rpm



Z100 encoder Part Number for reference

Z100-C12E5000/10B48

Z100-J12C5000/16B50

Z100-C12E10000/8B46

Z100-J12C1000/10B52

Z100-C12E10000/16B55

Z100-J12E2500/8B51

Z100-C12C2500/10B52

Z100-J12C2500/16B53

Z100-C12E5000/10B54

Z100-J12C5000/16B55

Z100-C12E5000/16B56

Z100-J12C10000/8B60



Signal Circuit of encoder

1. The NPN Open Collector -- The NPN Open Collector(NPN) is an interface based on an output circuit with an NPN transistor.

An open collector is the unconnected collector connection of an NPN transistor, whose emitter is connected to earth and whose collector is connected to the output.

2. PNP output

The PNP output is an interface based on an output circuit with a PNP transistor.

3. Push-Pull output(HTL)

High Voltage Transistor Logic functions with a voltage supply in the range 10 and 30 V DC, with 24 V DC being the most usual.

“Low” is defined as an output of between 0 V and 3 V and “high” as between VCC and VCC - 3.5 V.

4. TTL RS-422 output

In a transistor-transistor logic (TTL), both the logical status and the amplification are done by transistors, hence the name.

The TTL output is supplied with either a fixed 5 V voltage or a variable voltage of between 10 and 32 V. For this the low range is defined as the ≤ 0.4 V and the high range as ≥ 2.4 V.



Product Information

Items Basic parameters
Brand HENGXIANG
Encoder type bearingless encoder
External diameter 100mm
Thickness 16mm
Hollow shaft type through hole
Hollow shaft diameter 40mm;63mm;65mm
Resolution 2500/8;2500/10;2500/16;5000/10;5000/16;
10000/8;10000/10;10000/16
Output phase A+,B+,Z+,A-,B-,Z-,U+,V+,W+,U-,V-,W-
Supply voltage DC5V ; DC8--30V
Output mode Radial cable
Radial socket
line drive (26LS31) TTL
line drive(DC8-30V) HTL
Cable length 300mm
rise/fall time less than 1 us(cable length:2 meters)
Consumption current 120mA MAX
Top response frequency 300KHZ
GND not connect to encoder
Slew speed 5000RPM
Environmental temperature Operating:-20 ~+80°;storage:-25 ~+90°
Environmental humidity Operating and storage: 35-85%RH(noncondensing)
Material aluminum alloy
Certification CE
package Carton box
Net weight About 180g (with package)



Ultra Thin Bearingless Precision Rotary Encoder Slew Speed 5000rpm 0



Advantage of “HENGXIANG” encoder factory

  • Over 18 years encoder production experience
  • More than 20 years experienced engineers
  • Professional working team
  • High quality standard
  • Quick Response time
  • Utility Model Patent Certificate
  • Own brand and unique brand
  • CE certification for all models
  • Prompt delivery date
  • 100% full inspection before shipment
