Home ProductsBearingless Encoder

Outer Diameter 100mm Through Shaft Encoder , Hollow Shaft Encoder 2500 Ppr

Outer Diameter 100mm Through Shaft Encoder , Hollow Shaft Encoder 2500 Ppr

  • Outer Diameter 100mm Through Shaft Encoder , Hollow Shaft Encoder 2500 Ppr
  • Outer Diameter 100mm Through Shaft Encoder , Hollow Shaft Encoder 2500 Ppr
Outer Diameter 100mm Through Shaft Encoder , Hollow Shaft Encoder 2500 Ppr
Product Details:
Place of Origin: Shanghai,China
Brand Name: HENGXIANG
Certification: CE,ISO9001
Model Number: Z100-J Bearingless encoder
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs encoder to start order
Price: negotiable
Packaging Details: each 1 piece was packed into single carton box
Delivery Time: 3-5 working days for sample order, 7-15 working days for mass order
Payment Terms: D/A, D/P, T/T, Western Union, Credit Card, Master Card,Paypal, etc
Supply Ability: 100K pieces per year
Contact Now
Detailed Product Description
Keywords: Through Hole Encoder Shaft Diameter: 40mm;63mm;65mm
Supply voltage: DC5V ; DC8--30V Hollow Shaft Type: Through Hole
Environmental Temperature: Operating:-20 ~+80°;storage:-25 ~+90° Environmental Humidity: Operating And Storage: 35-85%RH(noncondensing)
Package: Carton Box Net weight : About 180g (with Package)
High Light:

precision rotary encoder

,

servo motor encoder

Bearingless encoder outer diameter 100mm 2500ppr 16 poles hollow shaft rotary encoder Z100



Production Catalogue

If you have already selected the encoder model you are going to order, please email us directly or contact online service right now to get the latest catalogue.

But if you are still have any doubts on choosing a right encoder model number, you are also free to contact us to get the related catalogue.



Quick description for Z100 Series

Output Phase: ABZUVW

Power supply voltage ; DC5V or DC8-30V

Circuit Signal output: HTL, TTL

Weight : 180 grams

Thickness: 16mm-extra thin

Through hole shaft diameter: Min 40mm, Max 65mm

Waveform type : square waveform signal

Usage ; widely used on small robot application

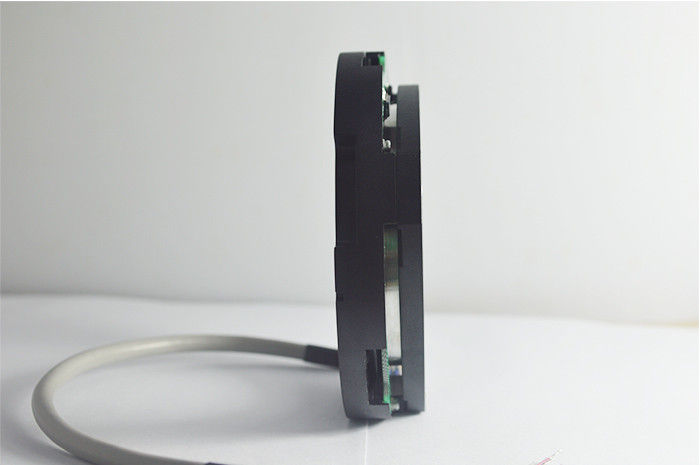

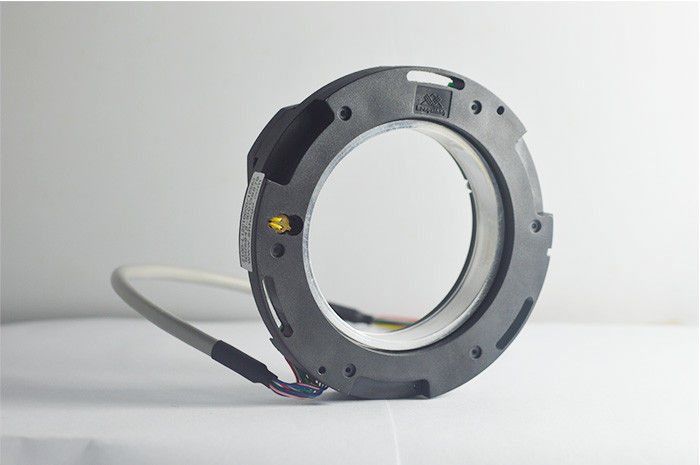

Outer Diameter 100mm Through Shaft Encoder , Hollow Shaft Encoder 2500 Ppr 0



Signal Circuit of encoder

1. The NPN Open Collector -- The NPN Open Collector(NPN) is an interface based on an output circuit with an NPN transistor.

An open collector is the unconnected collector connection of an NPN transistor, whose emitter is connected to earth and whose collector is connected to the output.

2. PNP output

The PNP output is an interface based on an output circuit with a PNP transistor.

3. Push-Pull output(HTL)

High Voltage Transistor Logic functions with a voltage supply in the range 10 and 30 V DC, with 24 V DC being the most usual.

“Low” is defined as an output of between 0 V and 3 V and “high” as between VCC and VCC - 3.5 V.

4. TTL RS-422 output

In a transistor-transistor logic (TTL), both the logical status and the amplification are done by transistors, hence the name.

The TTL output is supplied with either a fixed 5 V voltage or a variable voltage of between 10 and 32 V. For this the low range is defined as the ≤ 0.4 V and the high range as ≥ 2.4 V.



Shipment

Goods can shipped via TNT, FedEx, UPS, DHL, EMS, etc.

You could select the express according to your requirements if freight collector

If you do not have any courier account, we will check and find a cheapest and safety express for you.

Our factory has 30% discount with most courier company, so price could be as cheap as possible.



About Our Factory

  • Own brand of "HENGXIANG" encoder
  • Has ISO9001:2000 Quality Management System Certificate and CE Certification
  • Invention patents five and utility model patents five
  • Passed Shanghai New and High-tech Achievements Transformation Project.
  • Our target: Meeting Client's Requirement,Creating Social value,serving clients attentively and Achieving win-win.
  • Located in Shanghai city
  • 20-30 experienced workers



Z100 Series encoder Specification

Items Basic parameters
Brand HENGXIANG
Encoder type bearingless encoder
External diameter 100mm
Thickness 16mm
Hollow shaft type through hole
Hollow shaft diameter 40mm;63mm;65mm
Resolution 2500/8;2500/10;2500/16;5000/10;5000/16;
10000/8;10000/10;10000/16
Output phase A+,B+,Z+,A-,B-,Z-,U+,V+,W+,U-,V-,W-
Supply voltage DC5V ; DC8--30V
Output mode Radial cable
Radial socket
line drive (26LS31) TTL
line drive(DC8-30V) HTL
Cable length 300mm
rise/fall time less than 1 us(cable length:2 meters)
Consumption current 120mA MAX
Top response frequency 300KHZ
GND not connect to encoder
Slew speed 5000RPM
Environmental temperature Operating:-20 ~+80°;storage:-25 ~+90°
Environmental humidity Operating and storage: 35-85%RH(noncondensing)
Material aluminum alloy
Certification CE



Contact Details
Shanghai Hengxiang Optical Electronic Co., Ltd.

Contact Person: Manager

Tel: +8615000797209

Send your inquiry directly to us (0 / 3000)

Contact

Factory Address:R301,Building7,Lane 115,No.1276 Nanle Road,SongJiang,Shanghai,201600
