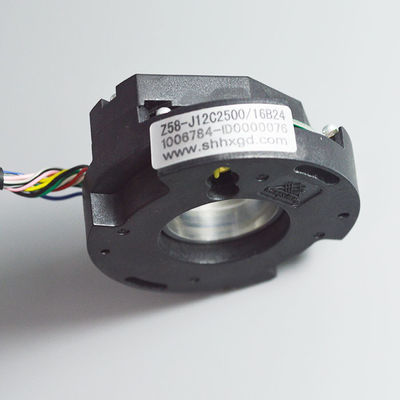

2500 Pulse 10 Poles Bearingless Encoder Z58 Thickness 20mm Thinnest DC8-30V

2500 Pulse 10 Poles Bearingless Encoder Z58 Thickness 20mm Thinnest DC8-30V

  • High Light

    precision rotary encoder


    servo motor encoder

  • Keywords
    Thinnest Encoder Z58
  • Shaft Diameter
  • Consumption Current
    120mA MAX
  • Outer Diamater
  • Optional Supply Voltage
    DC5V & DC8-30V
  • Motor Poles
    6 Poles/8 Poles/10 Poles
  • Weight
  • Slew Speed
  • Place of Origin
  • Brand Name
  • Certification
  • Model Number
    thinnest encoder Z58
  • Minimum Order Quantity
    1pcs encoder to start order
  • Price
  • Packaging Details
    each 1 piece was packed into single carton box
  • Delivery Time
    3-5 working days for sample order, 7-15 working days for mass order
  • Payment Terms
    D/A, D/P, T/T, Western Union, Credit Card, Master Card,Paypal, etc
  • Supply Ability
    100K pieces per year

2500 Pulse 10 Poles Bearingless Encoder Z58 Thickness 20mm Thinnest DC8-30V

thickness 20mm thinnest encoder module for bearingless encoder 2500 pulse 10 poles


Simple introduction of Z58 Series

Consumption current: 120mA MAX

Pulse per round ; Min 1024; Max 10000

Motor Poles:4 poles, 6 poles,8 poles,10 poles,16 poles

Encoder type: bearingless encoder

Thickness: 15mm only

Usage: widely used on robot arms or other robot application to save space

Hollow shaft diameter : Min is 14mm through hole shaft, Max is 24mm through hole shaft


Key Features of Z58 Encoder

Items Basic parameters
Encoder type bearingless encoder
External diameter 58mm
Thickness 15mm
Hollow shaft type through hole
Hollow shaft diameter 14mm;19mm;20mm;24mm;25mm
Resolution 1024/8;1024/10;1024/16;2048/6;2048/8;2048/10;2500/8;
Output phase Phase A+,B+,Z+,A-,B-,Z-,U+,V+,W+,U-,V-,W-
Supply voltage DC5V ; DC8--30V
Outlet type Cable out from side
Output mode line drive (26LS31) TTL
line drive(DC8-30V) HTL
Cable length 300mm
Consumption current 120mA MAX
Top response frequency 300KHZ
GND not connect to encoder
Slew speed 5000RPM



Questions you may like to know before ordering

Q: What’s your MOQ?

A: 1pcs

Q: How to order your encoder?

A: Contact us, or email us, we will reply you as soon as possible.

Q: Are you a factory or a trading company?

A: we are 100% factory with our brand.

Q: What’s your brand?


Q: Can you product ship to our country?

A: Yes, please advise your destination and zip code, we will check freight cost for you immediately.

Q: How to get the latest price?

A: Contact us and tell me the encoder model selection.

Q: How to select a right encoder model?

A: A right encoder model is based on different applications and parameters, you could contact us for technical support if you have any query.

Q: Do you offer technical support?

A: Yes, we have professional technician who can solve all your doubts.

Q: Can you factory offer a sample?

A: Yes, sample can be provided.

Q: How to pay for a sample?

A: Currently, our factory accept T/T, Credit card, Paypal, Western Union or cash.

Q: Do you have some videos of your products?

A: Yes, you could visit our YOUTUBE page for encoder videos.

Q: What’s your encoder product guarantee policy?

A: 1 year quality warranty and life-long technical support.

Q: Where can I download the encoder catalogue or datasheet?

A: You could visit our official website or email us directly to the latest files.


2500 Pulse 10 Poles Bearingless Encoder Z58 Thickness 20mm Thinnest DC8-30V 0


Notice for encoder installation

1. Please read the encoder specification carefully before installation

2. Encoder is belong to precision instrument, so we should avoid shock or vibration to protect interior parts.

3. The power supply voltage must be holded within specified range, or encoder could be destroyed.

4. Notice coaxially requirements when you install the power shaft, please use flexible coupling and do not press encoder forcibly.

5. Shielding cable of encoder must be connected to avoid electromagnetism interference of alternating current, cables of encoder should be layout individually.

6. Wiring diagram connection should be strictly follow the specified color in catalogue, or encoder interior circuit may be destroyed

7. Encoder should be apart from powerful magnetic field, dust, oil, water, higher (lower) temperature and caustic or flammable material during working.

8. The encoder cable signal can’t be drew or bent forcibly.
