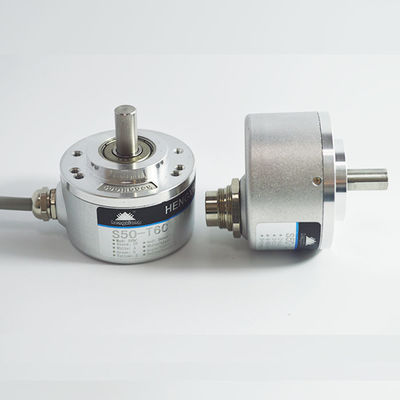

10mm 1440 Pulse Solid Shaft Encoder Installation Hole 40mm ABZ NPN Output Mode

10mm 1440 Pulse Solid Shaft Encoder Installation Hole 40mm ABZ NPN Output Mode

  • High Light

    shaft mounted encoder


    digital shaft encoder

  • Brand
  • Item
    10mm Shaft Encoder
  • Thickness
  • Motor Speed
    5000RPM ;IP65≤3000r Rpm
  • Weight
  • Woking Voltage
    DC5V ; DC8-30V
  • Pulse
    50ppr - 23040ppr
  • Cable Length
  • Place of Origin
  • Brand Name
  • Certification
  • Model Number
    10mm shaft encoder
  • Minimum Order Quantity
    1pcs encoder to start order
  • Price
  • Packaging Details
    each 1 piece was packed into single carton box
  • Delivery Time
    3-5 working days for sample order, 7-15 working days for mass order
  • Payment Terms
    D/A, D/P, T/T, Western Union, Credit Card, Master Card,Paypal, etc
  • Supply Ability
    100K pieces per year

10mm 1440 Pulse Solid Shaft Encoder Installation Hole 40mm ABZ NPN Output Mode

10mm shaft encoder 1440 pulse solid shaft encoder instllation hole 40mm ABZ NPN


Encoder video

There are plenty of encoder video if you still have any doubts on encoder, please email us directly or contact online service right now.

At the same time, you could also visit our YOUTUBY page easily.

Most of the encoder series have videos for reference.



DC motor

Stepper motor

Servo motion controller


DC garage door motor

DC servo motor

Stock driver

FS machine

VFFS machine

Packing machinery

Capsule filling machine

Paper cutter

CNC machine tool

Automatic measurement

Remote control


Product Basis information

Encoder type: Incremental encoder

Shaft length: 16mm

Solid Shaft diameter: 8mm (D shape)

Resolution: 50;60;100;200;250;256;300;360;400;450;500;512;600; 700;720;800;900;1000;1024;1200;2000;2048;2500;5000; 8192;10000;11520;16384;20000;23040

Output phase: Phase A+, B+, Z+ A- B- Z-

Supply voltage: Supply voltage

Environmental temperature: Operating:-20 ~+90°;storage:-25 ~+100°

Shaft Material: Stainless steel


Our advantage

More than 20 years experienced engineers

Professional working team

High quality standard

Quick Response time

CE certification for all models

Prompt delivery date

100% full inspection before shipment



10mm 1440 Pulse Solid Shaft Encoder Installation Hole 40mm ABZ NPN Output Mode 0


Parameter table

Items Basic parameters
Encoder type Incremental encoder
External diameter 50mm
Thickness 30mm
Output mode NPN&PNP
  Voltage output
  Push-pull output
  Difference output(TTL,HTL,RS422)
Environmental temperature Operating temperature: -20~+90° (Non icing)
  Storage temperature: -25~+100° (Non icing)
Environmental humanity Operating and storage: 35~85%RH (non-condensing)
Protection grade IP50 ; IP65
Cable length 1M (cable length could be added appropriately by
  require, but it need payment individually)
Consumption current 100mA MAX
Top response frequency 300KHZ
Allowable ripple ≤3%rms
Load Voltage ≤DC30V
GND not connect to encoder
Cable length 1000mm(cable with shielding)
Certification CE


Our Selling points

1. Quick response once received customer’s quotation query

2. Professional engineer team, to solve your problems at any time

3. Strictly inspection before shipment

4. Various encoder models to be selected

5. Short lead time
