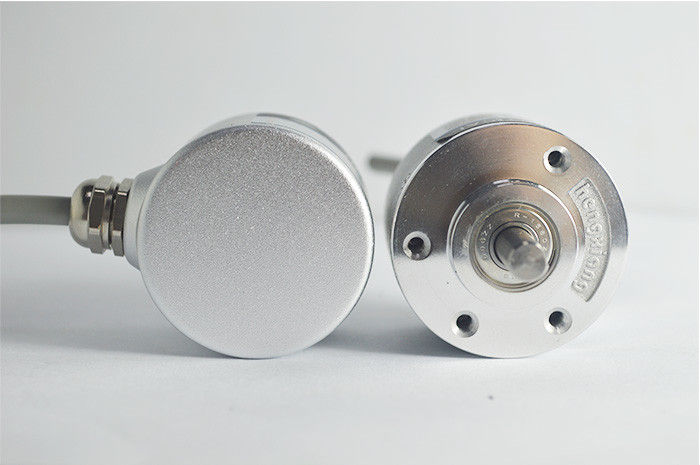

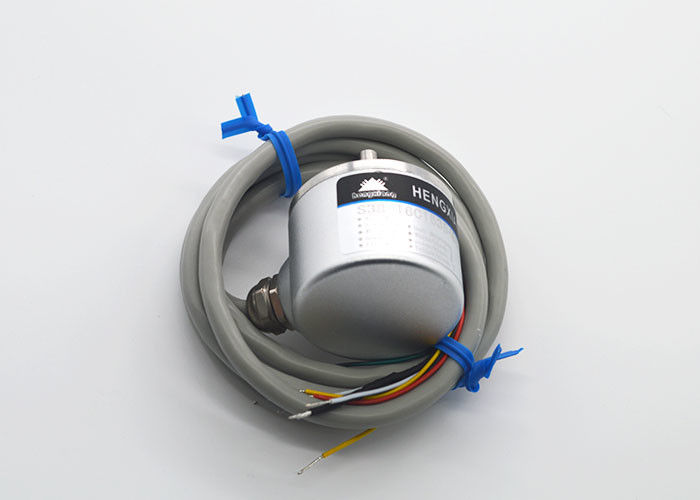

512 Ppr Motor Shaft Encoder / S38 Optical Shaft Encoder For Pad Printing Machine

512 Ppr Motor Shaft Encoder / S38 Optical Shaft Encoder For Pad Printing Machine

  • High Light

    optical position encoder

    ,

    incremental rotary encoder

  • Item
    Motor Encoder S38 Series
  • Shaft Diameter
    6mm
  • Shaft Type`
    With D Slot
  • Resolution
    50ppr(Min) To 16384ppr(Max)
  • Grade Of Protectio
    IP50/ IP65
  • Optional Supply Voltage
    DC5V & DC8-30V
  • Output Mode
    Open Collector, Voltage Output, Push-pull, TTL,HTL
  • Outlet Type
    Wire Out From Side & Wire Out From Side
  • Wire Length
    1M (it Can Be Added As Requirement)
  • Gross Weight
    120 Grams
  • Place of Origin
    Shanghai,China
  • Brand Name
    HENGXIANG
  • Certification
    CE,ISO9001
  • Model Number
    motor encoder S38 Series
  • Minimum Order Quantity
    1 piece
  • Price
    negotiable
  • Packaging Details
    each piece will be packed by one single carton box, safety package before shipment
  • Delivery Time
    1-3 working days for sample, 7 -10 days for mass production
  • Payment Terms
    Western Union, MoneyGram, T/T, D/P, D/A, L/C
  • Supply Ability
    100K pieces per month

512 Ppr Motor Shaft Encoder / S38 Optical Shaft Encoder For Pad Printing Machine

motor encoder S38 optical encoder for Pad printing machine 512ppr A+B+Z+ PNP signal



1. Specifications of motor encoder S38 Series:



Items Basic parameters
External dimensions External diameter: 38mm
Thickness: 28mm
Shaft diameter: 6mm
Resolution 50;60;66;100;200;250;256;300;360;400;450;500;512;600;
700;720;800;900;1000;1024;1200;2000;2048;2500;5000;8192;10000;16384
Output phase Phase A,B,Z,A-,B-,Z-
Supply voltage DC5V & DC8-30V
Outlettype Cable out from side
Cable out from back
Output mode NPN&PNP
Voltage output
Push-pull output
Difference output Long line drive (26LS31)
Compatible RS422
Long line drive (RT7272)
Environmental temperature Operating temperature: -20~+80° (Non icing)
Storage temperature: -25~+85° (Non icing)
Environmental humanity Operating and storage: 35~85%RH (non-condensing)
Protection grade IP50 & IP65
Cable length 1M (cable length could be added appropriately by
require, but it need payment individually)
Shell Aluminium
package Carton box
Net weight About 120g (with package)
Certification

CE





More details

MOQ: 1pcs

Price:Click online service or email us right now to get the latest quotation.



Lead time:

1-3 working days for sample
7-10 working days for mass production



Shipment:

we have 20%-30% discount with international courier such as FedEx, UPS, DHL, Aramex, etc.

so that we could offer the best shipping cost with encoder products while quotation.

If you do not have your own courier account, our factory will check the cheapest price with suitable express together,

then you won't have to worry about shipment.
