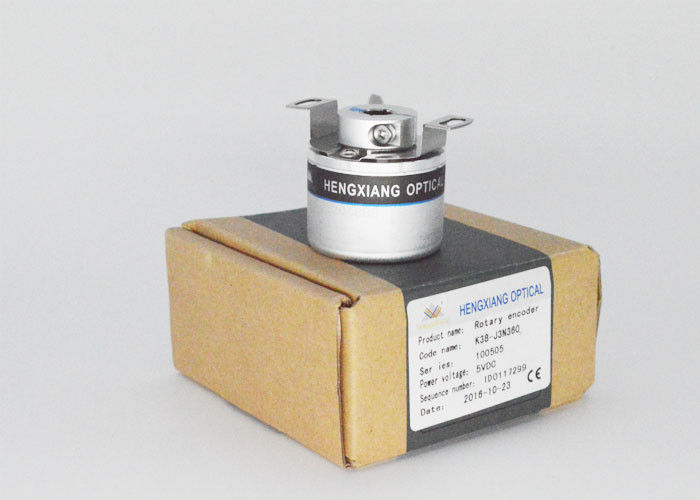

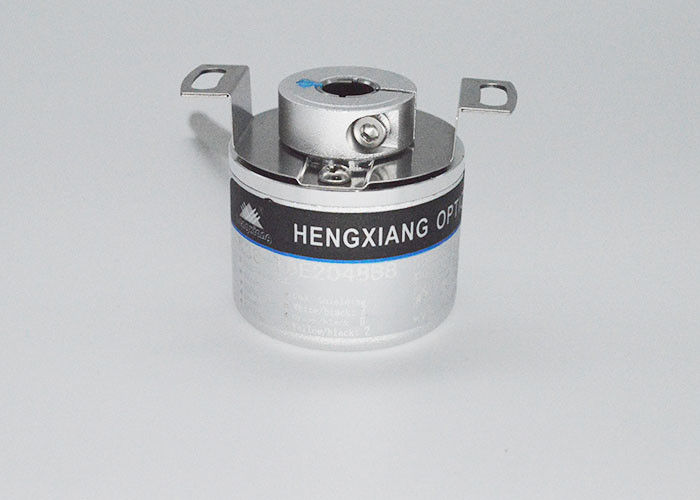

K38 through hole encoder 6.35mm shaft optical encoder for distance measurement
Hollow shaft diameter 6mm, 6.35mm, 8mm
Through hole or blind hole shaft
Protection level grade IP50 or IP65
Circuit signal output: NPN, PNP, Voltage output, Push-pull, Line driver output
Resolution(PPR):Min 50ppr, Max 16384ppr
IP grade IP50 or IP65
Installation dimension 45mm
Output Phase: A-,B-, or ABZ or A+B+Z+A-B-Z-
Gross weight 140 grams
|Encoder type||Incremental encoder|
|Environmental temperature||Operating temperature: -20~+90° (Non icing)|
|Storage temperature: -25~+100° (Non icing)|
|Environmental humanity||Operating and storage: 35~85%RH (non-condensing)|
|Shell||Die cast aluminum|
|Consumption current||100mA Max|
|Shaft Load||Radial: 40N; Axial:20N|
|Top REV||5000RPM ;IP65≤3000r rpm|
|Insulation strength||AC500V 60s|
|Mark to Space ratio||45% to 55%|
|Top Response Frequency||300kHz Max|
|Shell Material||Die cast aluminum|
|Bearing life||1.5x109 revs at rated load(100000hrs at 2500RPM)|
|GND||not connect to encoder|
|Shaft Material||Stainless steel|
|Vibration(endure)||Amplitude 0.75mm,5-55Hz,2 hours for X/Y/Z direction individually|
|Shock(endure)||490m/s2,11 ms three times for X,Y,Z direction individually|
|Protection grade||IP50 ; IP65|
