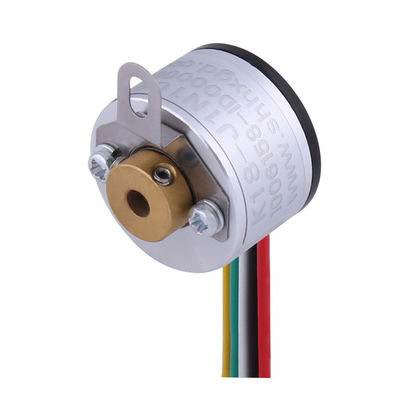

K18 minature rotary encoder MEH-17-500PC Hollow shaft encoder square wave output
Encoder Catalogue
If you have already selected the encoder model you are going to order, please email us directly or contact online service right now to get the latest catalogue.
But if you are still have any doubts on choosing a right encoder model number, you are also free to contact us to get the related catalogue.
Feather of K18 minature rotary encoder
| Items | Basic parameters |
| Brand | HENGXIANG |
| Encoder type | Incremental encoder |
| External diameter | 18mm |
| Thickness | 15.3mm |
| Installation dimension | R11mm, spring plate 18T22 |
| Hollow shaft diameter | 2.5mm |
| Resolution | 250;256;360;400;500;512；720；800；1000;1024；1440;1600 |
| Output phase | Phase A,B,Z |
| Supply voltage | DC5V ; DC8-30V |
| Outlet type | Cable out from side |
| Cable out from back | |
| Output mode | Collector open circuit output(NPN &PNP) |
| Protection grade | IP50 |
| Shaft Material | Stainless steel |
| Shell Material | aluminum alloy |
| Cable length | 150mm |
| Certification | CE |
| package | Carton box |
| Net weight | About 20g (with package) |
