Incremental Shaft Optical Rotary Encoders K22 For 24V Servo Motor 6.35mm Blind Hole Shaft

Incremental Shaft Optical Rotary Encoders K22 For 24V Servo Motor 6.35mm Blind Hole Shaft

  • High Light

    optical position encoder

    ,

    incremental rotary encoder

  • Encoder Type
    K22 Miniature Blind Hollow Shaft Encoder
  • External diameter
    22mm
  • Hollow Shaft Diameter
    4mm;5mm,6mm,6.5mm
  • Resolution
    250ppr - 1600ppr
  • Thickness
    18mm
  • Voltage
    DC5V ; DC8-30V
  • Gross
    35 Grams
  • Cable length
    500mm
  • Place of Origin
    Shanghai,China
  • Brand Name
    HENGXIANG
  • Certification
    CE,ISO9001
  • Model Number
    K22 Miniature blind hollow shaft encoder
  • Minimum Order Quantity
    1pcs encoder to start order
  • Price
    negotiable
  • Packaging Details
    each 1 piece was packed into single carton box
  • Delivery Time
    3-5 working days for sample order, 7-15 working days for mass order
  • Payment Terms
    D/A, D/P, T/T, Western Union, Credit Card, Master Card,Paypal, etc
  • Supply Ability
    100K pieces per year

Incremental Shaft Optical Rotary Encoders K22 For 24V Servo Motor 6.35mm Blind Hole Shaft

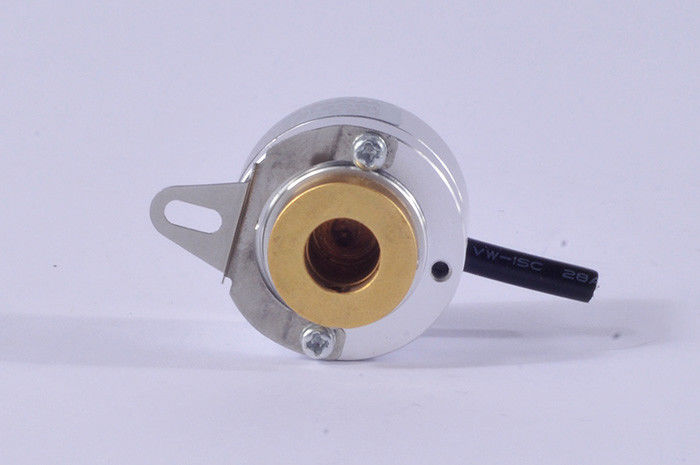

K22 ptical Incremental Shaft Rotary Encoder for 24V Servo Motor 6.35mm blind hole shaft





Product Basis information of K22 series rotary encoder

Items Basic parameters
Brand HENGXIANG
Encoder type Incremental encoder
External diameter 22mm
Thickness 18mm
Installation dimension R12mm, spring plate 22T24
Hollow shaft type blind hole
Hollow shaft diameter 4mm;5mm,6mm,6.5mm
Resolution 250;256;360;400;500;512;720;800;1000;1024;1440;1600
Output phase Phase A,B,Z
Supply voltage DC5V ; DC8-30V
Outlet type Cable out from side
Cable out from back
Output mode Collector open circuit output(NPN &PNP)
TTL(DC5V)
HTL(DC8-30V)
Protection grade IP50
Cable length 500mm
Consumption current 100mA MAX
Top response frequency 300KHZ
Rise/ Fall time 1usec Max( 1000mm cable)
starting torque less than 5x 10-4 N.m
Intertia moment less than 1x 10-6kg.m2
Shaft load Radial 2N; Axial 2N
Top REV 5000r rpm



Simply feature of K22 rotary encoder

  • Resolution up to 1,600 pulses per turn
  • External diameter 22 mm
  • Blind hollow shaft Ø 4mm to 6.5 mm
  • Protection class IP40
  • Anti-rotation system through flexible flange or pin torque support
  • Connection by cable (other cable lenght available)

Detail Dimensions
