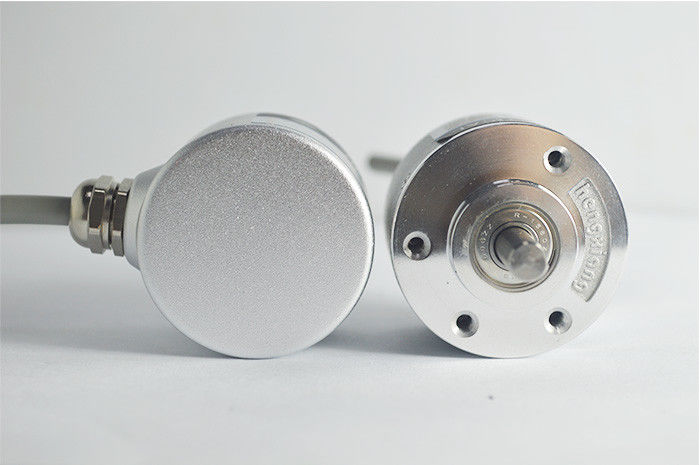

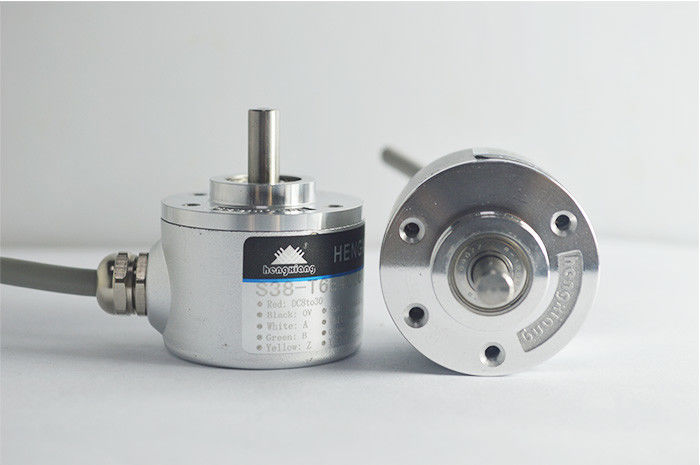

External Diameter 38mm 8000rev/Min Optical Rotary Encoders

External Diameter 38mm 8000rev/Min Optical Rotary Encoders

External Diameter 38mm 8000rev/Min Optical Rotary Encoders
External Diameter 38mm 8000rev/Min Optical Rotary Encoders
External Diameter 38mm 8000rev/Min Optical Rotary Encoders
Product Details:
Place of Origin: Shanghai
Certification: CE,ISO9001
Model Number: S38 Encoder
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs encoder to start order
Price: negotiable
Packaging Details: each 1 piece was packed into single carton box
Delivery Time: 3-5 working days for sample order, 7-15 working days for mass order
Payment Terms: D/A, D/P, T/T, Western Union, Credit Card, Master Card,Paypal, etc
Supply Ability: 100K pieces per year
Contact Now
Detailed Product Description
Name: S38 Absolute Shaft Encoder External diameter: 38mm
Thickness: 28mm Shaft Length: 13mm
Solid Shaft diameter: 6mm(D Shape) Output phase Phase: A,B,Z,A-,B-,Z-
Protection grade: IP50 & IP65 Cable length: 1000MM
Max Resolution: 16384ppr
High Light:

8000rev/Min Optical Rotary Encoders


38mm Optical Rotary Encoders


8000rev/Min absolute shaft encoder

External diameter 38mm optical rotary encoders 6mm shaft Speed 8000 rev / min S38 model


1. Our Advantage


Over 18 years encoder production experience

More than 20 years experienced engineers

Professional working team

High quality standard


2. Quick instructions

Shaft length 13mm

Power supply voltage 5V or 8--30V

Axial Cable outlet or Radial Cable outlet

Sensing basic : photoelectric

Pulse per turn: 50ppr to 16384ppr

Solid shaft 6mm with D shape

Protection level grade IP50 or IP65


3. Specifications


Encoder type Incremental encoder
External diameter 38mm
Thickness 28mm
Shaft length 13mm
Solid Shaft diameter 6mm(D shape)
Resolution 50;60;66;100;200;250;256;300;360;400;450;500;512;
Output mode NPN&PNP
Voltage output
Push-pull output
Difference output(TTL,HTL,RS422)
Output phase Phase A,B,Z,A-,B-,Z-
Shaft Material Stainless steel
Shell Material Dia cast aluminium
Cable length 1000mm(cable with shielding)
Certification CE




External Diameter 38mm 8000rev/Min Optical Rotary Encoders 0


External Diameter 38mm 8000rev/Min Optical Rotary Encoders 1


4. Applications

S38 series encoder can be used on all kinds of applications, when you need a controller to measure speed or length, then a encoder could be worked on your device, no matter what size you need, and what precision it requested, the encoder could always be a proper tool for you.


5. FAQ

Q: Can you product ship to our country?

A: Yes, please advise your destination and zip code, we will check freight cost for you immediately.

Q: How to get the latest price?

A: Contact us and tell me the encoder model selection.

Q: How to select a right encoder model?

A: A right encoder model is based on different applications and parameters, you could contact us for technical support if you have any query.

Q: Do you offer technical support?

A: Yes, we have professional technician who can solve all your doubts.


6. Some Related S38 encoder model number

S38-T6E600 DC12V

S38-T6E720 DC8-30V

S38-T4E720 DC8V

S38-T6E1024 DC30V

S38-T6E2500 DC24V

S38-T6E5000 DC8-30V

S38-T6E10000 DC10V

S38-T4E1200 DC12V

S38-T6C720 DC5V

S38-T6C1024 DC5V

S38-T3N1024 DC5-30V

S38-T6E512 DC12V


7. Shipment

There are two method of shipment right now,

One is our factory check freight cost from FedEx, UPS, DHL,TNT, etc, for you to get the cheapest quotation and shipping date.

The other is you offer your own courier account when ordering, so we can use your express account to arrange the shipment.
