D Type 1024 Resolution Solid Shaft 8mm Optical Rotary Encoders

D Type 1024 Resolution Solid Shaft 8mm Optical Rotary Encoders

  • High Light

    8mm Optical Rotary Encoders


    1024 Optical Rotary Encoders


    8mm optical linear encoder

  • Name
    S50 Optical Linear Encoder
  • External diameter
  • Thickness
  • Shaft Length
  • Solid Shaft diameter
    8mm(D Shape)
  • Output phase Phase
    Phase A+,B+,Z+ A- B- Z-
  • Supply voltage
    DC5V ; DC8-30V
  • Protection grade
    IP50 ; IP65
  • Net weight
    About 190g
  • Place of Origin
  • Brand Name
  • Certification
  • Model Number
  • Minimum Order Quantity
    1pcs encoder to start order
  • Price
  • Packaging Details
    each 1 piece was packed into single carton box
  • Delivery Time
    3-5 working days for sample order, 7-15 working days for mass order
  • Payment Terms
    D/A, D/P, T/T, Western Union, Credit Card, Master Card,Paypal, etc
  • Supply Ability
    100K pieces per year

D Type 1024 Resolution Solid Shaft 8mm Optical Rotary Encoders

1024 resolution S50 optical rotary encoders solid shaft encoder 8mm D-type


1. Quick Description

External diameter: 50mm

Solid Shaft diameter:8mm (D shape)

Output phase A+, B+,Z+ A- B- Z-

Top REV: 5000RPM ;IP65≤3000r rpm

Shell Material:Die cast aluminum

Shaft Material:Stainless steel

Net weight :About 190g (with package)


2. Some Basic Parameters


Items Basic parameters
Encoder type Incremental encoder
External diameter 50mm
Thickness 30mm
Shaft length 16mm
Solid Shaft diameter 8mm(D shape)
Resolution 50;60;100;200;250;256;300;360;400;450;500;512;600;
Output phase Phase A+,B+,Z+ A- B- Z-
Supply voltage DC5V ; DC8-30V
Outlettype Cable out from side
Cable out from back
Socket out from back
Output mode NPN&PNP
Voltage output
Push-pull output
Difference output(TTL,HTL,RS422)
Environmental temperature Operating temperature: -20~+90° (Non icing)
Storage temperature: -25~+100° (Non icing)
Environmental humanity Operating and storage: 35~85%RH (non-condensing)
Protection grade IP50 ; IP65
Cable length 1M (cable length could be added appropriately by
require, but it need payment individually)

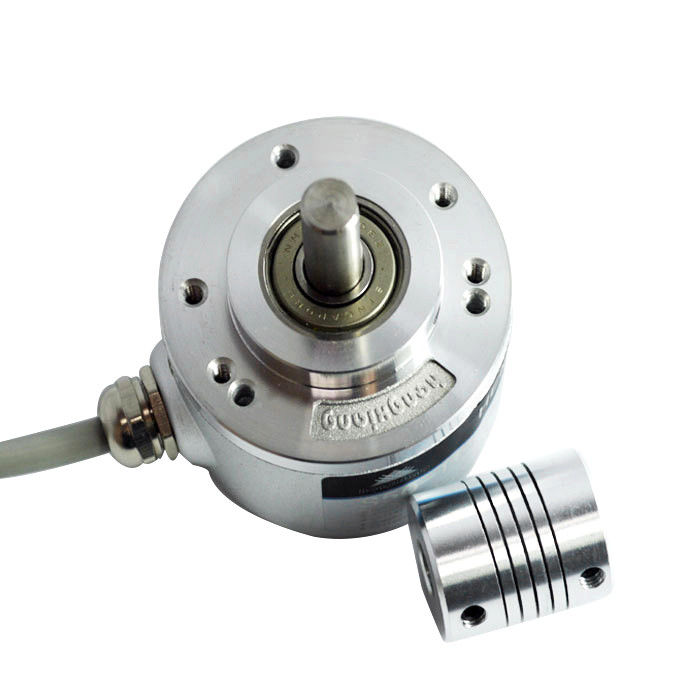

D Type 1024 Resolution Solid Shaft 8mm Optical Rotary Encoders 0

3. Dimensions

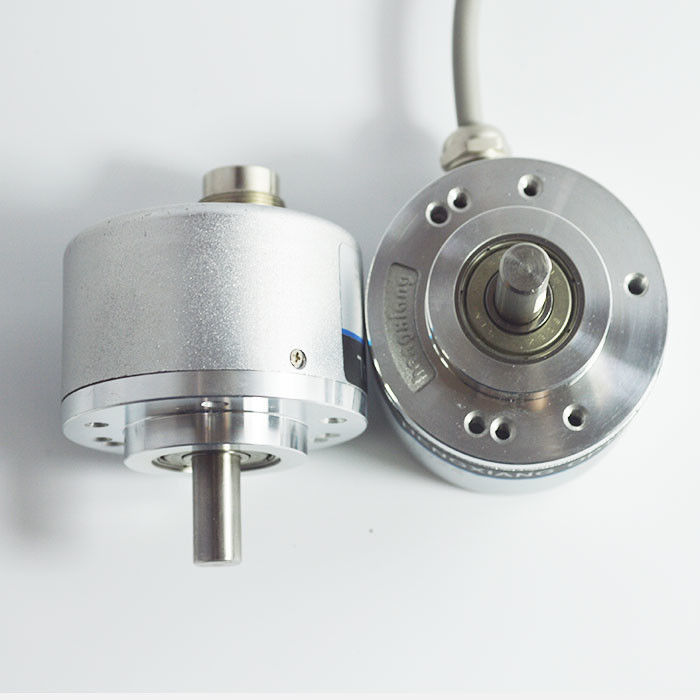

D Type 1024 Resolution Solid Shaft 8mm Optical Rotary Encoders 1

4. Applications

VVVF motor

DC motor

Stepper motor

Servo motion controller


DC garage door motor

DC servo motor

Stock driver


5. Our advantage

Professional working team

High quality standard

Quick Response time

Utility Model Patent Certificate

Own brand and unique brand

CE certification for all models


6. FAQ

Q: How to pay for a sample?

A: Currently, our factory accept T/T, Credit card, Paypal, Western Union or cash.

Q: Do you have some videos of your products?

A: Yes, you could visit our YOUTUBE page for encoder videos.

Q: What’s your encoder product guarantee policy?

A: 1 year quality warranty and life-long technical support.

Q: Where can I download the encoder catalogue or datasheet?

A: You could visit our official website or email us directly to the latest files.

Q: What parameters are requested before ordering an encoder?

A: You should get some basic parameters before you start to order. Such as installation dimensions, resolutions, circuit signal, power supply voltage, etc.


7. Some Related S50 encoder model number

S50-Q1N1024 DC5V

S50-Q3N1024 DC5-12V

S50-Q2N120 DC5V

S50-Q3V1000 DC12V

S50-Q6C1024 DC5V

S50-Q6E1024 DC8-30V

S50-Q3F1024 DC12-24V

S50-Q3P1024 DC5-30V

S50-T3N2000 DC24V

S50-Q3F23040 DC5-30V


8. Production date

3-5 working days for sample after full paid

7-15 days for mass production after full paid


9. Package

Each single encoder is packed into a single safe carton with protecting bubble.

Then all encoders will be put into a bigger carton to prepare shipment.
