ABZ Phase Push Pull Output Cable 1000mm Incremental Optical Encoder

ABZ Phase Push Pull Output Cable 1000mm Incremental Optical Encoder

  • High Light

    ABZ Incremental Optical Encoder

    ,

    1000mm Incremental Optical Encoder

    ,

    ABZ incremental rotary encoder

  • Name
    S50 Incremental Optical Encoder
  • External diameter
    50mm
  • Thickness
    30mm
  • Shaft Length
    16mm
  • Solid Shaft diameter
    8mm(D Shape)
  • Output phase Phase
    Phase A+,B+,Z+ A- B- Z-
  • Supply voltage
    DC5V ; DC8-30V
  • Protection grade
    IP50 ; IP65
  • Net weight
    About 190g
  • Place of Origin
    Shanghai
  • Brand Name
    HENGXIANG OPTICAL ENCODER
  • Certification
    CE,ISO9001
  • Model Number
    S50
  • Minimum Order Quantity
    1pcs encoder to start order
  • Price
    negotiable
  • Packaging Details
    each 1 piece was packed into single carton box
  • Delivery Time
    3-5 working days for sample order, 7-15 working days for mass order
  • Payment Terms
    D/A, D/P, T/T, Western Union, Credit Card, Master Card,Paypal, etc
  • Supply Ability
    100K pieces per year

ABZ Phase Push Pull Output Cable 1000mm Incremental Optical Encoder

S50 incremental encoder ABZ phase push-pull output cable length 1000mm



1. About Our Factory

1. Own brand of "HENGXIANG" encoder,

2. Has ISO9001:2000 Quality Management System Certificate and CE Certification

3. Invention patents five and utility model patents five

4. Passed Shanghai New and High-tech Achievements Transformation Project.

5. Our target: Meeting Client's Requirement,Creating Social value,serving clients attentively and Achieving win-win.



2. Our advantage

High quality standard

Quick Response time

Utility Model Patent Certificate

Own brand and unique brand

CE certification for all models

Prompt delivery date



3. Detail Specifications



Items Basic parameters
Brand HENGXIANG
Encoder type Incremental encoder
External diameter 50mm
Thickness 30mm
Shaft length 16mm
Solid Shaft diameter 8mm(D shape)
Resolution 50;60;100;200;250;256;300;360;400;450;500;512;600;
700;720;800;900;1000;1024;1200;2000;2048;2500;5000
  8192;10000;11520;16384;20000;23040
Output mode NPN&PNP
  Voltage output
  Push-pull output
  Difference output(TTL,HTL,RS422)
Environmental temperature Operating temperature: -20~+90° (Non icing)
  Storage temperature: -25~+100° (Non icing)
Environmental humanity Operating and storage: 35~85%RH (non-condensing)
Protection grade IP50 ; IP65
Cable length 1M (cable length could be added appropriately by
  require, but it need payment individually)



Details

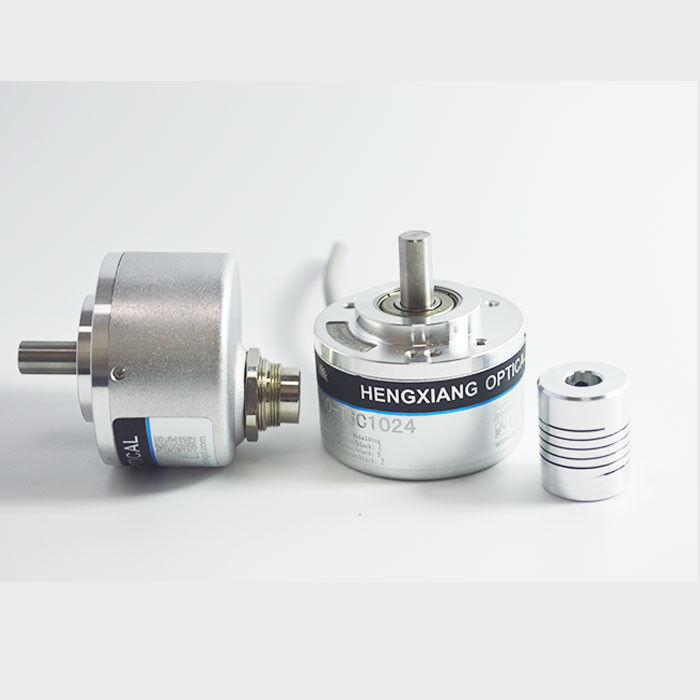

ABZ Phase Push Pull Output Cable 1000mm Incremental Optical Encoder 0

Dimension

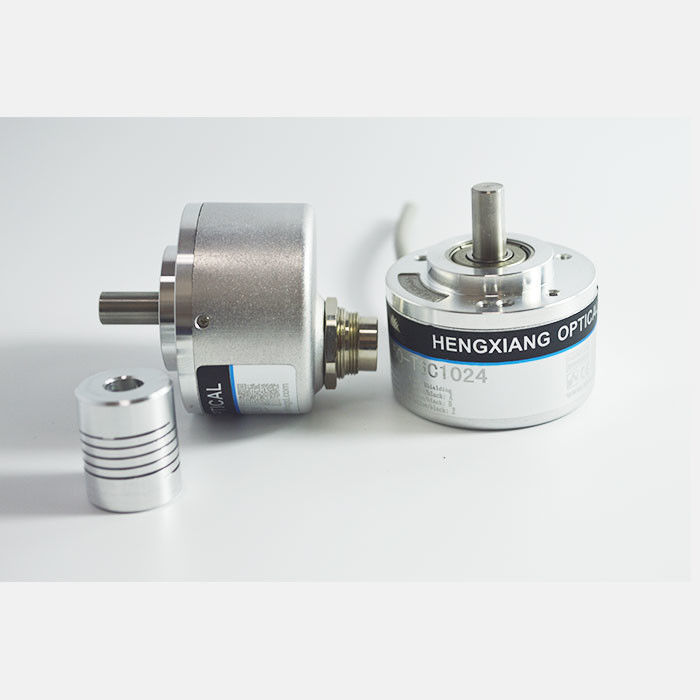

ABZ Phase Push Pull Output Cable 1000mm Incremental Optical Encoder 1

4. Applications

S50 rotary encoders can widely worked on following machines or devices, if you have the same application, or if you have any other usages, you are free to let us know.

Packing machinery

Capsule filling machine

Pharmaceutical machine

VVVF motor

DC motor

Stepper motor

Servo motion controller

Gearbox

DC garage door motor

DC servo motor

Stock driver

PMDC geared motor

Brushless dc motor
Servo motor

Drawing machine



5. Payment terms

1. T/T, western union, credit card, Paypal,etc

2. 3-5 working days after payment received

3. Encoders will be shipped once ready



6. Some Related S50 encoder model number

S50-T1F200 DC5V

S50-T3F1200 DC5-30V

S50-T3F1024 DC12V

S50-T2F2000 DC5V

S50-T1F8192 DC5V

S50-T3F10000 DC12-24V

S50-T3F3040F DC8-30V

S50-T1F2500 DC5V

S50-T2F3600 DC5-30V

S50-T3F4096 DC24V

S50-T3F2048 DC5V

S50-Q2F720 DC5V

S50-Q1F1440 DC24V

S50-Q3F1000 DC8-30V

S50-D3F512 DC5-12V

S50-D2F1024 DC30V

S50-D3F1024 DC8V





7. Production date

1. for 1-10 samples: 3-5 working days

2. for 20-50 mass production: 7-10 working days

3. for over 100pcs, production will be discussed with customers and ship on time



8. FAQ

Q: What parameters are requested before ordering an encoder?

A: You should get some basic parameters before you start to order. Such as installation dimensions, resolutions, circuit signal, power supply voltage, etc.

If you have any doubt on selecting the model, you are welcome to contact us for more assistant.

Q: Where is your factory?

A: Our factory is located on Shanghai City.

Q: Can I pay a visit to your factory?

A: Yes, you we welcome to visit our factory at any time if convenient.

Q: How long is your delivery time?

A: Usually 3 working days for sample, 7-15 days for mass production,

The production date is according to order quantity.

Q: What is the highest resolution of your encoder products?

A: The highest resolution is 80000ppr, you can email us for more information.

Q: Can your encoder be customized?

A: Yes, our encoder can be customized according to your requirements,
