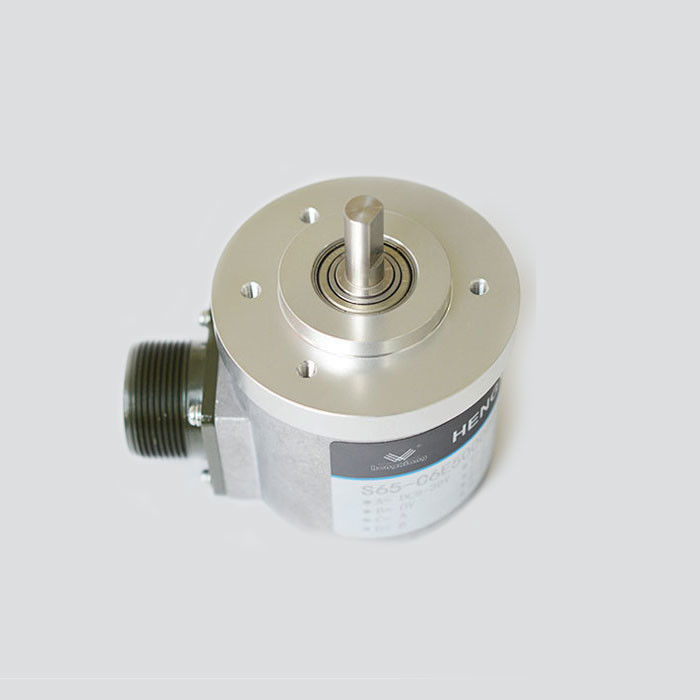

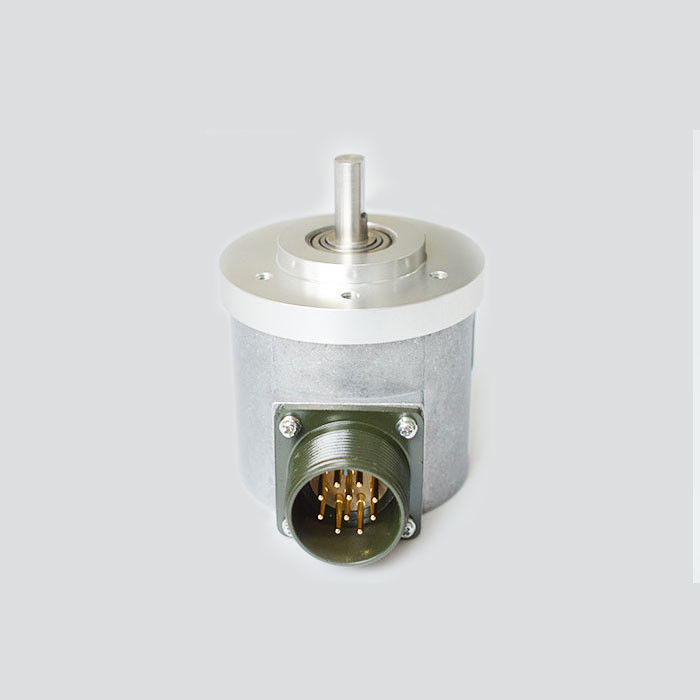

Solid Shaft Incremental 512ppr IP65 Optical Rotary Encoders

Solid Shaft Incremental 512ppr IP65 Optical Rotary Encoders

  • Solid Shaft Incremental 512ppr IP65 Optical Rotary Encoders
  • Solid Shaft Incremental 512ppr IP65 Optical Rotary Encoders
Solid Shaft Incremental 512ppr IP65 Optical Rotary Encoders
Product Details:
Place of Origin: Shanghai
Brand Name: HENGXIANG OPTICAL ENCODER
Certification: CE,ISO9001
Model Number: S65
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs encoder to start order
Price: negotiable
Packaging Details: each 1 piece was packed into single carton box
Delivery Time: 3-5 working days for sample order, 7-15 working days for mass order
Payment Terms: D/A, D/P, T/T, Western Union, Credit Card, Master Card,Paypal, etc
Supply Ability: 100K pieces per year
Contact Now
Detailed Product Description
Name: S65 Incremental Rotary Encoder External diameter: 65mm
Thickness: 53mm Shaft Length: 16mm
Supply voltage: DC5V ; DC8~30V Protection grade: IP50 ; IP65
Insulation Strength: AC500V 60s Insulation Resistance: 10MΩ
Mark To Space Ratio: 45% To 55%
High Light:

IP65 Optical Rotary Encoders

,

512ppr Optical Rotary Encoders

,

512ppr incremental rotary encoder

Voltage output S65 solid shaft incremental encoder 512ppr IP65 used in sensor



Characteristics



Encoder type: Incremental encoder

Solid Shaft diameter: 8mm (D shape)

Top response frequency: 300KHZ

Allowable ripple: ≤3%rms

Bearing life: 1.5x109 revs at rated load (100000hrs at 2500RPM)

Shaft Material: Stainless steel

Shell Material: Die cast aluminum

Cable length: 1000mm (cable with shielding)



Principle of encoder

Incremental rotary encoders provide a serial output signal on a single transmission line. One sensor must be connected to one controller.

An incremental encoder has at least 1 output signal “A” or typically 2 output signals, called “A” and “B”. These 2 signals are set up with a 90° offset, which is required for the detection of the encoder’s rotation. By turning the encoder clockwise, the “A” pulse is rising 90° ahead of the “B” pulse, by turning the shaft counterclockwise, the “B” pulse is rising ahead of the “A” pulse.



Additionally some incremental encoders output a “Z” signal. Once every rotation, this Z signal is rising for typically 90°, on the exact same position. This can be used as an accurate reference point.

Some incremental encoders also have additional differential signals, called “/A”, “/B” and “/Z”. These signals are inverted “A”, “B” and “Z” signals. Controllers can compare each pair (“A” must be equal to inverted “/A”) to ensure that there is no error during the transmission.

Additionally the transmission sensitivity is improved by transmitting the differential signals through a twisted pair cable.



Detail Specifications

Items Basic parameters
Brand HENGXIANG
Encoder type Incremental encoder
External diameter 65mm
Enviromental humidity Operating and storage: 35-85%RH(noncondensing)
Vibration(endure) Amplitude 0.75mm,5-55Hz,2 hours for three axis individually
Sock(endure) 490m/s2 ,11 ms three times for X,Y,Z direction individually
Shaft Material Stainless steel
Shell Material Dia cast aluminium
Cable length 1000mm(cable with shielding)
Certification CE
package Carton box
Net weight About 350g (with package)
Resolution 50;60;100;200;250;256;300;360;400;450;500;512;600;720;1000
  1000;1024;1200;1250;1440;1800;2000;2048;2500;2880;3000;
  3600;4000;4096;5000;5760;8192;10000;11520;16384;20000; 23040

Details

Solid Shaft Incremental 512ppr IP65 Optical Rotary Encoders 0

Dimension

Solid Shaft Incremental 512ppr IP65 Optical Rotary Encoders 1



Usage of encoder

DC servo motor

Stock driver

PMDC geared motor

Brushless dc motor
Servo motor

Drawing machine

VFD

Inverter

Variable frequency driver

Embroidery machine

Elevator

Printing machinery

Projector



Our advantage

CE certification for all models

Prompt delivery date

100% full inspection before shipment

Customers from about 200 countries

IS09001:2015 Certification

Trademark Registration certificate



Some Related S65 encoder model number

S65-T3V512D DC5V

S65-C3V512 DC5V

S65-C6CD DC5V

S65-T6C1024 DC5V

S65-T3N1024 DC5-30V

S65-T3F2000 DC12V

S65-C3N2500D DC12-24V

S65-T6E4096 DC8-30V

S65-T1N8192 DC12-24V

S65-T6C10000 DC5V

S65-C6E16384D DC8-24V

S65-T3F20000D DC5-30V

S65-T3F23040 DC8-30V
