Blind Hole 8mm AB Phase NPN DC30v mechanical rotary encoder

Blind Hole 8mm AB Phase NPN DC30v mechanical rotary encoder

  • Blind Hole 8mm AB Phase NPN DC30v mechanical rotary encoder
  • Blind Hole 8mm AB Phase NPN DC30v mechanical rotary encoder
Blind Hole 8mm AB Phase NPN DC30v mechanical rotary encoder
Product Details:
Place of Origin: Shanghai
Certification: CE,ISO9001
Model Number: K38
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs encoder to start order
Price: negotiable
Packaging Details: each 1 piece was packed into single carton box
Delivery Time: 3-5 working days for sample order, 7-15 working days for mass order
Payment Terms: D/A, D/P, T/T, Western Union, Credit Card, Master Card,Paypal, etc
Supply Ability: 100K pieces per year
Contact Now
Detailed Product Description

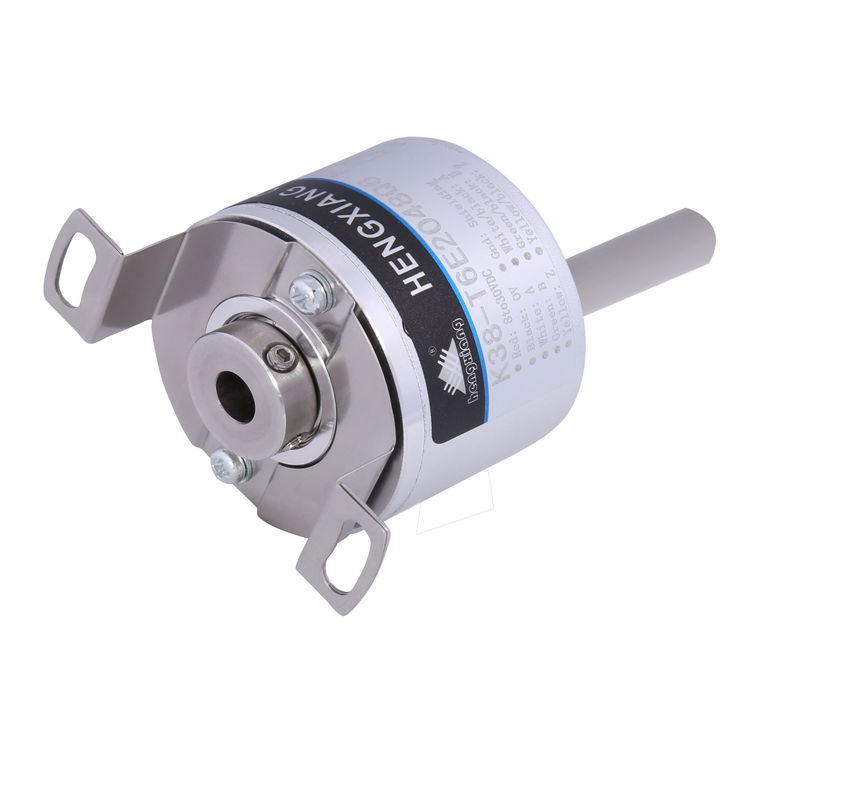

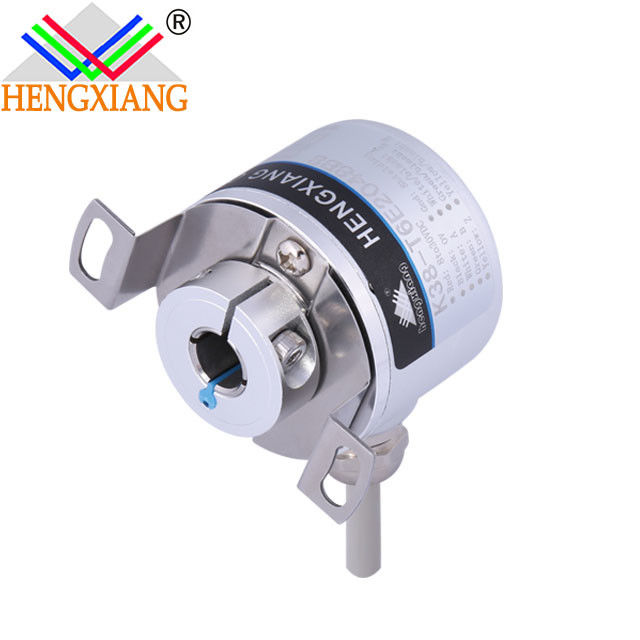

Name: K38 Mechanical Rotary Encoder External diameter: 38mm
Shell : Die Cast Aluminum Consumption Current: 100mA Max
Shaft Load: Radial: 40N; Axial:20N Top REV: 5000RPM ;IP65≤3000r Rpm
Insulation Strength: AC500V 60s Insulation Resistance: 10MΩ
Mark To Space Ratio: 45% To 55% Top Response Frequency: 300kHz Max
High Light:

DC30v Mechanical Rotary Encoder


8mm Mechanical Rotary Encoder


8mm absolute position encoder

Blind hole 8mm shaft K38 optical rotary encoders AB phase NPN output dc10-30v


Product Description


Hollow shaft diameter 6mm, 6.35mm, 8mm

Through hole or blind hole shaft

Protection level grade IP50 or IP65

Circuit signal output: NPN, PNP, Voltage output, Push-pull, Line driver output

Resolution(PPR):Min 50ppr, Max 16384ppr

IP grade IP50 or IP65

Installation dimension 45mm

Output Phase: A-,B-, or ABZ or A+B+Z+A-B-Z-

Gross weight 140 grams


Parameter table


Items Basic parameters
Encoder type Incremental encoder
External diameter 38mm
Environmental temperature Operating temperature: -20~+90° (Non icing)
  Storage temperature: -25~+100° (Non icing)
Environmental humanity Operating and storage: 35~85%RH (non-condensing)
Shell Die cast aluminum
Consumption current 100mA Max
Shaft Load Radial: 40N; Axial:20N
Top REV 5000RPM ;IP65≤3000r rpm
Insulation strength AC500V 60s
Insulation resistance 10MΩ
Mark to Space ratio 45% to 55%
Top Response Frequency 300kHz Max
Shell Material Die cast aluminum
Bearing life 1.5x109 revs at rated load(100000hrs at 2500RPM)
GND not connect to encoder
Shaft Material Stainless steel
Vibration(endure) Amplitude 0.75mm,5-55Hz,2 hours for X/Y/Z direction individually
Shock(endure) 490m/s2,11 ms three times for X,Y,Z direction individually
Protection grade IP50 ; IP65
Cable length 1000mm



Blind Hole 8mm AB Phase NPN DC30v mechanical rotary encoder 0


Blind Hole 8mm AB Phase NPN DC30v mechanical rotary encoder 1


Our advantage

Over 18 years encoder production experience

More than 20 years experienced engineers

Own brand and unique brand

CE certification for all models

Prompt delivery date

100% full inspection before shipment



Q: Where can I download the encoder catalogue or datasheet?

A: You could visit our official website or email us directly to the latest files.

Q: What parameters are requested before ordering an encoder?

A: You should get some basic parameters before you start to order. Such as installation dimensions, resolutions, circuit signal, power supply voltage, etc.

If you have any doubt on selecting the model, you are welcome to contact us for more assistant.

Q: Where is your factory?

A: Our factory is located on Shanghai City.

Q: Can I pay a visit to your factory?

A: Yes, you we welcome to visit our factory at any time if convenient.

Q: What’s your MOQ?

A: 1pcs

Q: How to order your encoder?

A: Contact us, or email us, we will reply you as soon as possible.

Q: Are you a factory or a trading company?

A: we are 100% factory with our brand.

Q: What’s your brand?



Production date

1. for 1-10 samples: 3-5 working days

2. for 20-50 mass production: 7-10 working days

3. for over 100pcs, production will be discussed with customers and ship on time


Technical Theory

The encoders can be selected with cable or connector. If you choose the connector option, you will need a mating connector or a cordset (both connector and cable). This will give you a connection point to the encoder but does not necessarily get you all the way to your control cabinet. Depending on the distance, you may need a junction box, conduit, and cable tray. Care should be taken when routing encoder cable to reduce the influence of "noise". To reduce this influence, the cable should have a braided shield around the wires and the wires should be twisted pair. The encoder cable should be in a conduit with only low DCV cables and keep AC and high-power cables separated. If there are cable trays with AC and DC cables, there should be a grounded metal divider between the DC and AC cables. If the encoder cable does need to cross an AC cable, it should cross perpendicular (90 degrees to each other). The shield should be connected to one earth ground location in your control cabinet (so it has a star topology).
