aluminum NPN 12mm 3600ppr Hollow Shaft Rotary Encoder

aluminum NPN 12mm 3600ppr Hollow Shaft Rotary Encoder

  • aluminum NPN 12mm 3600ppr Hollow Shaft Rotary Encoder
  • aluminum NPN 12mm 3600ppr Hollow Shaft Rotary Encoder
aluminum NPN 12mm 3600ppr Hollow Shaft Rotary Encoder
Product Details:
Place of Origin: Shanghai
Brand Name: HENGXIANG OPTICAL ENCODER
Certification: CE,ISO9001
Model Number: K50
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs encoder to start order
Price: negotiable
Packaging Details: each 1 piece was packed into single carton box
Delivery Time: 3-5 working days for sample order, 7-15 working days for mass order
Payment Terms: D/A, D/P, T/T, Western Union, Credit Card, Master Card,Paypal, etc
Supply Ability: 100K pieces per year
Contact Now
Detailed Product Description
Name: K50 Hollow Shaft Rotary Encoder External diameter: 50mm
Thickness: 30mm Output phase Phase: A,B,Z A- B- Z-
Supply voltage: DC5V ; DC8-30V Intertia Moment: Less Than 6.5x 10-6kg.m2
Package: Carton Box Installation Dimension: R27.5mm,R30mm, R34.5mm
Shell: Die Cast Aluminum Consumption Current: 100mA Max
High Light:

3600ppr Hollow Shaft Rotary Encoder

,

12mm Hollow Shaft Rotary Encoder

,

3600ppr precision rotary encoder

NPN High level efficiency optical rotary encoders hollow shaft 12mm 3600ppr K50 encoder



Production Catalogue

Please email us directly or contact online service to get the latest catalogue right now.



Package

Each single encoder is packed into a single safe carton with protecting bubble.

Then all encoders will be put into a bigger carton to prepare shipment.



Shipment

1. Goods can shipped via TNT, FedEx, UPS, DHL, EMS, etc.

2. You could select the express according to your requirements if freight collector

3. If you do not have any courier account, we will check and find a cheapest and safety express for you.

4. Our factory has 30% discount with most courier company, so price could be as cheap as possible.



Product Basis information

Encoder type: Incremental encoder

External diameter: 50mm

Installation dimension: R27.5mm,R30mm, R34.5mm

Hollow shaft type: blind hole ; through hole

Output phase: Phase A,B,Z A- B- Z-

Supply voltage: DC5V ; DC8-30V

Environmental humanity: Operating and storage: 35~85%RH (non-condensing)

Shell : Die cast aluminum

Consumption current: 100mA Max



Our advantage

Professional working team

High quality standard

Quick Response time

Utility Model Patent Certificate

Own brand and unique brand

CE certification for all models

Prompt delivery date

100% full inspection before shipment



Application

Brushless dc motor
Servo motor

Drawing machine

VFD

Inverter

Variable frequency driver

Embroidery machine

Elevator

Printing machinery

Projector

Injection molding machine



Product introduction



Items Basic parameters
Brand HENGXIANG
Encoder type Incremental encoder
External diameter 50mm
Thickness 30mm
Resolution 50;60;66;100;200;250;256;300;360;400;450;500;512;600;
  700;720;800;900;1000;1024;1200;2000;2048;2500;5000; 8192;10000;16384
  8192;10000;11520;16384;20000;23040
Output phase Phase A,B,Z A- B- Z-
Supply voltage DC5V ; DC8-30V
Outlet type Cable out from side
  Cable out from back
Output mode NPN/PNP(Open Collector Output)
  Voltage output
  Push-pull output
  Long line drive (26LS31)
  Compatible RS422
  Long line drive (RT7272)
Intertia moment less than 6.5x 10-6kg.m2
package Carton box
Net weight About 140g (with package)
Certification CE

Pictures

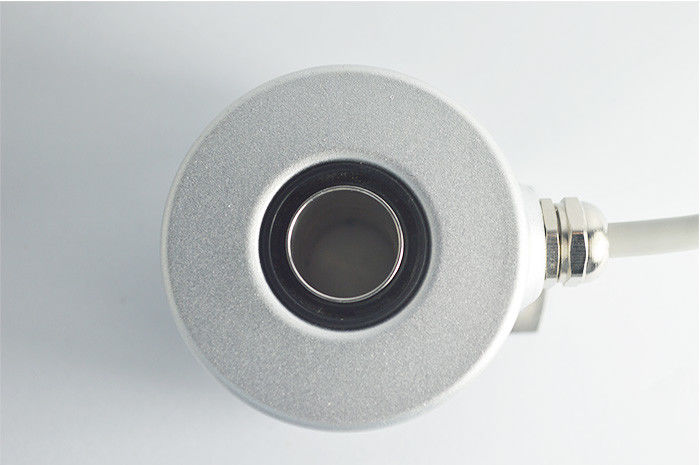

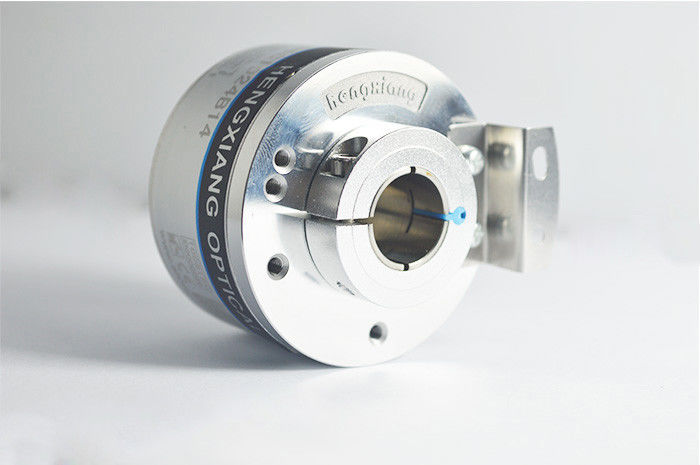

aluminum NPN 12mm 3600ppr Hollow Shaft Rotary Encoder 0

Dimension

aluminum NPN 12mm 3600ppr Hollow Shaft Rotary Encoder 1

FAQ

Q: How to get the latest price?

A: Contact us and tell me the encoder model selection.

Q: How to select a right encoder model?

A: A right encoder model is based on different applications and parameters, you could contact us for technical support if you have any query.

Q: Do you offer technical support?

A: Yes, we have professional technician who can solve all your doubts.

Q: Where is your factory?

A: Our factory is located on Shanghai City.

Q: Can I pay a visit to your factory?

A: Yes, you we welcome to visit our factory at any time if convenient.

Q: How long is your delivery time?

A: Usually 3 working days for sample, 7-15 days for mass production
