Die Cast Aluminium 76.5mm Optical Rotary Encoders

Die Cast Aluminium 76.5mm Optical Rotary Encoders

  • Die Cast Aluminium 76.5mm Optical Rotary Encoders
  • Die Cast Aluminium 76.5mm Optical Rotary Encoders
Die Cast Aluminium 76.5mm Optical Rotary Encoders
Product Details:
Place of Origin: Shanghai
Certification: CE,ISO9001
Model Number: K76
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs encoder to start order
Price: negotiable
Packaging Details: each 1 piece was packed into single carton box
Delivery Time: 3-5 working days for sample order, 7-15 working days for mass order
Payment Terms: D/A, D/P, T/T, Western Union, Credit Card, Master Card,Paypal, etc
Supply Ability: 100K pieces per year
Contact Now
Detailed Product Description

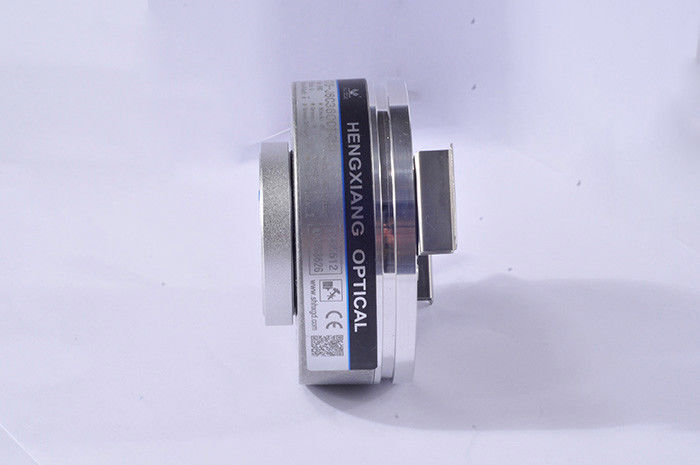

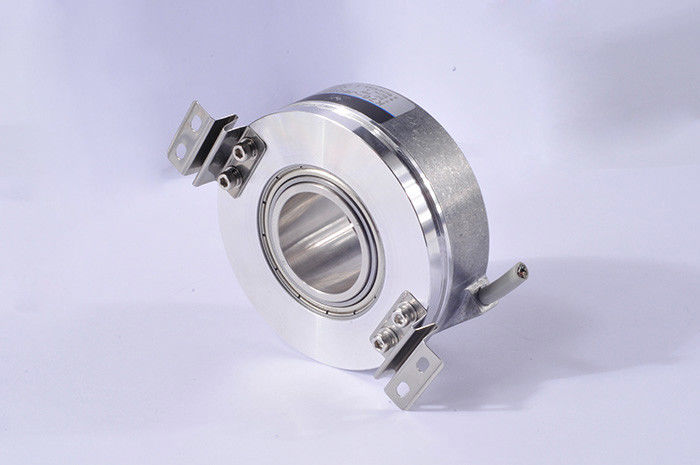

Name: K76 Rotary Pulse Encoder External diameter: 76.5mm
Thickness: 37mm Installation Dimension: R34.5mm(spring Plate 76T69)
Output phase: Phase A+,B+,Z+,A-,B-,Z-,U+,V+,W+,U-,V-,W- Supply voltage: DC5V ; DC8-30V
Outlet Type: Cable Out From Side Consumption Current: 100mA MAX
Allowable Ripple: ≤3%rms Load Voltage: ≤DC30V
High Light:

76.5mm Optical Rotary Encoders


Aluminium Optical Rotary Encoders


76.5mm rotary pulse encoder

K76 optical rotary encoder large aperture encoder hole 30mm thickness 28mm





Supply voltage: DC5V: DC8-30V

Environmental humanity: Operating and storage: 35~85%RH (non-condensing)

Top response Frequency: 100 kHz Max

Shell Material: die cast aluminum

Bearing life: 1.5x109 revs at rated load (100000hrs at 2500RPM)

GND: not connect to encoder

Shaft Material: Stainless steel


Our Service

1 Quick response once received customer’s quotation query

2. Professional engineer team, to solve your problems at any time

3. Various encoder models to be selected

4. Short lead time


About our factory


1. Own brand of "HENGXIANG" encoder

2. Has ISO9001:2000 Quality Management System Certificate and CE Certification

3. Passed Shanghai New and High-tech Achievements Transformation Project.

4. Our target: Meeting Client's Requirement,Creating Social value,serving clients atte


Company profile

Please email us directly or contact online service right now to get the latest video, otherwise you could visit our YOUTUBE page.


Detail Parameter


External dimensions External diameter: 30mm
Thickness: 30mm
Shaft diameter: 4mm(D type)
Encoder type Incremental encoder
Output phase Phase A,B,Z,A-,B-,Z-
Supply voltage DC5V : DC8-30V
Outlet type Cable out from side
Cable out from back
Output mode NPN&PNP
Voltage output
Push-pull output
Difference output(TTL,HTL,RS422)
Environmental temperature Operating temperature: -20~+80° (Non icing)
Storage temperature: -25~+85° (Non icing)
Environmental humanity Operating and storage: 35~85%RH (non-condensing)
Protection grade IP50
Cable length 1000mm




Die Cast Aluminium 76.5mm Optical Rotary Encoders 0




Die Cast Aluminium 76.5mm Optical Rotary Encoders 1

Some Related S30 encoder model number

S30-J3N1000 DC5V

S30-J3F200 DC12V

S30-J2V10 DC5-12V

S30-J2F256 DC5-30V

S30-L4C500 DC5V

S30-L4E512 DC8-30V

S30-J6C1024 DC5V

S30-L6E1200 DC24V

S30-L1N2048 DC5-12V

S30-J1F2500 DC8-12V

S30-J3V1200 DC24V

S30-L3N1024 DC5-24V

S30-L3F600 DC12-24V

S30-J6C360 DC5V



FFS machine

VFFS machine

Packing machinery

Capsule filling machine

Pharmaceutical machine

VVVF motor

Servo motor

Drawing machine



Variable frequency driver

Embroidery machine


Printing machinery




Each single encoder is packed into a single safe carton with protecting bubble.

Then all encoders will be put into a bigger carton to prepare shipment.
