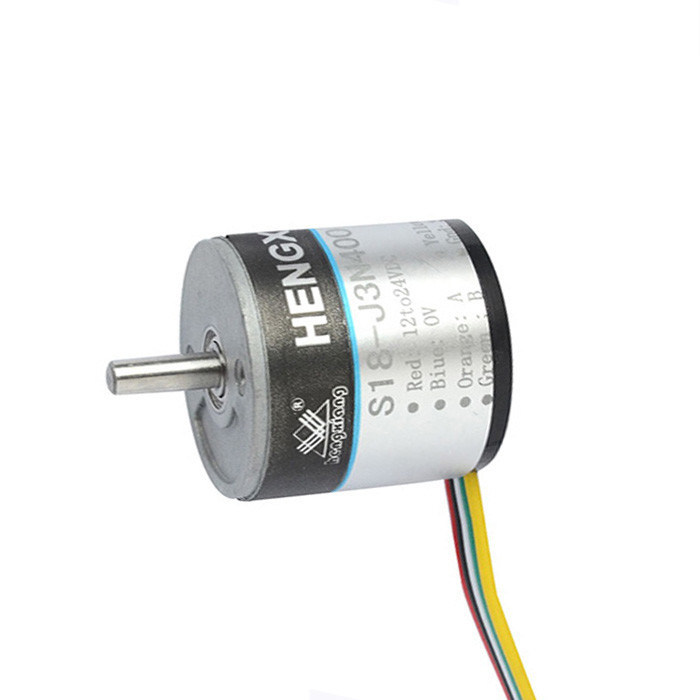

NPN 5000rpm 18mm S18 Incremental Micro Optical Encoder

Place of Origin Shanghai,China
Brand Name HENGXIANG
Certification CE,ISO9001
Model Number S18 incremental encoder
Minimum Order Quantity 1pcs encoder to start order
Price negotiable
Packaging Details each 1 piece/ packed into single carton box
Delivery Time 3-5 working days for sample order, 7-15 working days for mass order
Payment Terms D/A, D/P, T/T, Western Union, Credit Card, Master Card,Paypal, etc
Supply Ability 100K pieces per year
Product Details
External dimensions Thickness: 18mm Thickness 18mm Solid Shaft Diameter: ⌀2.5mm
Resolution  36;50;60;100;200;250;256;360;400;500;512;720;800;1000;1024;1440;1600 Output phase Phase A,B,Z
Outlet Type Cable Out From Side Output mode Collector Open Circuit Output(NPN &PNP)
Environmental temperature  Operating Temperature: -20~+80° (Non Icing)
High Light

S18 Incremental Micro Optical Encoder

,

NPN Micro Optical Encoder

,

18mm Miniature Rotary Encoder

Leave a Message
Product Description

Micro optical encoder S18 thickness 18mm installation size 12mm NPN output ISO 9001



S18 incremental encoder Characteristics

· Power supply voltage 5V or 8-30V

· Circuit output Signal: NPN&PNP

· Sensing basic : photoelectric

· Pulse per turn: 250ppr-1600ppr

· Max motor speed 5000rpm

· Protection level grade IP50

· Ribbon cable outlet

· Cable outlet from Radial or Axial

· Output Phase: ABZ

· Material: Aluminum Alloy

· Top Response Frequency: 100KHZ

· Gross weight 20 grams



Production video

There are plenty of encoder videos if you still have any doubts on encoder, please email us directly or contact online service right now.

At the same time, you could also visit our YOUTUBY page easily.

Most of the encoder series have videos for reference.



S18 encoder Description

Brand HENGXIANG
External dimensions External diameter: 18mm
Thickness: 18mm
Solid Shaft diameter: ⌀2.5mm
Resolution 36;50;60;100;200;250;256;360;400;500;512;720;800;1000;1024;1440;1600
Output phase Phase A,B,Z
Outlet type Cable out from side
  Cable out from back
Output mode Collector open circuit output(NPN &PNP)
Environmental temperature Operating temperature: -20~+80° (Non icing)
  Storage temperature: -25~+85° (Non icing)
Environmental humanity Operating and storage: 35~85%RH (non-condensing)
Top response Frequency 100kHz Max
Top Rev 5000rpm
Protection grade IP50
Package Carton box
Net weight About 20g (with package)
Certification CE
