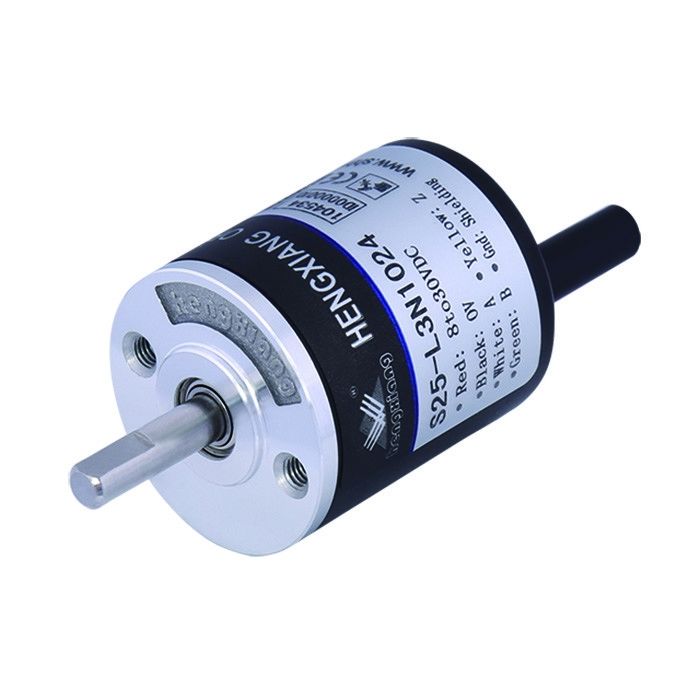

Diameter 25mm 600ppr Robot Optical Rotary Shaft Encoder

Diameter 25mm 600ppr Robot Optical Rotary Shaft Encoder

  • Diameter 25mm 600ppr Robot Optical Rotary Shaft Encoder
Diameter 25mm 600ppr Robot Optical Rotary Shaft Encoder
Product Details:
Place of Origin: Shanghai,China
Brand Name: HENGXIANG
Certification: CE,ISO9001
Model Number: S25
Payment & Shipping Terms:
Minimum Order Quantity: 50Pcs
Price: Consult us
Packaging Details: each 1 piece was packed into single carton box
Delivery Time: 3-5 working days for sample order, 7-15 working days for mass order
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 100K pieces per year
Contact Now
Detailed Product Description
Product Name: S25 Mini Solid Encoder Axial Length 14.5mm Diameter 25mm 600ppr For Robot Items: Basic Parameters
External diameter: 25mm Thickness: 30mm
Solid Shaft diameter: 4mm(D Shape) Encoder Type: Encoder Type
Power Supply Voltage: 5V-30V Pulse Per Turn: 36ppr To 2500ppr
High Light:

Robot Optical Rotary Shaft Encoder

,

600ppr Optical Rotary Shaft Encoder

,

25mm Miniature Rotary Encoder

Diameter 25mm 600ppr Robot Optical Rotary Shaft Encoder
Product Description



Quick Description of S25 Rotary Encoder

 •  Power supply voltage: 5V-30V
 •  Pulse per turn: 36ppr to 2500ppr
 •  Radial cable or Axial cable output
 •  Sensing basic: photoelectric
 •  Protection level grade IP50
 •  Circuit output: NPN&PNP, voltage output, push-pull output, line driver output
 •  Shaft length 14.5mm
 •  Resolution(PPR):Min 36ppr, Max 2500ppr
 •  Output Phase: ABZA-B-Z-

About Encoder Vibration

Vibration acting on an encoder always cause wrong pulse easily.
So we have to pay more attention to encoder working place.
The more pulse per round, the narrower groovy spacing of grating, ore effect to encoder by vibration, when motor speed is low or even stopped, vibration acting on encoder shaft or encoder shell would cause grating vibration, in this way, encoder might show wrong pulse signal.




Product NameS25 mini solid encoder axial length 14.5mm diameter 25mm 600ppr for robot
Items Basic parameters
External DimensionsExternal diameter: 25mm
Thickness: 30mm
Solid shaft diameter: 4mm(D shape)
Encoder TypeIncremental encoder
Resolution20;25;36;50;60;100;200;250;256;300;360;400;500;512
600;625;720;1000;1024;1200;1250;1440;2000;2048;2500
Output PhasePhase A,B,Z,A-,B-,Z-
Supply VoltageDC5V; DC8-30V
Outlet TypeCable out from side
Cable out from back
Output ModeNPN&PNP
Voltage output
Push-pull output
Difference output(TTL,HTL,RS422)
Environmental TemperatureOperating temperature: -20~+80° (Non icing)
Storage temperature: -25~+85° (Non icing)
Environmental Humanity

Operating and storage: 35~85%RH (non-condensing)

Protection GradeIP50

Cable Length

1M (cable length could be added appropriately by 1M (cable length could be added appropriately by

Consumption Current

100mA Max

Allowable Ripple

≤3%rms

Insulation Strength

AC500V 60s

Insulation Resistance

10MΩ

Mark to Space Ratio

45% to 55%

Top Response Frequency

100kHz Max

Shell Material

die cast aluminum

Bearing Life

1.5x109 revs at rated load(100000hrs at 2500RPM)

Shaft Material

Stainless steel

PackageCarton box
Net Weight50g (with package)
CertificationCE


Diameter 25mm 600ppr Robot Optical Rotary Shaft Encoder 0


ENCODER TECHNOLOGY THEORY

An incremental rotary encoder outputs a certain amount of Pulses per Revolution. The higher this PPR number, the smaller the angle between each pulse. This PPR number is fixed for ordinary incremental encoders. Programmable incremental encoders can adjust this value to a desired number by a software change.

Today most incremental encoders have a Push-Pull (HTL) or RS422 (TTL) output driver, these have replaced most of the older output circuits like Open Collector NPN, Open Collector PNP, Voltage Output.

Push-Pull (HTL) circuits, also known as Totem Pole, provide a signal level which corresponds to the applied supply voltage. The supply voltage typically ranges from 8 to 30 VDC.

With proper connections you can use the Push Pull interface to replace true open collector circuits by using an external diode connected in a way to limit the direction of the current for RS422 (TTL) circuits provide a constant 5 V signal level that is not dependent on the supply voltage. Two supply voltage ranges can be selected: From 4.75 to 5.5 VDC (can be used to replace open collector output drivers) or from 8 to 30 VDC. Using differential signals the output fully complies to the RS422 standard.
