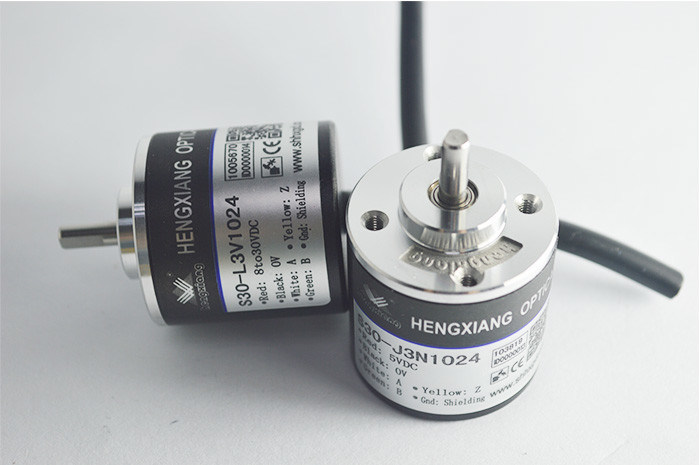

DC30V 2500ppr Differential Miniature Rotary Encoder

DC30V 2500ppr Differential Miniature Rotary Encoder

  • High Light

    Differential Miniature Rotary Encoder


    2500ppr Miniature Rotary Encoder


    DC30V Miniature Rotary Encoder

  • Product Name
    2500ppr Miniature Rotary Encoder Shaft 4mm Differential Output DC5-30V S30 Encoder
  • External diameter
  • Thickness
  • Shaft diameter
    4mm(D Type)
  • Supply voltage
    DC5V : DC8-30V
  • Place of Origin
  • Brand Name
  • Certification
  • Model Number
  • Minimum Order Quantity
  • Price
    Consult us
  • Packaging Details
    each 1 piece was packed into single carton box
  • Delivery Time
    3-5 working days for sample order, 7-15 working days for mass order
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union, MoneyGram
  • Supply Ability
    100K pieces per year

DC30V 2500ppr Differential Miniature Rotary Encoder


P   Product Description

Notice for encoder installation
    1. Please read the encoder specification carefully before installation
    2. Encoder is belong to precision instrument, so we should avoid shock or vibration to protect interior parts.
    3. The power supply voltage must be holded within specified range, or encoder could be destroyed.
    4. Notice coaxially requirements when you install the power shaft, please use flexible coupling and do not press encoder forcibly.
    5. Shielding cable of encoder must be connected to avoid electromagnetism interference of alternating current, cables of encoder should be           layout individually.
    6. Wiring diagram connection should be strictly follow the specified color in catalogue, or encoder interior circuit may be destroyed
    7. Encoder should be apart from powerful magnetic field, dust, oil, water, higher (lower) temperature and caustic or flammable material during  working.
    8. The encoder cable signal can’t be drew or bent forcibly.

Product Information for S30 incremental encoder

Product Name

2500ppr miniature rotary encoder shaft 4mm differential output DC5-30V S30 encoder


Basic parameters

External Dimensions

External diameter: 30mm

Thickness: 30mm

Shaft diameter: 4mm(D type)

Encoder type

Incremental encoder



Output phase

Phase A,B,Z,A-,B-,Z-

Supply voltage

DC5V : DC8-30V

Outlet TypeCable out from side
Cable out from back
Output Mode

Voltage output
Push-pull output
Difference output(TTL,HTL,RS422)

Environmental Temperature

Operating temperature: -20~+80° (Non icing)

Storage temperature: -25~+85° (Non icing)

Environmental Humanity

Operating and storage: 35~85%RH (non-condensing)

Protection Grade



Carton box

Net Weight

60g (with package)

PackageCarton box


DC30V 2500ppr Differential Miniature Rotary Encoder 0



• Petrochemical industry

• Pharmaceutical industry

• Food industry

• Aviation and aerospace industry

• Architectural decoration industry

• Oil and gas industry

• FFS machine

• VFFS machine

• Packing machinery

• Capsule filling machine

• Pharmaceutical machine

• VVVF motor

• DC motor

Payment Terms:

      1. T/T, western union, credit card, Paypal, etc
      2. 3-5 working days after payment received
      3. Encoders will be shipped once ready


Production Date

      1. for 1-10 samples: 3-5 working days
      2. for 20-50 mass production: 7-10 working days
      3. for over 100pcs, production will be discussed with customers and ship on time



 •  Goods can shipped via TNT, FedEx, UPS, DHL, EMS, etc.

 • You could select the express according to your requirements if freight collector

 • If you do not have any courier account, we will check and find a cheapest and safety express for you.

 • Our factory has 30% discount with most courier company, so price could be as cheap as possible.
