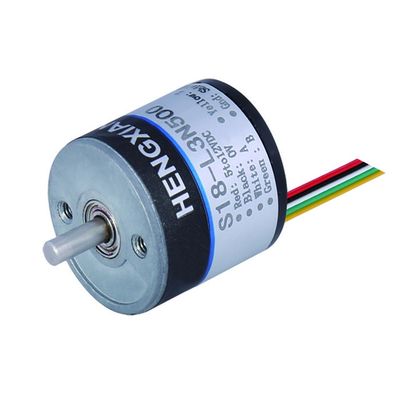

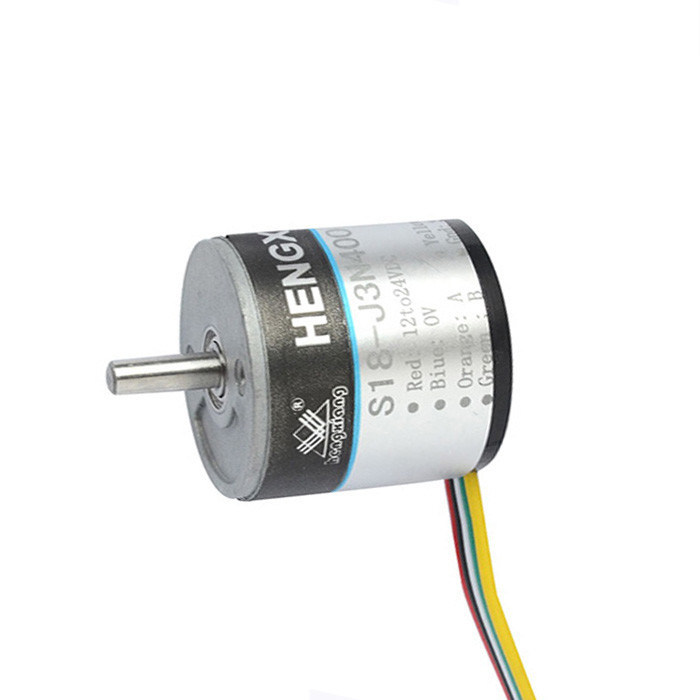

S18 Miniature Rotary Encoder 1600 Resolution For Subminiature Motor
-
High Light
S18 Miniature Rotary Encoder
,Miniature Rotary Encoder 1600 Resolution
,Subminiature Motor Rotary Encoder
-
Product NameS18 Miniature Rotary Encoder AB Phase NPN Output 1600 Resolution For Subminiature Motor
-
Thickness Of Encoder Body18mm
-
Solid Shaft Diameter2.5mm, With D Shape
-
Shaft Length7mm
-
Installation Diameter Size12mm
-
Power Supply Voltage5V Or 8-30V
-
Place of OriginShanghai,China
-
Brand NameHENGXIANG
-
CertificationCE,ISO9001
-
Model NumberS18
-
Minimum Order Quantity1Pcs
-
PriceConsult us
-
Packaging Detailseach 1 piece was packed into single carton box
-
Delivery Time3-5 working days for sample order, 7-15 working days for mass order
-
Payment TermsL/C, D/A, D/P, T/T, Western Union, MoneyGram
-
Supply Ability100K pieces per year
S18 Miniature Rotary Encoder 1600 Resolution For Subminiature Motor
S18 miniature rotary encoder AB phase NPN output 1600 resolution for subminiature motor
Product Description
Product Basis information of S18 mini encoder
Thickness of encoder body 18mm
Solid shaft diameter 2.5mm, with D shape
Shaft length 7mm
Installation diameter size12mm
Power supply voltage 5V or 8-30V
Circuit output Signal: NPN&PNP
Sensing basic : photoelectric
Pulse per turn: 250ppr-1600ppr
Max motor speed 5000rpm
Protection level grade IP50
Ribbon cable outlet
Specification
| Product Name |
S18 miniature rotary encoder AB phase NPN output 1600 resolution for subminiature motor |
|
Brand |
HENGXIANG |
| Encoder Type | Incremental encoder |
|
External dimensions |
External diameter: 18mm Thickness: 18mm Solid Shaft diameter: ⌀2.5mm |
|
Resolution |
36;50;60;100;200;250;256;360;400;500;512；720；800；1000;1024；1440;1600 |
|
Output phase |
Phase A,B,Z |
|
Supply voltage |
DC5V & DC8--30V |
|
Outlet type |
Cable out from side Cable out from back |
|
Output mode |
Collector open circuit output(NPN &PNP) |
|
Environmental temperature |
Operating temperature: -20~+80° (Non icing) Storage temperature: -25~+85° (Non icing) |
|
Environmental humanity |
Operating and storage: 35~85%RH (non-condensing) |
|
Top response Frequency |
100kHz Max |
|
Top Rev |
5000rpm |
|
Protection grade |
IP50 |
|
Consumption current |
50mA Max |
|
Rise/ Fall time |
100nsec Max |
|
Shaft Load |
Radiel: 2N; Axial:2N |
|
Vibration(endure) |
Amplitude 0.75mm,10-50Hz,1 hour for X/Y/Z direction individually |
|
Shock(endure) |
49/m/s2,three times for X,Y,Z direction individually |
|
Shaft Material |
304 stainless steel |
|
Cable length |
150mm |
| Certification | CE |
Principle of encoder
Mechanical degree is the actual rotation of the shaft in degrees. Electrical degree is used for electrical signals. The required time for completing one alternating voltage/current cycle is defined as 360 electrical degrees (el°). For incremental encoders, one cycle is equal to one complete pulse. With a given PPR the electrical degree can be converted to mechanical degree for any incremental encoder.
Every 90 el° the incremental encoder outputs a rising or falling edge on the “A” or “B” output that can be interpreted as a count. If an encoder outputs 1000 PPR, a counter can interpret 4000 counts (4 counts each pulse).
Package
Each single encoder is packed into a single safe carton with protecting bubble.
Then all encoders will be put into a bigger carton to prepare shipment.
About Our Factory
- Own brand of "HENGXIANG" encoder
- Has ISO9001:2000 Quality Management System Certificate and CE Certification
- Invention patents five and utility model patents five
- Passed Shanghai New and High-tech Achievements Transformation Project.
- Our target: Meeting Client's Requirement,Creating Social value,serving clients attentively and Achieving win-win.
- Located in Shanghai city
- 20-30 experienced workers
Question about encoders or our factory before ordering
Q: Where is your factory?
A: Our factory is located on Shanghai City.
Q: Can I pay a visit to your factory?
A: Yes, you we welcome to visit our factory at any time if convenient.
Q: How long is your delivery time?
A: Usually 3 working days for sample, 7-15 days for mass production,
The production date is according to order quantity.
Q: What is the highest resolution of your encoder products?
A: The highest resolution is 80000ppr, you can email us for more information.
Q: Can your encoder be customized?
A: Yes, our encoder can be customized according to your requirements,
Q: Do you test your encoder product before shipment?
A: Yes, we 100% test and examine every piece before shipping to make sure it work well on your device.
Our products are sold all over the world, you can rest assured.
