IP50 Solid Shaft 4mm S25 Miniature Rotary Encoder

IP50 Solid Shaft 4mm S25 Miniature Rotary Encoder

Products - Miniature Rotary Encoder
  • Highlight

    S25 Miniature Rotary Encoder

    ,

    Solid Shaft Miniature Optical Encoder

    ,

    IP50 Miniature Rotary Encoder

  • Product Name
    Installation Size 18mm Solid Shaft 4mm S25 Miniature Rotary Encoder 8-30VDC IP50
  • External diameter
    25mm
  • Thickness
    30mm
  • Solid Shaft diameter
    4mm(D Shape)
  • Supply voltage
    DC5V; DC8-30V
  • Slew Speed
    5000rpm
  • Place of Origin
    Shanghai,China
  • Brand Name
    HENGXIANG
  • Certification
    CE,ISO9001
  • Model Number
    S25
  • Minimum Order Quantity
    1Pcs
  • Price
    Consult us
  • Packaging Details
    each 1 piece was packed into single carton box
  • Delivery Time
    3-5 working days for sample order, 7-15 working days for mass order
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union, MoneyGram
  • Supply Ability
    100K pieces per year

IP50 Solid Shaft 4mm S25 Miniature Rotary Encoder

  • IP50 Solid Shaft 4mm S25 Miniature Rotary Encoder
Get Price Contact Now

IP50 Solid Shaft 4mm S25 Miniature Rotary Encoder



 Product Description



    Characteristics

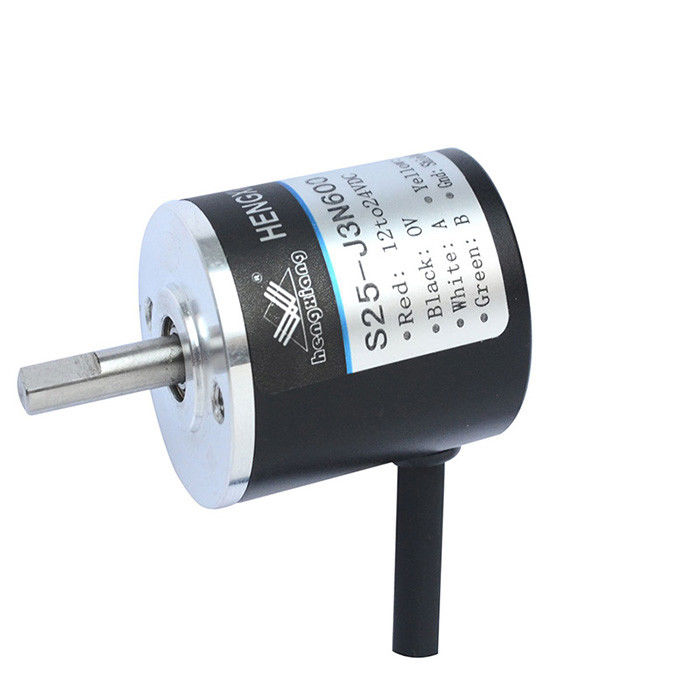

Product Name

Installation size 18mm solid shaft 4mm S25 miniature rotary encoder 8-30VDC IP50
Items Basic parameters
External dimensions External diameter: 25mm
Thickness: 30mm
Solid shaft diameter: 4mm(D shape)
Encoder type Incremental encoder
Resolution 20；25；36；50;60;100;200;250;256;300;360;400;500;512
600;625;720;1000;1024;1200;1250;1440;2000;2048;2500
Output phase Phase A,B,Z,A-,B-,Z-
Supply voltage DC5V; DC8-30V
GND not connect to encoder
Slew Speed 5000rpm
Insulation strength AC500V 60s
Insulation resistance 10MΩ
Mark to Space ratio 45% to 55%
Top response Frequency 100kHz Max
Shell Material die cast aluminum
Bearing life 1.5x109 revs at rated load(100000hrs at 2500RPM)
Shaft Material Stainless steel
Vibration(endure) Amplitude 0.75mm,10-55Hz,1 hour for X/Y/Z direction individually
Shock(endure) 49/m/s2,three times for X,Y,Z direction individually
package Carton box
Net weight 50g (with package)
Certification CE



IP50 Solid Shaft 4mm S25 Miniature Rotary Encoder 0

 Applications

  • Stock driver
  • PMDC geared motor
  • Brushless dc motor
  • Servo motor
  • Drawing machine
  • VFD
  • Inverter
  • Variable frequency driver
  • Embroidery machine
  • Elevator
  • Printing machinery
  • Projector
  • Paper equipment
  • Industrial machinery

Some Related S25 encoder model number

S25-J3N36 DC5V

S25-J3F50 DC12V

S25-L1V60 DC24V

S25-L1F200DC5-12V

S25-J4C250 DC5V

S25-J4E1200 DC8-30V

S25-L6E2048 DC12-24V

S25-L6C1440 DC4.5V



Matters needing attention

  1. Must choose the power supply voltage: DC5V or DC8-30V
  2. Must choose leaf spring plate model number if you select hollow shaft encoder
  3. Please advise the motor speed (RPM) that you actually use
  4. If you have any other requirements, please provide detail parameters



 Production date

  1. for 1-10 samples: 3-5 working days
  2. for 20-50 mass production: 7-10 working days
  3. for over 100pcs, production will be discussed with customers and ship on time



More Information
