NPN Hollow AB Phase K18 Miniature Rotary Encoder

Place of Origin Shanghai,China
Brand Name HENGXIANG
Certification CE,ISO9001
Model Number K18
Minimum Order Quantity 1Pcs
Price Consult us
Packaging Details each 1 piece was packed into single carton box
Delivery Time 3-5 working days for sample order, 7-15 working days for mass order
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 100K pieces per year
Product Details
Product Name K18 Miniature Rotary Encoder Blind Hole Shaft 2.5mm AB Phase NPN Output Hollow Encoder External diameter 18mm
Thickness 15.3mm Hollow Shaft Diameter 2.5mm
Output phase Phase A,B,Z Supply voltage DC5V;DC8-30V
High Light

K18 Miniature Rotary Encoder

,

AB Phase Miniature Rotary Encoder

,

NPN Hollow Miniature Rotary Encoder

Leave a Message
Product Description





 Product Description




 K18 miniature rotary encoder blind hole shaft 2.5mm AB phase NPN output hollow encoder



Encoder Catalogue

If you have already selected the encoder model you are going to order, please email us directly or contact online service right now to get the latest catalogue.

But if you are still have any doubts on choosing a right encoder model number, you are also free to contact us to get the related catalogue.



  Feather of K18 encoder



Product Name

K18 miniature rotary encoder blind hole shaft 2.5mm AB phase NPN output hollow encoder

Items Basic parameters
Brand HENGXIANG
Encoder type Incremental encoder
External diameter 18mm
Thickness 15.3mm
Installation dimension R11mm, spring plate 18T22
Hollow shaft diameter 2.5mm
Resolution 250;256;360;400;500;512;720;800;1000;1024;1440;1600
Output phase Phase A,B,Z
Supply voltage DC5V ; DC8-30V
Outlet type Cable out from side
Cable out from back
Output mode Collector open circuit output(NPN &PNP)
Protection grade IP50
Shaft Material Stainless steel
Shell Material aluminum alloy
Cable length 150mm
Certification CE
package Carton box
Net weight About 20g (with package)

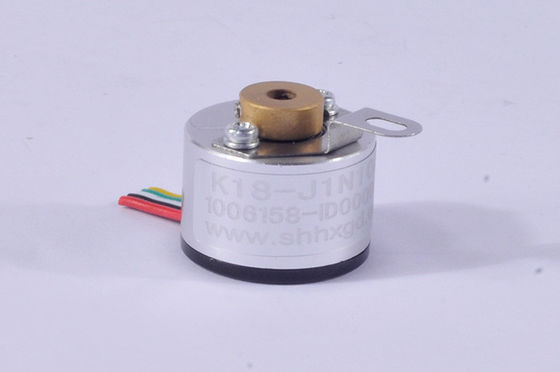

NPN Hollow AB Phase K18 Miniature Rotary Encoder 0



Applications


  • Petrochemical industry
  • Pharmaceutical industry
  • Food industry
  • Aviation and aerospace industry
  • Architectural decoration industry
  • Oil and gas industry
  • FFS machine
  • VFFS machine
  • Servo motor
  • Drawing machine
  • VFD
  • Inverter
  • Variable frequency driver
  • Embroidery machine
  • Elevator
  • Printing machinery
  • Projector
  • Injection molding machine
  • Disc shoe machine,
  • Textile dyeing





Our Service




  • Quick response once received customer’s quotation query
  • Professional engineer team, to solve your problems at any time
  • Strictly inspection before shipment
  • Various encoder models to be selected
  • Short lead time
  • High quality standard



About Encoder Vibration




Vibration acting on an encoder always cause wrong pulse easily.

So we have to pay more attention to encoder working place.

The more pulse per round, the narrower groovy spacing of grating, ore effect to encoder by vibration, when motor speed is low or even stopped, vibration acting on encoder shaft or encoder shell would cause grating vibration, in this way, encoder might show wrong pulse signal.
