10mm Photoelectric K22 Quadrature Optical Encoder

10mm Photoelectric K22 Quadrature Optical Encoder

  • 10mm Photoelectric K22 Quadrature Optical Encoder
10mm Photoelectric K22 Quadrature Optical Encoder
Product Details:
Place of Origin: Shanghai,China
Brand Name: HENGXIANG
Certification: CE,ISO9001
Model Number: K22
Payment & Shipping Terms:
Minimum Order Quantity: 1Pcs
Price: Consult us
Packaging Details: each 1 piece was packed into single carton box
Delivery Time: 3-5 working days for sample order, 7-15 working days for mass order
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 100K pieces per year
Contact Now
Detailed Product Description

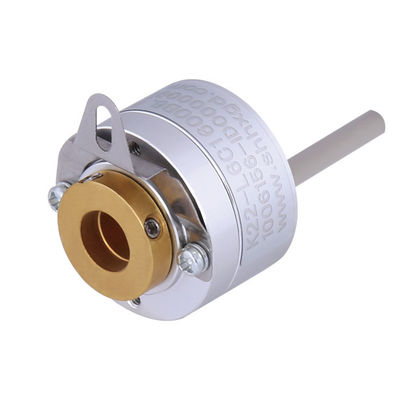

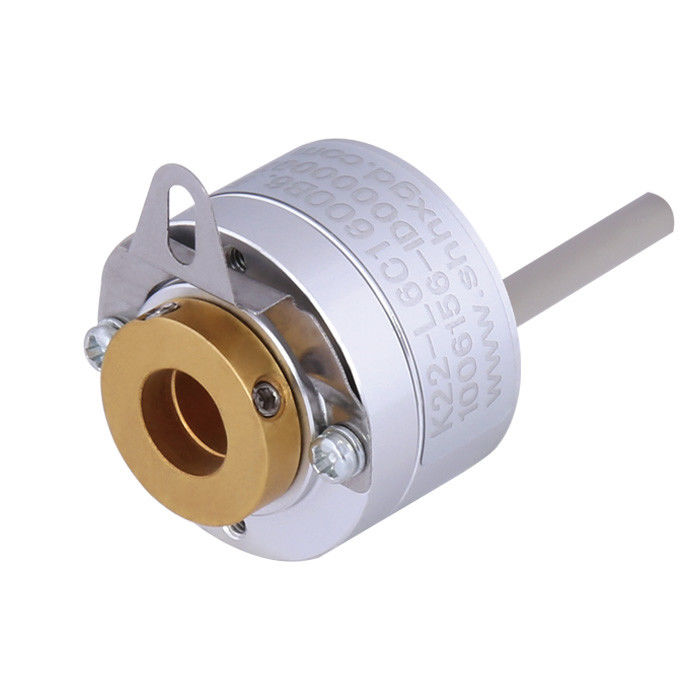

Product Name: K22 Quadrature Optical Encoder Blind Hole 6mm Axis Depth 10mm Photoelectric Rotary Encoder Supply voltage: DC5V ;DC8-30V
Cable length: 500mm Protection grade: IP50
Consumption Current: 100mA MAX Top Response Frequency: 300KHZ
High Light:

K22 Quadrature Optical Encoder

,

IP50 Quadrature Optical Encoder

,

10mm Photoelectric Rotary Encoder

K22 quadrature optical encoder blind hole 6mm axis depth 10mm photoelectric rotary encoder



 Product Description




Related K22 encoder model number

K22-J 3 N 1024 B6.5 DC5V

K22-J 3 N 1000 B4 DC12V

K22-L 6 E 1440 B6 DC8-30V

K22-L 6 C 1600 B5 DC5V

K22-J 3 NH 360 B6.5 DC12V

K22-L 3 NH 250 B6.5 DC24V

K22-L 2 N 800 B5 DC8-30V

K22-J 1 N 250 B6.5 DC5-30V



Specification

Product Name

K22 quadrature optical encoder blind hole 6mm axis depth 10mm photoelectric rotary encoder

Items Basic parameters
Brand HENGXIANG
Encoder type Incremental encoder
Supply voltage DC5V ; DC8-30V
Outlet type Cable out from side
Cable out from back
Output mode Collector open circuit output(NPN &PNP)
TTL(DC5V)
HTL(DC8-30V)
Protection grade IP50
Cable length 500mm
Consumption current 100mA MAX
Top response frequency 10mm Photoelectric K22 Quadrature Optical Encoder 0300KHZ
Rise/ Fall time 1usec Max( 1000mm cable)
starting torque less than 5x 10-4 N.m
Intertia moment less than 1x 10-6kg.m2
Shaft load Radial 2N; Axial 2N
Top REV 5000r rpm
Environmental temperature Operating:-20 ~+80°;storage:-25 ~+85°
Environmental humidity Operating and storage: 35-85%RH(noncondensing)
Vibration(endure) Amplitude 0.75mm,10-50Hz,1 hours for three axis individually
Sock(endure) 49m/s2 ,three times for X,Y,Z direction individually
Shell Material aluminum alloy
Certification CE
package Carton box



10mm Photoelectric K22 Quadrature Optical Encoder 1



Why choose us?




HENGXIANG brand--The trustworthy partner
CE approved--advantaged product quality;
Fast delivery--strong stock product ability;

Factory directly provide a competitive price;
One-stop service--for your efficient purchasing experience;

OEM design accepted--customized design, your own brand accepted.



Payment terms:




1. T/T, western union, credit card, Paypal, etc

2. 3-5 working days after payment received

3. Encoders will be shipped once ready



Matters needing attention




1. Must choose the power supply voltage: DC5V or DC8-30V

2. Must choose leaf spring plate model number if you select hollow shaft encoder

3. Please advise the motor speed (RPM) that you actually use

4. If you have any other requirements, please provide detail parameters



Notice for encoder installation




1. Please read the encoder specification carefully before installation

2. Encoder is belong to precision instrument, so we should avoid shock or vibration to protect interior parts.

3. The power supply voltage must be holded within specified range, or encoder could be destroyed.

4. Notice coaxially requirements when you install the power shaft, please use flexible coupling and do not press encoder forcibly.

5. Shielding cable of encoder must be connected to avoid electromagnetism interference of alternating current, cables of encoder should be layout individually.

6. Wiring diagram connection should be strictly follow the specified color in catalogue, or encoder interior circuit may be destroyed

7. Encoder should be apart from powerful magnetic field, dust, oil, water, higher (lower) temperature and caustic or flammable material during working.

8. The encoder cable signal can’t be drew or bent forcibly.
