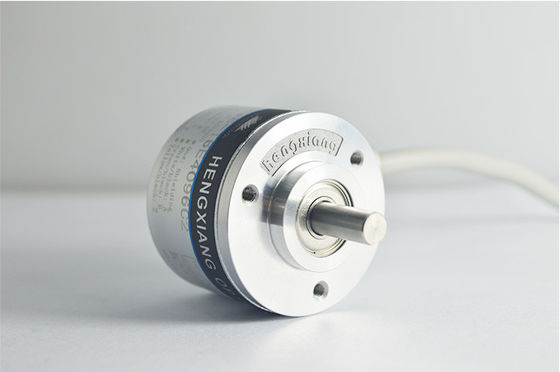

S38 4096ppr Elevator Photoelectric Solid Shaft Encoder

S38 4096ppr Elevator Photoelectric Solid Shaft Encoder

  • High Light

    4096ppr Solid Shaft Encoder

    ,

    Elevator Solid Shaft Encoder

    ,

    Photoelectric Solid Shaft Encoder

  • Output
    Push-pull/Line Driver/Voltage/NPN/PNP Open Collector
  • Supply Voltage
    5V;5V~30V;10V~30V
  • Type
    Elevator Parts
  • Material
    Stainless Steel Shaft
  • Warranty
    12 Months
  • Operating Temperature
    -20 °C(-40 °C)- +85°C
  • Current Consumption
    ≤150mA
  • Thickness
    28mm
  • Protection Class
    Up To IP68
  • Resolution
    10~5000P/R
  • Place of Origin
    Shanghai,China
  • Brand Name
    HENGXIANG
  • Certification
    CE,ISO9001
  • Model Number
    S38 solid shaft encoder
  • Minimum Order Quantity
    1pcs encoder to start order
  • Price
    negotiable
  • Packaging Details
    each 1 piece was packed into single carton box
  • Delivery Time
    3-5 working days for sample order, 7-15 working days for mass order
  • Payment Terms
    D/A, D/P, T/T, Western Union, Credit Card, Master Card,Paypal, etc
  • Supply Ability
    100K pieces per year

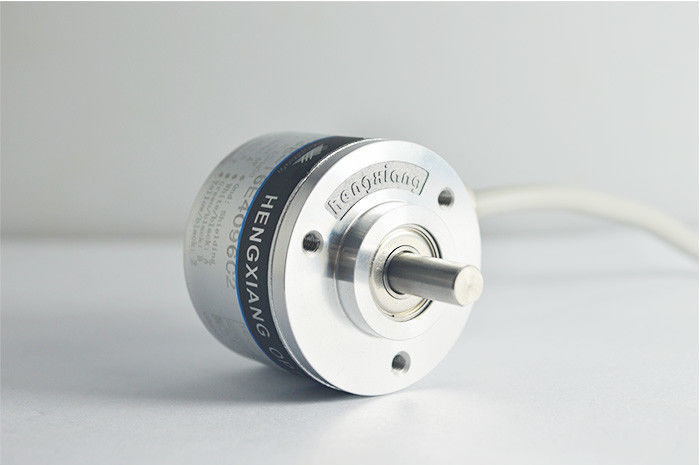

S38 4096ppr Elevator Photoelectric Solid Shaft Encoder

S38 solid shaft encoder 4096ppr open-collector output DC5-30V E6B2-CWZ1X encoder



Production video

There are plenty of encoder video if you still have any doubts on encoder, please email us directly or contact online service right now.

At the same time, you could also visit our YOUTUBY page easily.

Most of the encoder series have videos for reference.



Key Features for S38 rotary encoder:

Max resolution16384ppr

External diameter 38mm

Thickness 28mm

Shaft length 13mm

Power supply voltage 5V or 8--30V

Axial Cable outlet or Radial Cable outlet

Sensing basic : photoelectric

Pulse per turn:50ppr to 16384ppr

Solid shaft 6mm with D shape

Output Phase: A,A+B, or ABZ or A+B+Z+A-B-Z-

Gross weight 120 grams

Slew speed 500 round per minute



Product introduction

ITEM PARAMTERS
Brand HENGXIANG
Encoder type Incremental encoder
External diameter 38mm
Thickness 28mm
Shaft length 13mm
Solid Shaft diameter 6mm(D shape)
Certification CE/ ISO9001
Consumption current 100mA MAX
Top response frequency 300KHZ
Allowable ripple ≤3%rms
Load Voltage ≤DC30V
starting torque less than 4.4X10-3 N.m
Intertia moment less than 1.5x 10-6kg.m2
Shaft load Radial 40N; Axial 20N
Top REV 5000RPM ;IP65≤3000r rpm





Shipment

o Goods can shipped via TNT, FedEx, UPS, DHL, EMS, etc.

o You could select the express according to your requirements if freight collector

o If you do not have any courier account, we will check and find a cheapest and safety express for you.

o Our factory has 30% discount with most courier company, so price could be as cheap as possible.



Notice for encoder installation

1. Please read the encoder specification carefully before installation

2. Encoder is belong to precision instrument, so we should avoid shock or vibration to protect interior parts.

3. The power supply voltage must be holded within specified range, or encoder could be destroyed.

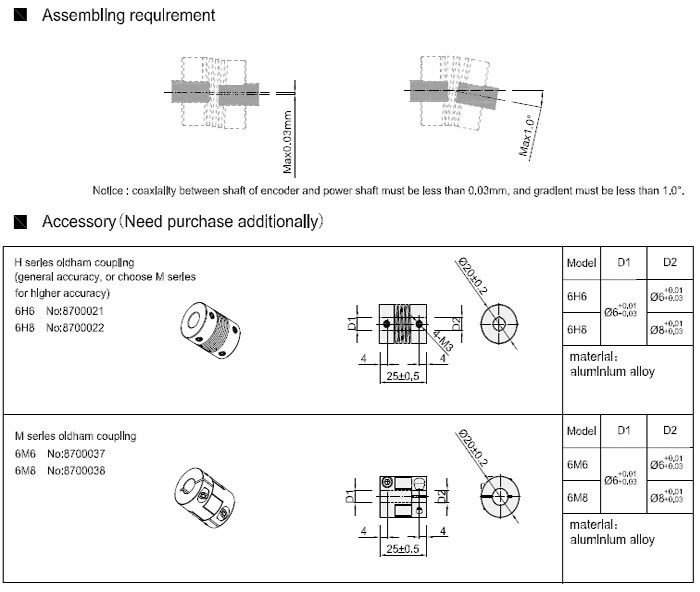

4. Notice coaxially requirements when you install the power shaft, please use flexible coupling and do not press encoder forcibly.

5. Shielding cable of encoder must be connected to avoid electromagnetism interference of alternating current, cables of encoder should be layout individually.

6. Wiring diagram connection should be strictly follow the specified color in catalogue, or encoder interior circuit may be destroyed

7. Encoder should be apart from powerful magnetic field, dust, oil, water, higher (lower) temperature and caustic or flammable material during working.

8. The encoder cable signal can’t be drew or bent forcibly.
