NPN Position Sensor Replacement Solid Shaft Encoder

NPN Position Sensor Replacement Solid Shaft Encoder

  • NPN Position Sensor Replacement Solid Shaft Encoder
  • NPN Position Sensor Replacement Solid Shaft Encoder
NPN Position Sensor Replacement Solid Shaft Encoder
Product Details:
Place of Origin: Shanghai,China
Brand Name: HENGXIANG
Certification: CE,ISO9001
Model Number: Solid shaft 10mm external 58mm Push-pull output S58 encoder
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs encoder to start order
Price: negotiable
Packaging Details: each 1 piece was packed into single carton box
Delivery Time: 3-5 working days for sample order, 7-15 working days for mass order
Payment Terms: D/A, D/P, T/T, Western Union, Credit Card, Master Card,Paypal, etc
Supply Ability: 100K pieces per year
Contact Now
Detailed Product Description
Product Name: Solid Shaft Encoder Usage: Position Sensor
Supply Voltage: DC5V/8V-26V/10V-30V/12V Theory: Current Sensor
Shaft Diameter: 6mm (D Type) Output: Analog Sensor,NPN /PNP,Push-pull/Line Driver/Voltage/NPN/PNP Open Collector,square-wave Signal
Resolution: Max To 16384 PPR,10~5000P/R Working Temperature: -40℃~60℃ Or Custom
External Diameter: 58mm Warranty: 12 Months,2 Years
High Light:

Replacement Solid Shaft Encoder

,

NPN Solid Shaft Encoder

,

OD 58mm Solid Shaft Encoder

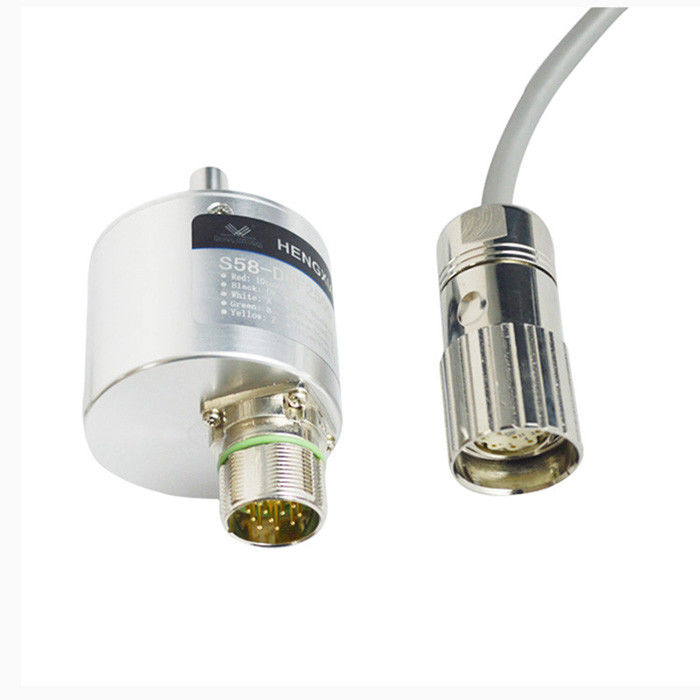

Solid shaft 10mm external 58mm Push-pull output S58 encoder replacement RI58-D1024AI



Why choose us?

HENGXIANG brand--The trustworthy partner
CE approved--advantaged product quality;
Fast delivery--strong stock product ability;

Factory directly provide a competitive price;
One-stop service--for your efficient purchasing experience;

OEM design accepted--customized design, your own brand accepted.



Part number of S58 you would like to choose:

S58-D3F1024B10

S58-T3F2048B9.52

S58-T3N2500B10

S58-D3N4096B9.54

S58-Q3V5000

S58-Q3C7200B10

S58-C6C10000B8

S58-C6C20000B10

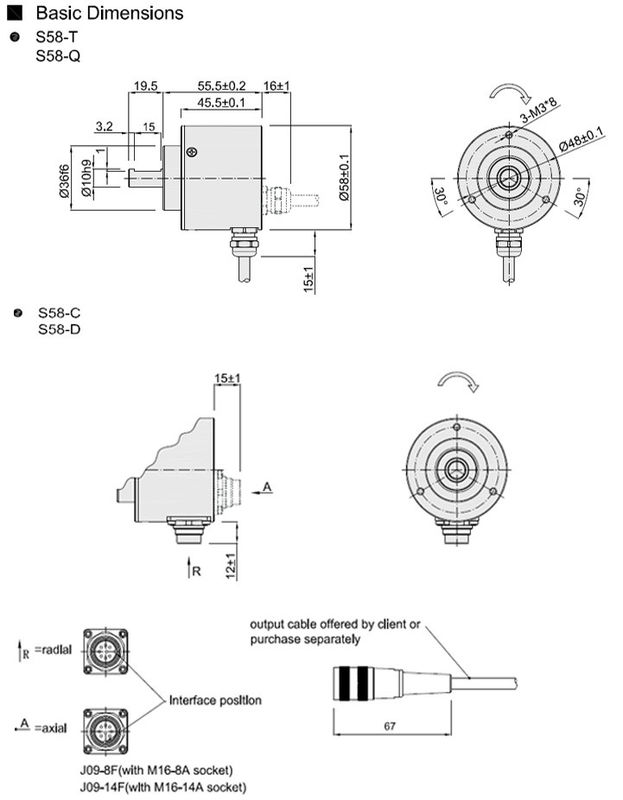

Parameter table for S58 solid shaft encoder

Brand HENGXIANG
Encoder type Incremental encoder
External diameter 58mm
Thickness 46mm
Installation dimension diameter 48mm
Shaft length 19.5mm
Outlet type Cable out from back
  Cable out from side
  Socket out from side
  Socket out from back
Output mode NPN Collector open circuit output
  Voltage output
  Push-pull output
Difference output Long line drive (26LS31)
compatible RS422
Long line drive (RT7272)
Protection grade IP50 ; IP65
Cable length 1M (cable length could be added appropriately by
require, but it need payment individually)
Consumption current 100mA MAX
Top response frequency NPN Position Sensor Replacement Solid Shaft Encoder 0300KHZ
Allowable ripple ≤3%rms
Load Voltage ≤DC30V
Insulation strength AC500V 60s
Insulation resistance 10MΩ
GND not connect to encoder



Connecting Coupling Part Number:

There are some applications that you may need to use a coupling to connect encoder to the motor shaft, there’re a few tips to select a coupling type

1 you need to consider the magnitude and nature of the required transmitted torque, the requirements for buffering and damping functions, and whether resonance may occur.

2 you also need to think about the degree of relative displacement of the two axis axes caused by manufacturing and assembly errors, shaft loading and thermal expansion deformation, and relative motion between components.

3 regarding the applicable dimensions and installation methods, in order to facilitate the assembly, adjustment and maintenance of the necessary operating space. For large couplings, it should be possible to disassemble the shaft without axial movement.

4. In addition, consideration should be given to the working environment, service life, and lubrication, sealing, and economic conditions. Refer to the various coupling characteristics and choose a suitable coupling type.

5. Here are some coupling part number, please carefully check before ordering.

4H4

6H6

6H8

8H8

8H10

6M6

6M8

8M8

8M10
