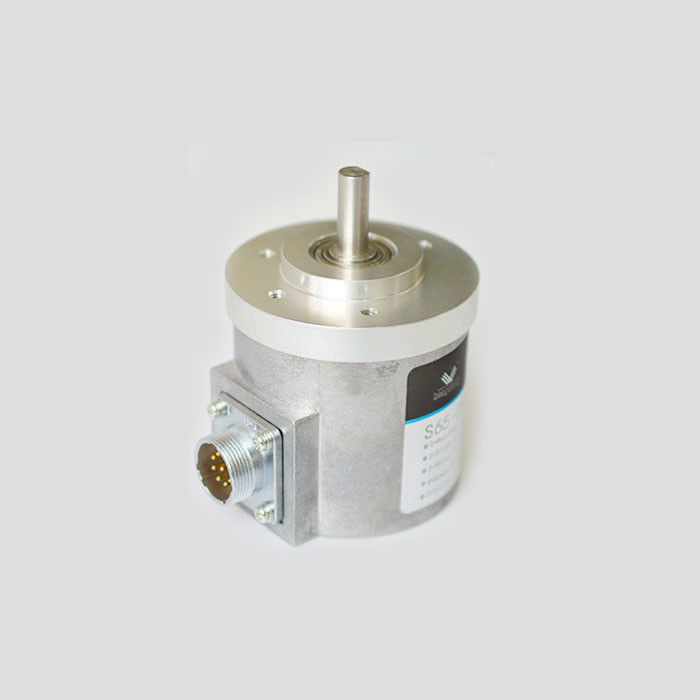

300KHZ 150mA Incremental Optical SS Solid Shaft Encoder

300KHZ 150mA Incremental Optical SS Solid Shaft Encoder

  • High Light

    Optical Solid Shaft Encoder

    ,

    150mA Solid Shaft Encoder

    ,

    300KHZ Solid Shaft Encoder

  • Product Name
    Solid Shaft Encoder
  • Theory
    Optical Sensor
  • Current Consumption
    ≤150mA
  • Working Temperature
    -40℃~60℃ Or Custom
  • Output
    Analog Sensor
  • Warranty
    2 Years
  • Operating Temperature
    -20 °C(-40 °C)- +85°C
  • Resolution
    10~5000P/R
  • Material
    Aluminum Alloy
  • Thickness
    28mm
  • Shaft Diameter
    6mm (D Type)
  • External Diameter
    25mm
  • Protection Class
    Up To IP68
  • Output Circuit
    Voltage/Open Collector/Puse-pull/Line Driver
  • Place of Origin
    Shanghai,China
  • Brand Name
    HENGXIANG
  • Certification
    CE,ISO9001
  • Model Number
    S65 solid shaft encoder I65-P-1024 substitute encoder
  • Minimum Order Quantity
    1pcs encoder to start order
  • Price
    negotiable
  • Packaging Details
    each 1 piece was packed into single carton box
  • Delivery Time
    3-5 working days for sample order, 7-15 working days for mass order
  • Payment Terms
    D/A, D/P, T/T, Western Union, Credit Card, Master Card,Paypal, etc
  • Supply Ability
    100K pieces per year

300KHZ 150mA Incremental Optical SS Solid Shaft Encoder

S65 solid shaft encoder I65-P-1024 substitute encoder ABZ phase Push-pull output dc8-24v



Matters needing attention

1. Must choose the power supply voltage: DC5V or DC8-30V

2. Must choose leaf spring plate model number if you select hollow shaft encoder

3. Please advise the motor speed (RPM) that you actually use

4. If you have any other requirements, please provide detail parameters



Production date

1. for 1-10 samples: 3-5 working days

2. for 20-50 mass production: 7-10 working days

3. for over 100pcs, production will be discussed with customers and ship on time



Quick description for S65 incremental encoder

Encoder type: Incremental encoder

External diameter: 65mm

Thickness: 53mm

Installation dimension:diameter 48mm

Shaft length:16mm

Top response frequency:300KHZ

Allowable ripple:≤3%rms

Shaft Material: Stainless steel



Shipment

o Goods can shipped via TNT, FedEx, UPS, DHL, EMS, etc.

o You could select the express according to your requirements if freight collector

o If you do not have any courier account, we will check and find a cheapest and safety express for you.

o Our factory has 30% discount with most courier company, so price could be as cheap as possible.



Characteristics for S65 encoder

Items Basic parameters
Brand HENGXIANG
Encoder type Incremental encoder
Resolution 50;60;100;200;250;256;300;360;400;450;500;512;600;720;1000
  1000;1024;1200;1250;1440;1800;2000;2048;2500;2880;3000;
  3600;4000;4096;5000;5760;8192;10000;11520;16384;20000; 23040
Output phase Phase A+,B+,Z+ ,A- B- Z-
Insulation strength AC500V 60s
Insulation resistance 10MΩ
GND not connect to encoder
Mark to Space ratio 45% to 55%
starting torque less than 5x 10-3 N.m
Intertia moment less than 3x 10-6kg.m2
Shaft load Radial 30N; Axial 20N
Top REV 5000RPM ;IP65≤3000r rpm
Bearing life 1.5x109 revs at rated load(100000hrs at 2500RPM)
Environmental temperature Operating:-20 ~+80°;storage:-25 ~+85°
Environmental humidity Operating and storage: 35-85%RH(noncondensing)
Vibration(endure) Amplitude 0.75mm,5-55Hz,2 hours for three axis individually
Sock(endure) 490m/s2 ,11 ms three times for X,Y,Z direction individually
Shaft Material Stainless steel
Shell Material die cast aluminum
Cable length 1000mm(cable with shielding)
Certification CE
package Carton box



Applications

· Petrochemical industry

· Pharmaceutical industry

· Food industry

· Stepper motor

· Servo motion controller

· Gearbox

· DC garage door motor

· DC servo motor

· Stock driver

· PMDC geared motor

· Brushless dc motor

· Servo motor

· Drawing machine

· VFD
