6mm Shaft DC5V PNP 10000 Resolution Flange Encoder

6mm Shaft DC5V PNP 10000 Resolution Flange Encoder

Products - Solid Shaft Encoder
  • High Light

    10000 Resolution Flange Encoder

    ,

    PNP Flange Encoder

    ,

    6mm Shaft Flange Encoder

  • Output
    Push-pull/Line Driver/Voltage/NPN/PNP Open Collector
  • Material
    Stainless Steel Shaft
  • Shaft Diameter
    6mm (D Type)
  • Warranty
    12 Months
  • Protection Class
    Up To IP68
  • External Diameter
    38mm
  • Supply Voltage
    DC5V & DC8-30V
  • Working Temperature
    -40℃~60℃ Or Custom
  • Current Consumption
    ≤150mA
  • Product Name
    Solid Shaft Encoder
  • Place of Origin
    Shanghai,China
  • Brand Name
    HENGXIANG
  • Certification
    CE,ISO9001
  • Model Number
    Solid shaft encoder S65F
  • Minimum Order Quantity
    1pcs encoder to start order
  • Price
    negotiable
  • Packaging Details
    each 1 piece was packed into single carton box
  • Delivery Time
    3-5 working days for sample order, 7-15 working days for mass order
  • Payment Terms
    D/A, D/P, T/T, Western Union, Credit Card, Master Card,Paypal, etc
  • Supply Ability
    100K pieces per year

6mm Shaft DC5V PNP 10000 Resolution Flange Encoder

  • 6mm Shaft DC5V PNP 10000 Resolution Flange Encoder
  • 6mm Shaft DC5V PNP 10000 Resolution Flange Encoder
Get Price Contact Now

Solid shaft encoder S65F shaft 15mm with key way 10000 resolution PNP output



Matters needing attention

1. Must choose the power supply voltage: DC5V or DC8-30V

2. Must choose leaf spring plate model number if you select hollow shaft encoder

3. Please advise the motor speed (RPM) that you actually use

4. If you have any other requirements, please provide detail parameters

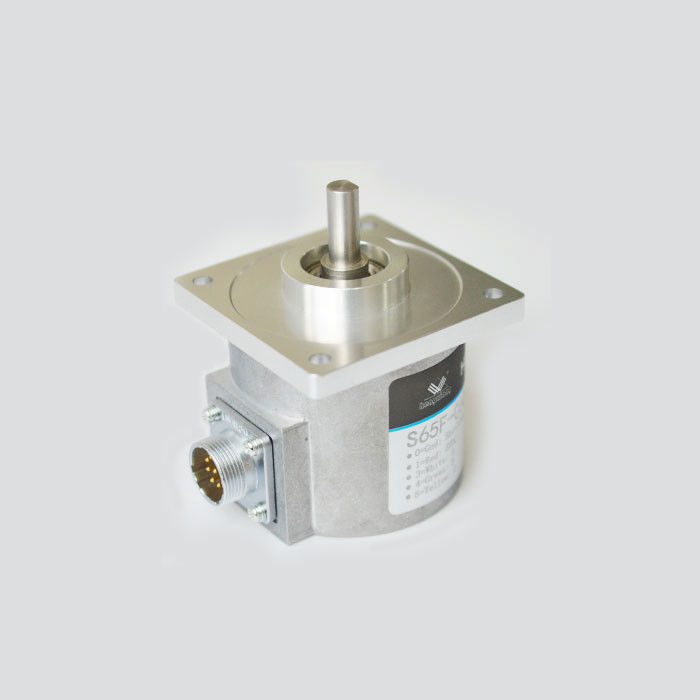

Quick review of S65F flange encoder

External diameter: 65mm

Thickness: 53mm

Shaft length: 16mm

Solid Shaft diameter: 8mm(D shape)

Resolution : from 50ppr to 23040ppr

Output phase: Phase A+,B+,Z+ ,A- B- Z-

Supply voltage: DC5V ; DC8~30V



Connecting Coupling Part Number:

There are some applications that you may need to use a coupling to connect encoder to the motor shaft, there’re a few tips to select a coupling type

1 you need to consider the magnitude and nature of the required transmitted torque, the requirements for buffering and damping functions, and whether resonance may occur.

2 you also need to think about the degree of relative displacement of the two axis axes caused by manufacturing and assembly errors, shaft loading and thermal expansion deformation, and relative motion between components.

3 regarding the applicable dimensions and installation methods, in order to facilitate the assembly, adjustment and maintenance of the necessary operating space. For large couplings, it should be possible to disassemble the shaft without axial movement.

4. In addition, consideration should be given to the working environment, service life, and lubrication, sealing, and economic conditions. Refer to the various coupling characteristics and choose a suitable coupling type.

5. Here are some coupling part number, please carefully check before ordering.

4H4

6H6

6H8

8H8

8H10

6M6

6M8

8M8

8M10



Parameter table for S65F

Items Basic parameters

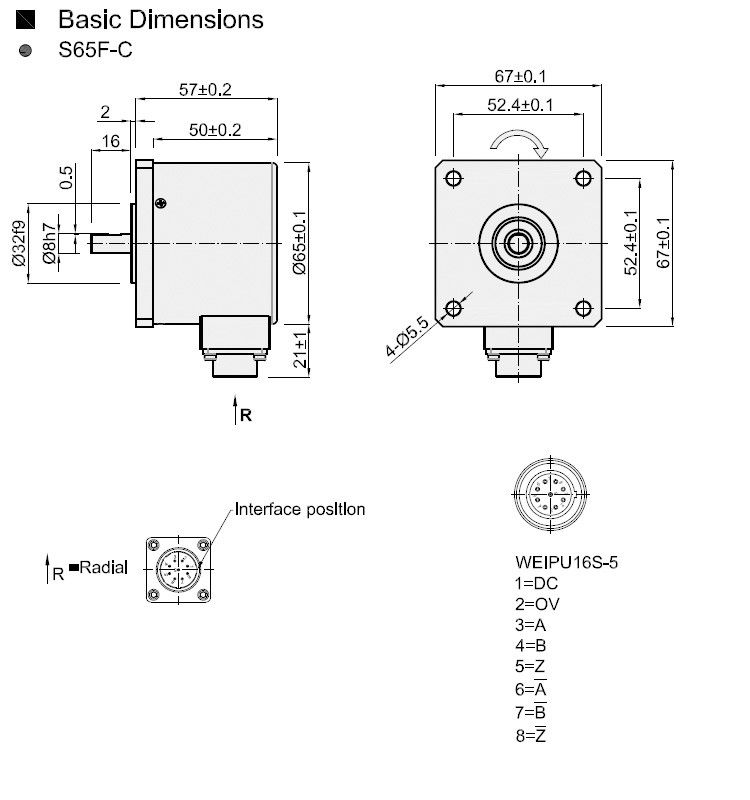

External dimensions External diameter: 65mm,Thickness: 52.5mm
Installation Size:48mm, Flange:67*67*7mm
Shaft diameter: 8mm
Resolution 50;60;100;200;250;256;300;360;400;450;500;512;600;
720;1000;1024;1200;1250;1440;1800;2000;2048;2500
;2880;3000;3600;4000;4096;5000;5760;8192;10000;
11520;16384;20000; 23040
Output phase Phase A,B,Z or A- B- Z-
Supply voltage DC5V & DC8-30V
Outlet type Cable out from side with metal sleeve
Socket out from side
　 NPN/PNP(Open Collector Output)
　 Voltage output
Output mode Push-pull output
　 line drive (26LS31) TTL
　 line drive(DC8-30V) HTL
Environmental temperature Operating temperature: -20~+80° (Non icing)
Storage temperature: -25~+85° (Non icing)
Environmental humanity Operating and storage: 35~85%RH (non-condensing)
Protection grade IP50 & IP65
Cable length 1M
Shell aluminum
package Carton box
Net weight About 190g (with package)
Certification CE



Our advantage

· Over 18 years encoder production experience

· More than 20 years experienced engineers

· Professional working team

· High quality standard

· Quick Response time

· Utility Model Patent Certificate

· Own brand and unique brand

· CE certification for all models

· Prompt delivery date

· 100% full inspection before shipment
