Aluminum Alloy OD 25mm Incremental Solid Shaft Encoder

Place of Origin Shanghai,China
Brand Name HENGXIANG
Certification CE,ISO9001
Model Number S50 incremental solid shaft encoder
Minimum Order Quantity 1pcs encoder to start order
Price negotiable
Packaging Details each 1 piece was packed into single carton box
Delivery Time 3-5 working days for sample order, 7-15 working days for mass order
Payment Terms D/A, D/P, T/T, Western Union, Credit Card, Master Card,Paypal, etc
Supply Ability 100K pieces per year
Product Details
Theory Rotary Encoder Output Push-pull/Line Driver/Voltage/NPN/PNP Open Collector
Resolution 10~5000P/R Type Incremental
Voltage 5~26v Option Material Aluminum Alloy
Product Name Solid Shaft Encoder Working Temperature -40℃~60℃ Or Custom
External Diameter 25mm Operating Temperature -10-70℃
Current Consumption 100mA(Load Disconnected) Thickness 28mm
High Light

Incremental Solid Shaft Encoder

,

OD 25mm Solid Shaft Encoder

,

Aluminum Alloy Incremental Encoder

Leave a Message
Product Description

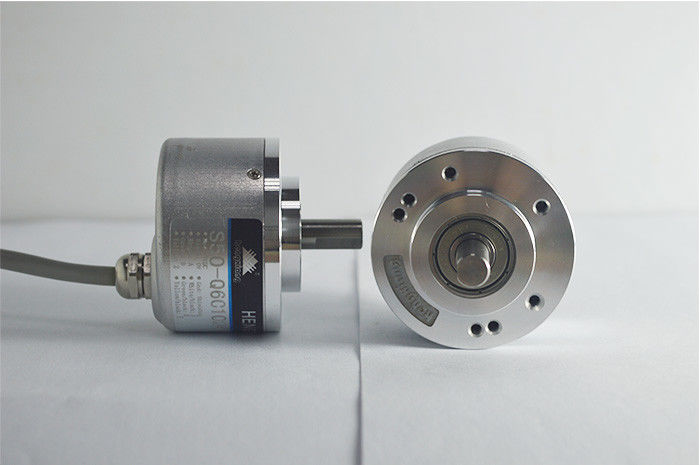

S50 incremental solid shaft encoder line driver 26ls31 output for small machine protection IP65



Some S50 Part numbers for choosing

S50-Q6C1000 DC5V

S50-Q6E3600

S50-T6E2500

S50-T3F2048B5

S50-Q3N4096B8

S50-T3V1200B10

S50-T6C512

S50-D6E8192

S50-D3NH5760

S50-Q6E10000

S50-T6C23040



Factory Encoder Production Capability

5000 pieces per month

-------- Production Line Capacity

50000 pieces per year

--------Actual Units Produced (Previous Year)



Why choose us?

HENGXIANG brand--The trustworthy partner
CE approved--advantaged product quality;
Fast delivery--strong stock product ability;

Factory directly provide a competitive price;
One-stop service--for your efficient purchasing experience;

OEM design accepted--customized design, your own brand accepted.



Package

Each single encoder is packed into a single safe carton with protecting bubble.

Then all encoders will be put into a bigger carton to prepare shipment.



Production date

1. for 1-10 samples: 3-5 working days

2. for 20-50 mass production: 7-10 working days

3. for over 100pcs, production will be discussed with customers and ship on time



Product Description for S50 incremental encoder

Items Basic parameters
Brand HENGXIANG
Encoder type Incremental encoder
External diameter 50mm
Thickness 30mm
Shaft length 16mm
Solid Shaft diameter 8mm(D shape)
Resolution 50;60;100;200;250;256;300;360;400;450;500;512;600;
700;720;800;900;1000;1024;1200;2000;2048;2500;5000
  8192;10000;11520;16384;20000;23040
Output phase Phase A+,B+,Z+ A- B- Z-
Supply voltage DC5V ; DC8-30V
Outlet type Cable out from side
  Cable out from back
  Socket out from back
Output mode NPN&PNP
  Voltage output
  Push-pull output
  Difference output(TTL,HTL,RS422)
Environmental temperature Operating temperature: -20~+90° (Non icing)
  Storage temperature: -25~+100° (Non icing)
Environmental humanity Operating and storage: 35~85%RH (non-condensing)
Protection grade IP50 ; IP65



How to select an encoder?

Before you determine to order a rotary encoder, here are a few questions that may help to make the best decision.

A. Do you need an incremental encoder or an absolute encoder?

B. What is the signal output and power supply voltage?

C. What resolution does the application call for?

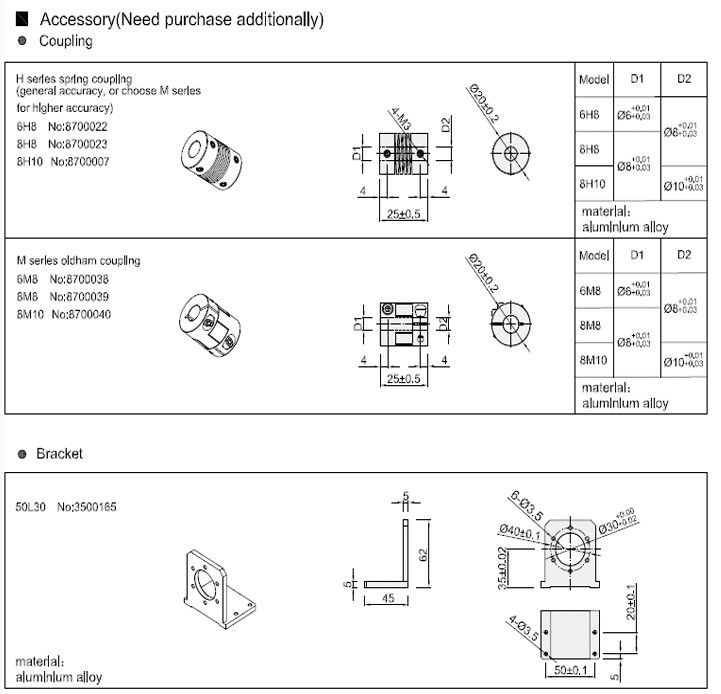

D. How to mount this encoder and how to connect the encoder to controls?

E. What environmental and mechanical stresses does the encoder need to bear?
