1200 Resolution Totem Pole S52F Solid Shaft Encoder

1200 Resolution Totem Pole S52F Solid Shaft Encoder

  • High Light

    S52F Solid Shaft Encoder

    ,

    Totem Pole Solid Shaft Encoder

    ,

    1200 Resolution Solid Shaft Encoder

  • Usage
    Level Sensor
  • Supply Voltage
    DC5V/5-24/8V-30V
  • Output
    NPN /PNP
  • Theory
    Resistance Sensor
  • Working Temperature
    -40℃~60℃ Or Custom
  • External Diameter
    25mm
  • Voltage
    DC 5-26v
  • Resolution
    Up To 16384P/R
  • Material
    Aluminum Alloy
  • Shaft Diameter
    6mm (D Type)
  • Place of Origin
    Shanghai,China
  • Brand Name
    HENGXIANG
  • Certification
    CE,ISO9001
  • Model Number
    S52F solid shaft encoder
  • Minimum Order Quantity
    1pcs encoder to start order
  • Price
    negotiable
  • Packaging Details
    each 1 piece was packed into single carton box
  • Delivery Time
    3-5 working days for sample order, 7-15 working days for mass order
  • Payment Terms
    D/A, D/P, T/T, Western Union, Credit Card, Master Card,Paypal, etc
  • Supply Ability
    100K pieces per year

1200 Resolution Totem Pole S52F Solid Shaft Encoder

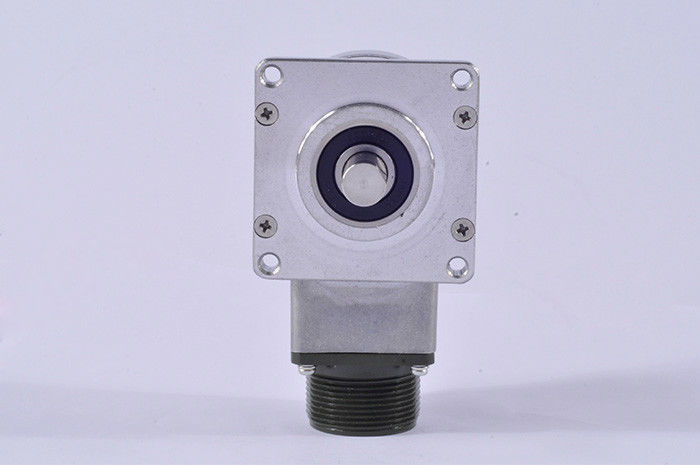

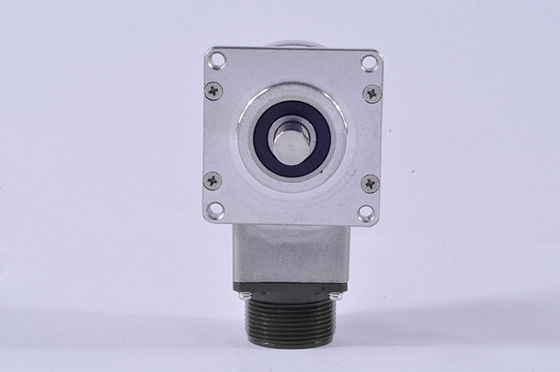

S52F solid shaft encoder 1200 resolution totem pole output optical encoder with square flange



Our advantage

· Over 18 years encoder production experience

· More than 20 years experienced engineers

· Professional working team

· High quality standard

· Quick Response time

· Utility Model Patent Certificate

· Own brand and unique brand

· CE certification for all models

· Prompt delivery date

· 100% full inspection before shipment



Factory Encoder Production Capability

5000 pieces per month

-------- Production Line Capacity

50000 pieces per year

--------Actual Units Produced (Previous Year)

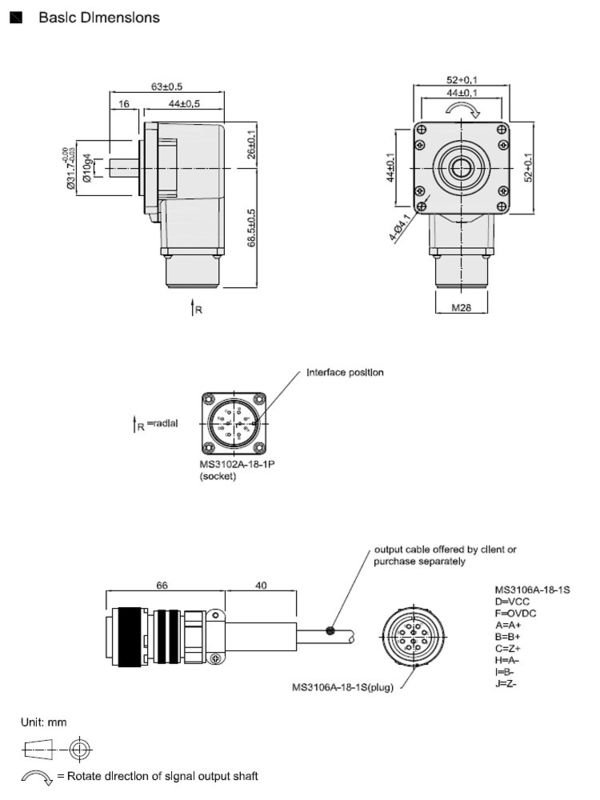

Specification for S52F flange encoder

Items Basic parameters
Brand HENGXIANG
Encoder type Incremental encoder
External diameter 52mm
Thickness 44mm
Flange dimension 52mm x 52mm
Installation dimension 44mm x 44mm
Shaft length 16mm
Solid Shaft diameter 10mm(D shape)
Resolution 50;60;100;200;250;256;300;360;400;450;500;512;600;720;1000
1000;1024;1200;1250;1440;1800;2000;2048;2500;2880;3000;
  3600;4000;4096;5000;5760;8192;10000;11520;16384;20000; 23040
Output phase Phase A+,B+,Z+ , A- B- Z-
Protection grade IP50 ; IP65
Cable length 1M (cable length could be added appropriately by
  require, but it need payment individually)
Consumption current 100mA MAX
Top response frequency 1200 Resolution Totem Pole S52F Solid Shaft Encoder 0300KHZ
Allowable ripple ≤3%rms
Load Voltage ≤DC30V
Insulation strength AC500V 60s
Insulation resistance 10MΩ
