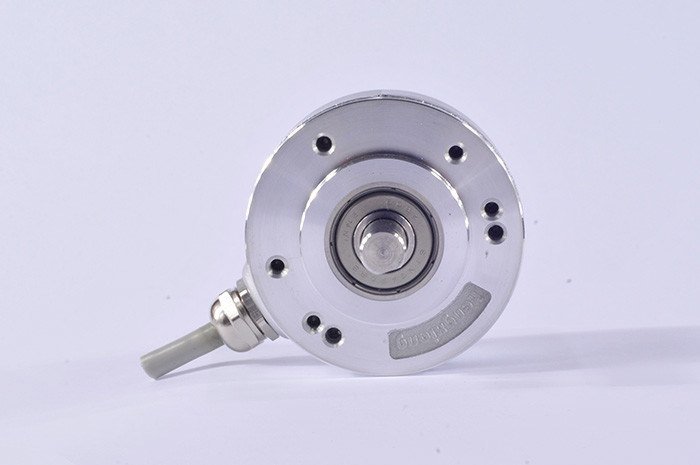

Dia 48mm S65 Solid Shaft Conventional Incremental Encoder

Dia 48mm S65 Solid Shaft Conventional Incremental Encoder

  • Dia 48mm S65 Solid Shaft Conventional Incremental Encoder
  • Dia 48mm S65 Solid Shaft Conventional Incremental Encoder
Dia 48mm S65 Solid Shaft Conventional Incremental Encoder
Product Details:
Place of Origin: Shanghai,China
Brand Name: HENGXIANG
Certification: CE,ISO9001
Model Number: S65 solid shaft encoder
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs encoder to start order
Price: negotiable
Packaging Details: each 1 piece was packed into single carton box
Delivery Time: 3-5 working days for sample order, 7-15 working days for mass order
Payment Terms: D/A, D/P, T/T, Western Union, Credit Card, Master Card,Paypal, etc
Supply Ability: 100K pieces per year
Contact Now
Detailed Product Description
Theory: Resistance Sensor Supply Voltage: DC5V/8V-26V/10V-30V/12V
Voltage: 5~26v Option Output: Analog Sensor
Material: Stainless Steel Shaft Operating Temperature: -20 °C(-40 °C)- +85°C
External Diameter: 25mm Thickness: 28mm
Shaft Diameter: 6mm (D Type) Weight: 0.4kg(Does Not Contain Electric Wire )
Working Temperature: -40℃~60℃ Or Custom Current Consumption: 100mA(Load Disconnected)
High Light:

Conventional incremental encoder

,

100mA Solid Shaft Encoder

,

Radial Cable Solid Shaft Encoder

Conventional incremental encoder S65 solid shaft encoder shaft diameter 8mm with radial cable



Production Video

There are plenty of encoder video if you still have any doubts on encoder, please email us directly or contact online service right now.

At the same time, you could also visit our YOUTUBY page easily.

Most of the encoder series have videos for reference.



Key Features for S65 series encoder

Items Basic parameters
Brand HENGXIANG
Encoder type Incremental encoder
External diameter 65mm
Thickness 53mm
Installation dimension diameter 48mm
Shaft length 16mm
Solid Shaft diameter 8mm(D shape)
Resolution 50;60;100;200;250;256;300;360;400;450;500;512;600;720;1000
1000;1024;1200;1250;1440;1800;2000;2048;2500;2880;3000;
3600;4000;4096;5000;5760;8192;10000;11520;16384;20000; 23040
Output phase Phase A+,B+,Z+ ,A- B- Z-
Supply voltage DC5V ; DC8~30V
Outlet type Radial cable
Radial socket
Output mode Collector open circuit output
Voltage output
Push-pull output
Difference output Long line drive (26LS31)
compatible RS422
Long line drive (RT7272)
Protection grade IP50 ; IP65
Cable length 1M (cable length could be added appropriately by
require, but it need payment individually)
Consumption current 100mA MAX
Top response frequency 300KHZ
Allowable ripple ≤3%rms
Load Voltage Dia 48mm S65 Solid Shaft Conventional Incremental Encoder 0≤DC30V
Insulation strength AC500V 60s
Insulation resistance 10MΩ



Signal Circuit of encoder

1. The NPN Open Collector -- The NPN Open Collector(NPN) is an interface based on an output circuit with an NPN transistor.

An open collector is the unconnected collector connection of an NPN transistor, whose emitter is connected to earth and whose collector is connected to the output.

2. PNP output

The PNP output is an interface based on an output circuit with a PNP transistor.

3. Push-Pull output(HTL)

High Voltage Transistor Logic functions with a voltage supply in the range 10 and 30 V DC, with 24 V DC being the most usual.

“Low” is defined as an output of between 0 V and 3 V and “high” as between VCC and VCC - 3.5 V.

4. TTL RS-422 output

In a transistor-transistor logic (TTL), both the logical status and the amplification are done by transistors, hence the name.

The TTL output is supplied with either a fixed 5 V voltage or a variable voltage of between 10 and 32 V. For this the low range is defined as the ≤ 0.4 V and the high range as ≥ 2.4 V.



Shipment

o Goods can shipped via TNT, FedEx, UPS, DHL, EMS, etc.

o You could select the express according to your requirements if freight collector

o If you do not have any courier account, we will check and find a cheapest and safety express for you.

o Our factory has 30% discount with most courier company, so price could be as cheap as possible.



Production date

3-5 working days for sample after full paid

7-15 days for mass production after full paid



Package

Each single encoder is packed into a single safe carton with protecting bubble.

Then all encoders will be put into a bigger carton to prepare shipment.
