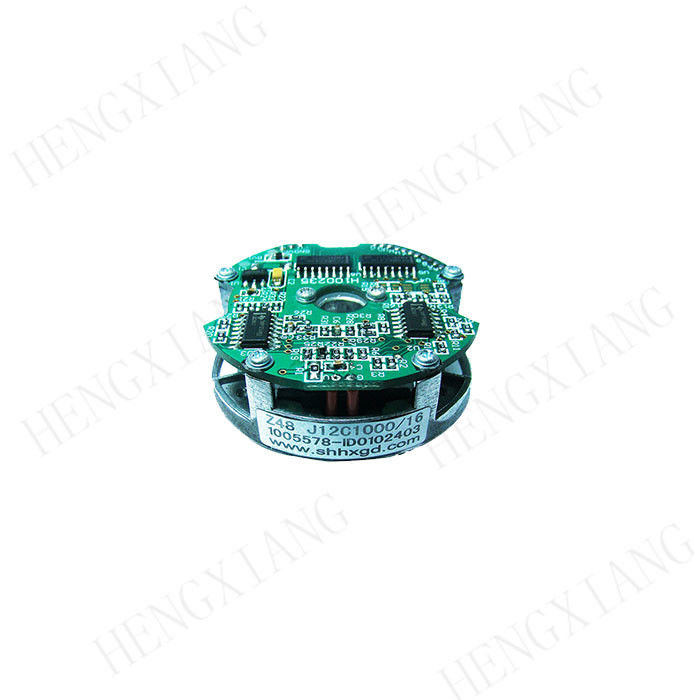

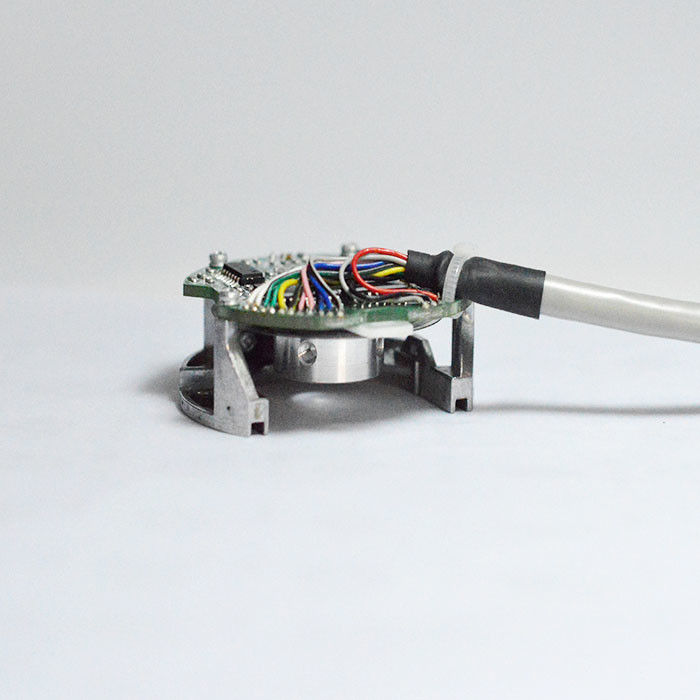

2500ppr 6 Poles Miniaturized Modular Optical Rotary Encoders

2500ppr 6 Poles Miniaturized Modular Optical Rotary Encoders

  • 2500ppr 6 Poles Miniaturized Modular Optical Rotary Encoders
  • 2500ppr 6 Poles Miniaturized Modular Optical Rotary Encoders
2500ppr 6 Poles Miniaturized Modular Optical Rotary Encoders
Product Details:
Place of Origin: Shanghai, China
Brand Name: HENGXIANG
Certification: CE,ISO9001
Model Number: Z48
Payment & Shipping Terms:
Minimum Order Quantity: 1Pcs
Price: Consult us
Packaging Details: each 1 piece was packed into single carton box
Delivery Time: 3-5 working days for sample order, 7-15 working days for mass order
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 100K pieces per year
Contact Now
Detailed Product Description
External Diameter: 48mm Shaft Diameter: 8mm
Resolution: Up To 2500ppr Optional Supply: DC5V & DC8-30V
Output Phase: Phase A+,B+,Z+,A-,B-,Z-,U+,V+,W+,U-,V-,W- Weight: About 60g(with Package)
Thickness: 22.5mm
High Light:

Miniaturized Optical Rotary Encoders

,

2500ppr miniature optical encoder

,

6 poles miniature optical encoder

Rotary encoder module ultra-thin Installation dimension R22.35mm 2000 resolution 6 poles Z48



Our Service

  • Quick response once received customer’s quotation query
  • Professional engineer team, to solve your problems at any time
  • Strictly inspection before shipment
  • Various encoder models to be selected
  • Short lead time
  • High quality standard



Part Number to select of Z48 Series encoder

Z48-J1N2048

Z48-J2C2500

Z48-J3N50

Z48-J2N360

Z48-J3N500

Z48-J4E512

Z48-J6C600

Z48-J12E1024/6

Z48-J1N720

Z48-J2C1000



Product Description of Z48 Series

Items Basic parameters
Brand HENGXIANG
Encoder type bearingless encoder
External diameter 48mm
Thickness 22.5mm
Dimension of limiting slot 30mm, depth 2.4mm
Installation dimension R22.35mm
Hollow shaft type through hole
Hollow shaft diameter 8mm
Cable length 500mm
Consumption current 100mA MAX
Top response frequency 300KHZ
Allowable ripple ≤3%rms
Load Voltage ≤DC30V
Insulation strength AC500V 60s
Insulation resistance 10MΩ
Resolution 50;60;100;200;250;256;300;360;400;450;500;512;600;1000;
  1024;1200;2000;2048;2500;
  1000/4;1000/6;1000/8;1024/4;1024/6;1024/8;2048/4;2048/6;2048/8;2500/4;2500/6;2500/8;
Output phase Phase A+,B+,Z+,A-,B-,Z-,U+,V+,W+,U-,V-,W-
Supply voltage DC5V ; DC8-30V
Output mode NPN/(Open Collector Output)
  line drive (26LS31) TTL
  line drive(DC8-30V) HTL



2500ppr 6 Poles Miniaturized Modular Optical Rotary Encoders 0



Questions you may like to know before ordering

Q: Do you have some videos of your products?

A: Yes, you could visit our YOUTUBE page for encoder videos.

Q: What’s your encoder product guarantee policy?

A: 1 year quality warranty and life-long technical support.

Q: Where can I download the encoder catalogue or datasheet?

A: You could visit our official website or email us directly to the latest files.

Q: What parameters are requested before ordering an encoder?

A: You should get some basic parameters before you start to order. Such as installation dimensions, resolutions, circuit signal, power supply voltage, etc.

If you have any doubt on selecting the model, you are welcome to contact us for more assistant.

Q: Where is your factory?

A: Our factory is located on Shanghai City.

Q: Can I pay a visit to your factory?

A: Yes, you we welcome to visit our factory at any time if convenient.

Q: How long is your delivery time?

A: Usually 3 working days for sample, 7-15 days for mass production,

The production date is according to order quantity.

Q: What is the highest resolution of your encoder products?

A: The highest resolution is 80000ppr, you can email us for more information.

Q: Can your encoder be customized?

A: Yes, our encoder can be customized according to your requirements,



Matters needing attention

1. Must choose the power supply voltage: DC5V or DC8-30V

2. Must choose leaf spring plate model number if you select hollow shaft encoder

3. Please advise the motor speed (RPM) that you actually use

4. If you have any other requirements, please provide detail parameters
