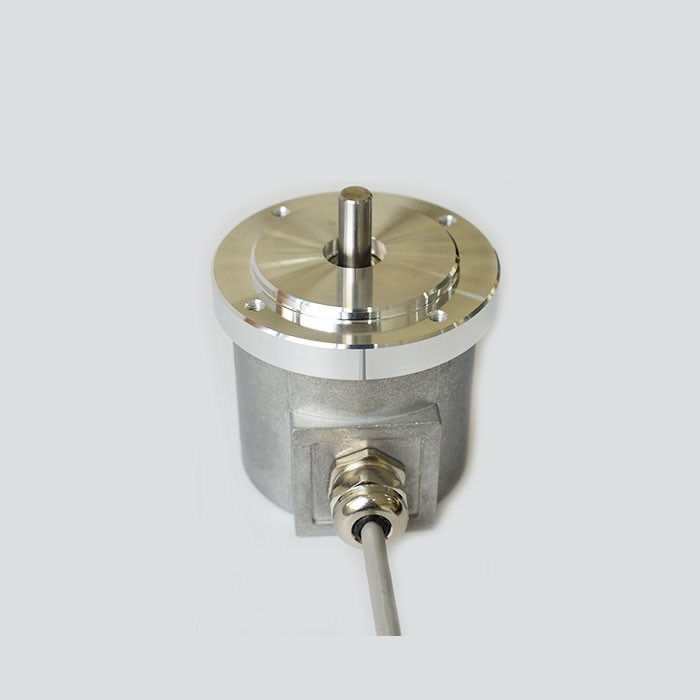

24V DC  70mm Solid Shaft Encoder Motor ABZ Phase NPN Output

24V DC 70mm Solid Shaft Encoder Motor ABZ Phase NPN Output

  • High Light

    70mm solid shaft encoder

    ,

    24V solid shaft encoder

    ,

    NPN output shaft position encoders

  • Model Selection
    Solid Shaft
  • Cable Outlet
    Radial Cable/ Radial Socket
  • Output Phase
    A, B, Z, A-, B-, Z-
  • Diameter Of Shaft
    8mm(D Type)
  • Weight
    About 450g(with Package)
  • Protection
    IP50; IP65
  • Place of Origin
    Shanghai, China
  • Brand Name
    HENGXIANG
  • Certification
    CE,ISO9001
  • Model Number
    S70
  • Minimum Order Quantity
    1Pcs
  • Price
    Consult us
  • Packaging Details
    each 1 piece was packed into single carton box
  • Delivery Time
    3-5 working days for sample order, 7-15 working days for mass order
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union, MoneyGram
  • Supply Ability
    100K pieces per year

24V DC 70mm Solid Shaft Encoder Motor ABZ Phase NPN Output

 70mm solid shaft encoder 24V DC Motor Rotary Encoder Price Distance Sensor Position ABZ phase,NPN output


ItemsBasic parameters
BrandHENGXIANG
Encoder typeIncremental encoder
External diameter70mm
Thickness60mm
Installation dimensiondiameter 60mm
Shaft length20mm
Solid Shaft diameter8mm(D shape)
Resolution50;60;100;200;250;256;300;360;400;450;500;512;600;
700;720;800;900;1000;1024;1200;2000;2048;2500;5000
8192;10000;11520;16384;20000;23040
Output phaseA,B,Z,A-,B-,Z-
Supply voltageDC5V & DC8~30V
Outlettyperadial cable
radial socket
Output modeNPN Collector open circuit output
Voltage output
Push-pull output
Difference outputLong line drive( 26LS31)
Compatible RS422
Long line drive( RT7272)
Protection gradeIP50 ; IP65
Cable length1M (cable length could be added appropriately by
require, but it need payment individually)
Consumption current100mA MAX
Top response frenquency100KHZ
Allowable ripple24V DC  70mm Solid Shaft Encoder Motor ABZ Phase NPN Output 0≤3%rms
Load Voltage≤DC30V
Insulation strengthAC500V 60s
Insulation resistance10MΩ
GNDnot connect to encoder
Mark to Space ratio45% to 55%
starting torqueless than 5x 10-3 N.m
Intertia momentless than 3x 10-6kg.m2
Shaft loadRadial 30N; Axial 20N
Top REV5000RPM ;IP65≤3000r rpm
Bearing life1.5x109 revs at rated load(100000hrs at 2500RPM)
Environmental temperatureOperating:-20 ~+80°;storage:-25 ~+85°
Enviromental humidityOperating and storage: 35-85%RH(noncondensing)
Vibration(endure)Amplitude 0.75mm,5-55Hz,2 hours for three axis individually
Sock(endure)490m/s2 ,11 ms three times for X,Y,Z direction individually
Shaft MaterialStainless steel
Shell MaterialDia cast aluminium
Cable length1000mm(cable with shielding)
CertificationCE
packageCarton box
Net weightAbout 450g (with package)


24V DC  70mm Solid Shaft Encoder Motor ABZ Phase NPN Output 1

Principle of encoder
An incremental rotary encoder outputs a certain amount of Pulses per Revolution. The higher this PPR number, the smaller the angle between each pulse. This PPR number is fixed for ordinary incremental encoders. Programmable incremental encoders can adjust this value to a desired number by a software change.
Today most incremental encoders have a Push-Pull (HTL) or RS422 (TTL) output driver, these have replaced most of the older output circuits like Open Collector NPN, Open Collector PNP, Voltage Output.
Push-Pull (HTL) circuits, also known as Totem Pole, provide a signal level which corresponds to the applied supply voltage. The supply voltage typically ranges from 8 to 30 VDC.
With proper connections you can use the Push Pull interface to replace true open collector circuits by using an external diode connected in a way to limit the direction of the current for RS422 (TTL) circuits provide a constant 5 V signal level that is not dependent on the supply voltage. Two supply voltage ranges can be selected: From 4.75 to 5.5 VDC (can be used to replace open collector output drivers) or from 8 to 30 VDC. Using differential signals the output fully complies to the RS422 standard.
