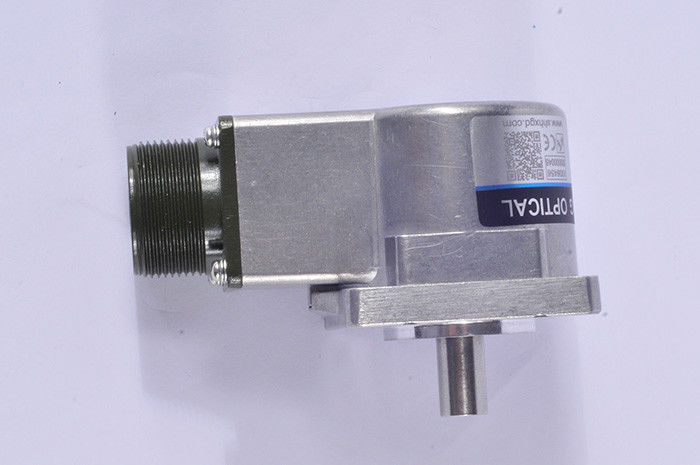

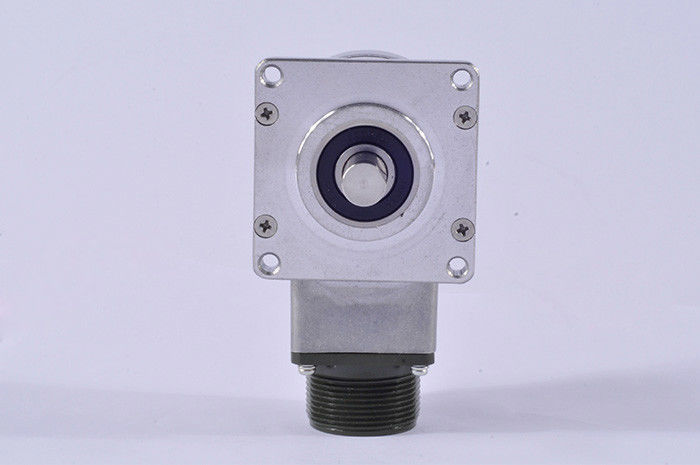

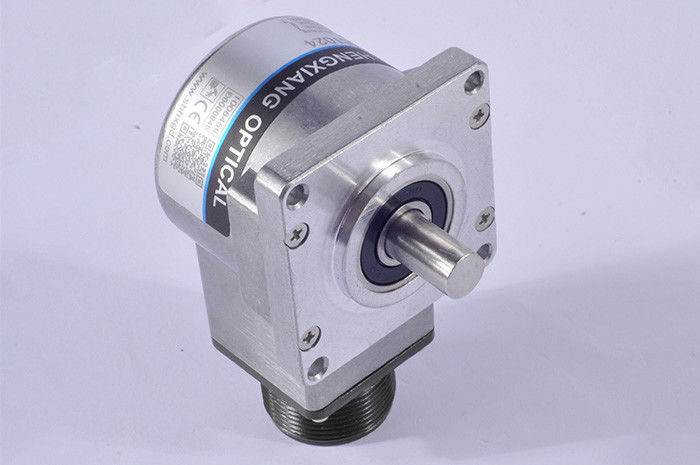

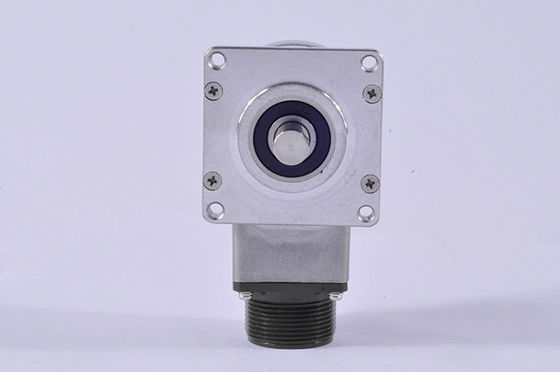

52x52mm Square Flange Incremental H25 Solid Shaft Seal Rotary Encoder

52x52mm Square Flange Incremental H25 Solid Shaft Seal Rotary Encoder

  • 52x52mm Square Flange Incremental  H25 Solid Shaft Seal Rotary Encoder
  • 52x52mm Square Flange Incremental  H25 Solid Shaft Seal Rotary Encoder
  • 52x52mm Square Flange Incremental  H25 Solid Shaft Seal Rotary Encoder
52x52mm Square Flange Incremental  H25 Solid Shaft Seal Rotary Encoder
Product Details:
Place of Origin: Shanghai, China
Brand Name: HENGXIANG
Certification: CE,ISO9001
Model Number: S52F
Payment & Shipping Terms:
Minimum Order Quantity: 1Pcs
Price: Consult us
Packaging Details: each 1 piece was packed into single carton box
Delivery Time: 3-5 working days for sample order, 7-15 working days for mass order
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 100K pieces per year
Contact Now
Detailed Product Description
Model Selection: Solid Shaft( Flange Installation) Cable Outlet: Radial Socket
Diameter Of Shaft: 10mm Supply Voltage: DC5V;DC8-30V
Resolution: Up To 23040ppr Protection: IP50; IP65
High Light:

Incremental flange encoder

,

H25 Shaft Seal Rotary Encoder

,

H25 solid shaft encoder

 S52F square flange rotary encoder 52*52mm with the shaft seal H25 Incremental Encoder elevator encoder 50-1024ppr


ItemsBasic parameters
BrandHENGXIANG
Encoder typeIncremental encoder
External diameter52mm
Thickness44mm
Flange dimension52mm x 52mm
Installation dimension44mm x 44mm
Shaft length16mm
Solid Shaft diameter10mm(D shape)
Resolution50;60;100;200;250;256;300;360;400;450;500;512;600;720;1000
1000;1024;1200;1250;1440;1800;2000;2048;2500;2880;3000;
 3600;4000;4096;5000;5760;8192;10000;11520;16384;20000;23040
Output phasePhase A+,B+,Z+ , A- B- Z-
Supply voltageDC5V ; DC8-30V
OutlettypeCable out from side
Cable out from back
Socket out from back
Output modeNPN Collector open circuit output
Voltage output
Push-pull output
Long line drive (26LS31)
Compatible RS422
Long line drive (RT7272)
Protection gradeIP50 ; IP65
Cable length1M (cable length could be added appropriately by
require, but it need payment individually)
Consumption current100mA MAX
Top response frenquency300KHZ
Allowable ripple≤3%rms
Load Voltage≤DC30V
Insulation strengthAC500V 60s
Insulation resistance10MΩ
GNDnot connect to encoder
Mark to Space ratio45% to 55%
starting torqueless than 5 x 10-3 N.m
Intertia momentless than 3x 10-6kg.m2
Shaft loadRadial 60N; Axial 60N
Top REV6000RPM ;IP65≤3000r rpm
Bearing life1.5x109 revs at rated load(100000hrs at 2500RPM)
Environmental temperatureOperating:-20 ~+85°;storage:-25 ~+90°
Enviromental humidityOperating and storage: 35-85%RH(noncondensing)
Vibration(endure)Amplitude 0.75mm,5-55Hz,2 hours for three axis individually
Sock(endure)490m/s2 ,11 ms three times for X,Y,Z direction individually
Shaft MaterialStainless steel
Shell MaterialDia cast aluminium
Cable length1000mm(cable with shielding)
CertificationCE
packageCarton box
Net weightAbout 300g (with package)


52x52mm Square Flange Incremental  H25 Solid Shaft Seal Rotary Encoder 0

Principle of encoder
An incremental rotary encoder outputs a certain amount of Pulses per Revolution. The higher this PPR number, the smaller the angle between each pulse. This PPR number is fixed for ordinary incremental encoders. Programmable incremental encoders can adjust this value to a desired number by a software change.
Today most incremental encoders have a Push-Pull (HTL) or RS422 (TTL) output driver, these have replaced most of the older output circuits like Open Collector NPN, Open Collector PNP, Voltage Output.
Push-Pull (HTL) circuits, also known as Totem Pole, provide a signal level which corresponds to the applied supply voltage. The supply voltage typically ranges from 8 to 30 VDC.
With proper connections you can use the Push Pull interface to replace true open collector circuits by using an external diode connected in a way to limit the direction of the current for RS422 (TTL) circuits provide a constant 5 V signal level that is not dependent on the supply voltage. Two supply voltage ranges can be selected: From 4.75 to 5.5 VDC (can be used to replace open collector output drivers) or from 8 to 30 VDC. Using differential signals the output fully complies to the RS422 standard.
Production date
1. for 1-10 samples: 3-5 working days
2. for 20-50 mass production: 7-10 working days
3. for over 100pcs, production will be discussed with customers and ship on time
Payment terms:
1. T/T, western union, credit card, Paypal, etc
2. 3-5 working days after payment received
3. Encoders will be shipped once ready
Shipment
Goods can shipped via TNT, FedEx, UPS, DHL, EMS, etc.
You could select the express according to your requirements if freight collector
If you do not have any courier account, we will check and find a cheapest and safety express for you.
Our factory has 30% discount with most courier company, so price could be as cheap as possible.


More information
If you are looking for more information about our factory or about our products, please contact us or email us right now, we will reply you as soon as possible.
