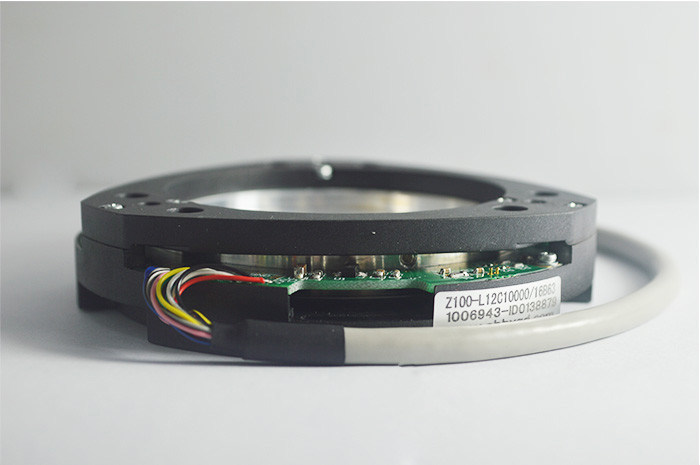

Photoeletric Large Hole Space Saver 100mm Bearingless Motor Encoder

Photoeletric Large Hole Space Saver 100mm Bearingless Motor Encoder

  • Photoeletric Large Hole Space Saver 100mm  Bearingless   Motor Encoder
  • Photoeletric Large Hole Space Saver 100mm  Bearingless   Motor Encoder
  • Photoeletric Large Hole Space Saver 100mm  Bearingless   Motor Encoder
Photoeletric Large Hole Space Saver 100mm  Bearingless   Motor Encoder
Product Details:
Place of Origin: Shanghai, China
Brand Name: HENGXIANG
Certification: CE,ISO9001
Model Number: Z100
Payment & Shipping Terms:
Minimum Order Quantity: 1Pcs
Price: Consult us
Packaging Details: each 1 piece was packed into single carton box
Delivery Time: 3-5 working days for sample order, 7-15 working days for mass order
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 100K pieces per year
Contact Now
Detailed Product Description
Model Selection: Through Hole, No Bearing Cable Outlet: Radial Cable/ Radial Socket
Resolution/ Pole: 2500/8, 2500/10, 2500/16 Dimension: 100mm
Thickness: 16mm Sensing Basic: Photoeletric
High Light:

space saver motor encoder

,

Photoeletric bearingless encoder

,

100mm bearingless encoder

Z100 large hole bearingless thin module motor encoder for space saver Z100-J12C2500/16B40


Items Basic parameters
Brand HENGXIANG
Encoder type bearingless encoder
External diameter 100mm
Thickness 16mm
Hollow shaft type through hole
Hollow shaft diameter 40mm;63mm;
Resolution 2500/8;2500/10;2500/16;5000/10;5000/16;
10000/8;10000/10;10000/16
Output phase A+,B+,Z+,A-,B-,Z-,U+,V+,W+,U-,V-,W-
Supply voltage DC5V ; DC8--30V
Output mode radial cable
radial socket
line drive (26LS31) TTL
line drive(DC8-30V) HTL
Cable length 300mm
rise/fall time less than 1 us(cable length:2 meters)
Consumption current 120mA MAX
Top response frenquency 300KHZ
GND not connect to encoder
Slew speed (top response frequency/pulse)×60
Environmental temperature Operating:-20 ~+105°;storage:-25 ~+110°
Enviromental humidity Operating and storage: 35-85%RH(noncondensing)
Material aluminium alloy
Certification CE
package Carton box
Net weight About 200g (with package)



Photoeletric Large Hole Space Saver 100mm  Bearingless   Motor Encoder 0

Photoeletric Large Hole Space Saver 100mm  Bearingless   Motor Encoder 1

Production date
1. for 1-10 samples: 3-5 working days
2. for 20-50 mass production: 7-10 working days
3. for over 100pcs, production will be discussed with customers and ship on time
Payment terms:
1. T/T, western union, credit card, Paypal, etc
2. 3-5 working days after payment received
3. Encoders will be shipped once ready
Shipment
Goods can shipped via TNT, FedEx, UPS, DHL, EMS, etc.
You could select the express according to your requirements if freight collector
If you do not have any courier account, we will check and find a cheapest and safety express for you.
Our factory has 30% discount with most courier company, so price could be as cheap as possible.


More information
If you are looking for more information about our factory or about our products, please contact us or email us right now, we will reply you as soon as possible.
