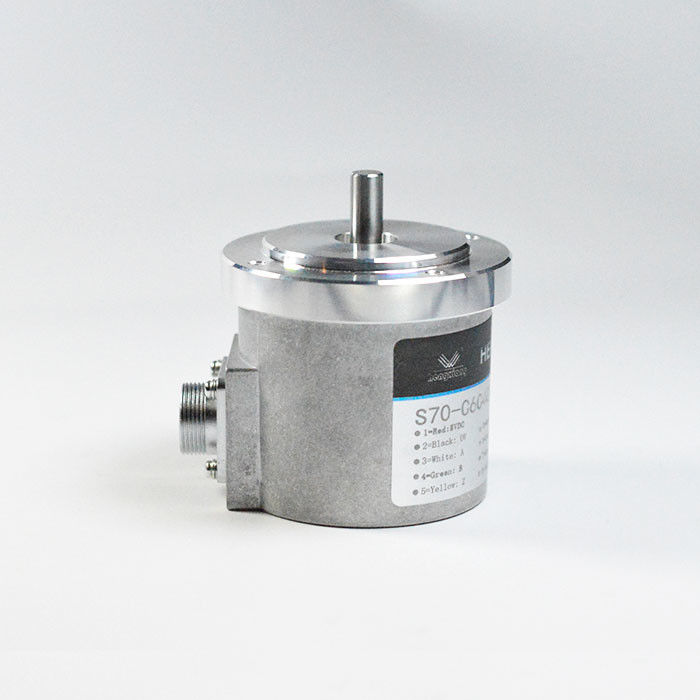

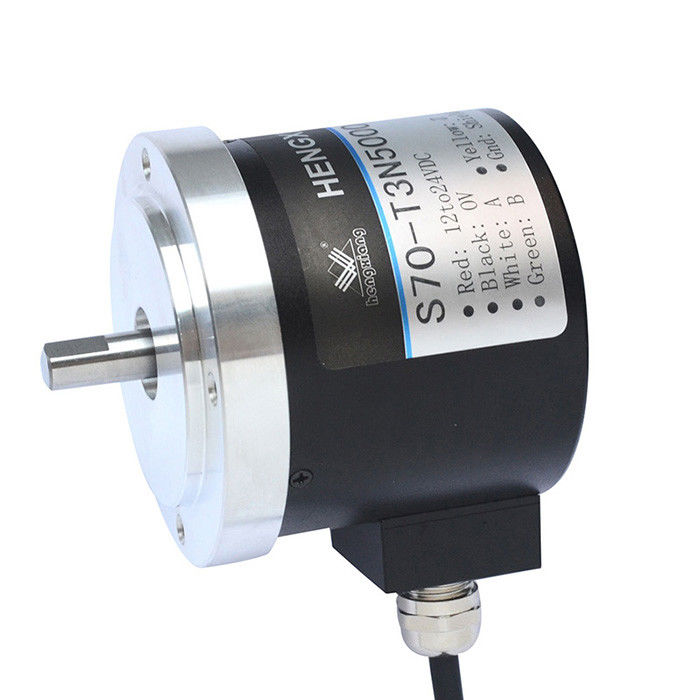

Incremental Type Solid Shaft 10mm Optical  Rotary Encoder IP65 Protection

Incremental Type Solid Shaft 10mm Optical Rotary Encoder IP65 Protection

  • High Light

    Solid shaft Optical rotary encoder


    Incremental Type Optical rotary encoder


    10mm incremental optical rotary encoder

  • Model Selection
    Solid Shaft
  • Cable Outlet
    Radial Cable/ Radial Socket
  • Output Phase
    A, B, Z, A-, B-, Z-
  • Diameter Of Shaft
    8mm(D Type)
  • Weight
    About 450g(with Package)
  • Protection
    IP50; IP65
  • Place of Origin
    Shanghai, China
  • Brand Name
  • Certification
  • Model Number
  • Minimum Order Quantity
  • Price
    Consult us
  • Packaging Details
    each 1 piece was packed into single carton box
  • Delivery Time
    3-5 working days for sample order, 7-15 working days for mass order
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union, MoneyGram
  • Supply Ability
    100K pieces per year

Incremental Type Solid Shaft 10mm Optical Rotary Encoder IP65 Protection

10mm rotary encoder for Incremental Type Rotary Encoder S70- Series encoder

ItemsBasic parameters
Encoder typeIncremental encoder
External diameter70mm
Installation dimensiondiameter 60mm
Shaft length20mm
Solid Shaft diameter8mm(D shape)
Output phaseA,B,Z,A-,B-,Z-
Supply voltageDC5V & DC8~30V
Outlettyperadial cable
radial socket
Output modeNPN Collector open circuit output
Voltage output
Push-pull output
Difference outputLong line drive( 26LS31)
Compatible RS422
Long line drive( RT7272)
Protection gradeIP50 ; IP65
Cable length1M (cable length could be added appropriately by
require, but it need payment individually)
Consumption current100mA MAX
Top response frenquency100KHZ
Allowable rippleIncremental Type Solid Shaft 10mm Optical  Rotary Encoder IP65 Protection 0≤3%rms
Load Voltage≤DC30V
Insulation strengthAC500V 60s
Insulation resistance10MΩ
GNDnot connect to encoder
Mark to Space ratio45% to 55%
starting torqueless than 5x 10-3 N.m
Intertia momentless than 3x 10-6kg.m2
Shaft loadRadial 30N; Axial 20N
Top REV5000RPM ;IP65≤3000r rpm
Bearing life1.5x109 revs at rated load(100000hrs at 2500RPM)
Environmental temperatureOperating:-20 ~+80°;storage:-25 ~+85°
Enviromental humidityOperating and storage: 35-85%RH(noncondensing)
Vibration(endure)Amplitude 0.75mm,5-55Hz,2 hours for three axis individually
Sock(endure)490m/s2 ,11 ms three times for X,Y,Z direction individually
Shaft MaterialStainless steel
Shell MaterialDia cast aluminium
Cable length1000mm(cable with shielding)
packageCarton box
Net weightAbout 450g (with package)

Incremental Type Solid Shaft 10mm Optical  Rotary Encoder IP65 Protection 1

Principle of encoder
An incremental rotary encoder outputs a certain amount of Pulses per Revolution. The higher this PPR number, the smaller the angle between each pulse. This PPR number is fixed for ordinary incremental encoders. Programmable incremental encoders can adjust this value to a desired number by a software change.
Today most incremental encoders have a Push-Pull (HTL) or RS422 (TTL) output driver, these have replaced most of the older output circuits like Open Collector NPN, Open Collector PNP, Voltage Output.
Push-Pull (HTL) circuits, also known as Totem Pole, provide a signal level which corresponds to the applied supply voltage. The supply voltage typically ranges from 8 to 30 VDC.
With proper connections you can use the Push Pull interface to replace true open collector circuits by using an external diode connected in a way to limit the direction of the current for RS422 (TTL) circuits provide a constant 5 V signal level that is not dependent on the supply voltage. Two supply voltage ranges can be selected: From 4.75 to 5.5 VDC (can be used to replace open collector output drivers) or from 8 to 30 VDC. Using differential signals the output fully complies to the RS422 standard.
