1024 Ppr  Vibration Sensor Optical Flange Encoder 10mm Diameter

1024 Ppr Vibration Sensor Optical Flange Encoder 10mm Diameter

  • High Light

    optical Flange Encoder

    ,

    10mm diameter Flange Encoder

    ,

    Vibration 1024 ppr Encoder

  • Brand
    HENGXIANG
  • External Diameter
    65mm (flange 67*67)
  • Shaft Diameter
    8mm & 10mm (D Type)
  • Resolution
    Up To 23040P/R
  • Protection Grade
    IP50 & IP65
  • Outlet Type
    Wire Out From Side & Socket At Side
  • Cable Length
    1M ( It Can Be Added With Customer Requirements)
  • Weight
    About 370g (with Package)
  • Usage
    Position Sensor
  • Theory
    Optical Sensor
  • Place of Origin
    Shanghai, China
  • Brand Name
    HENGXIANG
  • Certification
    CE,ISO9001
  • Model Number
    S65F
  • Minimum Order Quantity
    1Pcs
  • Price
    Consult us
  • Packaging Details
    each 1 piece was packed into single carton box
  • Delivery Time
    3-5 working days for sample order, 7-15 working days for mass order
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union, MoneyGram
  • Supply Ability
    100K pieces per year

1024 Ppr Vibration Sensor Optical Flange Encoder 10mm Diameter

H25E-F1-SS-2048--ABZC-28V/5-SCS18-S incremental equivalent encoder S65F square flange shaft seal for the industrial mark


Items Basic parameters
External dimensions External diameter: 65mm,Thickness: 56mm
Installation Size:48mm, Flange:67*67*7mm
Shaft diameter: 8mm
Resolution 50;60;100;200;250;256;300;360;400;450;500;512;600;720;1000
1000;1024;1200;1250;1440;1800;2000;2048;2500;2880;3000;
  3600;4000;4096;5000;5760;8192;10000;11520;16384;20000; 23040
Output phase Phase A,B,Z or A- B- Z-
Supply voltage DC5V & DC8-30V
Outlettype Cable out from side with metal sleeve
Socket out from side
  NPN/PNP(Open Collector Output)
  Voltage output
Output mode Push-pull output
  line drive (26LS31) TTL
  line drive(DC8-30V) HTL
Environmental temperature Operating temperature: -20~+80° (Non icing)
Storage temperature: -25~+85° (Non icing)
Environmental humanity Operating and storage: 35~85%RH (non-condensing)
Protection grade IP50 & IP65
Cable length 1M (cable length could be added appropriately by
require, but it need payment individually)
Shell Aluminium
package Carton box
Net weight About 370g (with package)
Certification CE

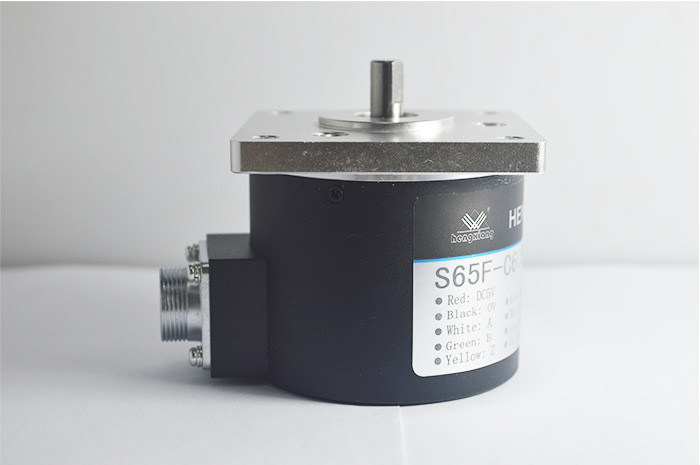

1024 Ppr  Vibration Sensor Optical Flange Encoder 10mm Diameter 0

Principle of encoder
An incremental rotary encoder outputs a certain amount of Pulses per Revolution. The higher this PPR number, the smaller the angle between each pulse. This PPR number is fixed for ordinary incremental encoders. Programmable incremental encoders can adjust this value to a desired number by a software change.
Today most incremental encoders have a Push-Pull (HTL) or RS422 (TTL) output driver, these have replaced most of the older output circuits like Open Collector NPN, Open Collector PNP, Voltage Output.
Push-Pull (HTL) circuits, also known as Totem Pole, provide a signal level which corresponds to the applied supply voltage. The supply voltage typically ranges from 8 to 30 VDC.
With proper connections you can use the Push Pull interface to replace true open collector circuits by using an external diode connected in a way to limit the direction of the current for RS422 (TTL) circuits provide a constant 5 V signal level that is not dependent on the supply voltage. Two supply voltage ranges can be selected: From 4.75 to 5.5 VDC (can be used to replace open collector output drivers) or from 8 to 30 VDC. Using differential signals the output fully complies to the RS422 standard.
Production date
1. for 1-10 samples: 3-5 working days
2. for 20-50 mass production: 7-10 working days
3. for over 100pcs, production will be discussed with customers and ship on time
Payment terms:
1. T/T, western union, credit card, Paypal, etc
2. 3-5 working days after payment received
3. Encoders will be shipped once ready
Shipment
Goods can shipped via TNT, FedEx, UPS, DHL, EMS, etc.
You could select the express according to your requirements if freight collector
If you do not have any courier account, we will check and find a cheapest and safety express for you.
Our factory has 30% discount with most courier company, so price could be as cheap as possible.


More information
If you are looking for more information about our factory or about our products, please contact us or email us right now, we will reply you as soon as possible.
