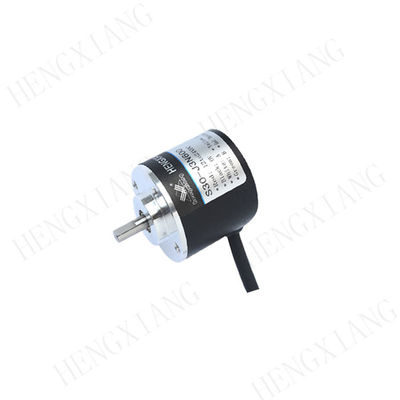

Throttle Position Sensor Streaming Miniature Rotary Encoder For Steering Angle Sensor

Throttle Position Sensor Streaming Miniature Rotary Encoder For Steering Angle Sensor

  • Throttle Position Sensor Streaming Miniature Rotary Encoder For Steering Angle Sensor
  • Throttle Position Sensor Streaming Miniature Rotary Encoder For Steering Angle Sensor
Throttle Position Sensor Streaming Miniature Rotary Encoder For Steering Angle Sensor
Product Details:
Place of Origin: Shanghai, China
Brand Name: HENGXIANG
Certification: CE,ISO9001
Model Number: S30 optical rotary shaft encoder
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs encoder to start order
Price: negotiable
Packaging Details: each 1 piece was packed into single carton box
Delivery Time: 3-5 working days for sample order, 7-15 working days for mass order
Payment Terms: D/A, D/P, T/T, Western Union, Credit Card, Master Card,Paypal, etc
Supply Ability: 100K pieces per year
Contact Now
Detailed Product Description
Protection grade: IP50 Cable length: 1000mm
Shell : Die Cast Aluminum Consumption Current: 100mA Max
Resistance: 10MΩ Supply voltage: DC5V; DC8-30V
Slew Speed: 5000RPM Shell Material: Die Cast Aluminum
High Light:

Streaming miniature rotary encoder

,

throttle position sensor rotary encoder

,

throttle position sensor streaming encoder

2500ppr miniature rotary encoder shaft 4mm differential output DC5-30V S30 encoder



Notice for encoder installation

1. Please read the encoder specification carefully before installation

2. Encoder is belong to precision instrument, so we should avoid shock or vibration to protect interior parts.

3. The power supply voltage must be holded within specified range, or encoder could be destroyed.

4. Notice coaxially requirements when you install the power shaft, please use flexible coupling and do not press encoder forcibly.

5. Shielding cable of encoder must be connected to avoid electromagnetism interference of alternating current, cables of encoder should be layout individually.

6. Wiring diagram connection should be strictly follow the specified color in catalogue, or encoder interior circuit may be destroyed

7. Encoder should be apart from powerful magnetic field, dust, oil, water, higher (lower) temperature and caustic or flammable material during working.

8. The encoder cable signal can’t be drew or bent forcibly.





Product Information for S30 incremental encoder

Items Basic parameters
External dimensions External diameter: 30mm
Thickness: 30mm
Shaft diameter: 4mm(D type)
Encoder type Incremental encoder
Resolution 20;25;36;50;60;100;200;250;256;300;360;400;500;512;600;
625;720;1000;1024;1200;1250;1440;2000;2048;2500
Output phase Phase A,B,Z,A-,B-,Z-
Supply voltage DC5V : DC8-30V
Outlet type Cable out from side
Cable out from back
Output mode NPN&PNP
Voltage output
Push-pull output
Difference output(TTL,HTL,RS422)
Environmental temperature Operating temperature: -20~+80° (Non icing)
Storage temperature: -25~+85° (Non icing)
Environmental humanity Operating and storage: 35~85%RH (non-condensing)
Protection grade IP50
package Carton box
Net weight 60g (with package)
Certification CE



Applications

  • Petrochemical industry
  • Pharmaceutical industry
  • Food industry
  • Aviation and aerospace industry
  • Architectural decoration industry
  • Oil and gas industry
  • FFS machine
  • VFFS machine
  • Packing machinery
  • Capsule filling machine
  • Pharmaceutical machine
  • VVVF motor
  • DC motor
