3 Phase Incremental Hollow Conical Shaft Encoder For Office Automation

3 Phase Incremental Hollow Conical Shaft Encoder For Office Automation

  • 3 Phase Incremental  Hollow Conical Shaft Encoder For Office Automation
  • 3 Phase Incremental  Hollow Conical Shaft Encoder For Office Automation
  • 3 Phase Incremental  Hollow Conical Shaft Encoder For Office Automation
3 Phase Incremental  Hollow Conical Shaft Encoder For Office Automation
Product Details:
Place of Origin: Shanghai, China
Brand Name: HENGXIANG
Certification: CE,ISO9001
Model Number: KZ48
Payment & Shipping Terms:
Minimum Order Quantity: 1Pcs
Price: Consult us
Packaging Details: each 1 piece was packed into single carton box
Delivery Time: 3-5 working days for sample order, 7-15 working days for mass order
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 100K pieces per year
Contact Now
Detailed Product Description
Model Selection: Taper Hole Shaft Cable Outlet: Radial Cable
Output Phase: Phase A+,B+,Z+,A-,B-,Z-,U+,V+,W+,U-,V-,W- Resolution/ Pole: 8192/8 Max
Sensing Basic: Photoeletric Protection: IP40
High Light:

Incremental Conical shaft Encoder

,

Office Automation Conical shaft Encoder

,

3 Phase Hollow Conical Encoder

KZ48 China encoder manufacturer dc servo motor with 250 ppr DC12V cone shaft 9mm TTL


Items Basic parameters
Brand HENGXIANG
Encoder type Incremental encoder
External diameter 48mm
Thickness 34mm
Installation dimension 40mm(spring plate 48T40)
Hollow shaft type hollow conical shaft
Hollow shaft diameter 9mm( taper 1:10)
Resolution 50;60;100;200;256;300;360;500;512;600;720;1000; 1024;1200;2000;2048;2500;3600;4096;5000;8192;10000
1000/4;1000/6;1000/8;1024/4;1024/6;1024/8;2048/4;2048/6;2048/8;2500/4;2500/6;2500/8;4096/4;4096/6;4096/8;8192/4;8192/6;8192/8;10000/6;10000/8
Output phase Phase A+,B+,Z+,A-,B-,Z-,U+,V+,W+,U-,V-,W-
Supply voltage DC5V ; DC8--30V
Outlettype Cable out from side
Output mode NPN/PNP(Open Collector Output)
Voltage output
Push-pull output
line drive (26LS31) TTL
line drive(DC8-30V) HTL
TTL(DC5V) phase ABZ are back of phase UVW
Protection grade IP40
Cable length 500mm
Consumption current 100mA MAX
Top response frenquency 100KHZ
Allowable ripple ≤3%rms
Load Voltage ≤DC30V
Insulation strength AC500V 60s
Insulation resistance 10MΩ
GND not connect to encoder
Mark to Space ratio 45% to 55%
starting torque less than 9.8x 10-3 N.m
Intertia moment less than 6.5x 10-6kg.m2
Shaft load Radial 50N; Axial 30N
Top REV 5000RPM
Bearing life 1.5x109 revs at rated load(100000hrs at 2500RPM)
Environmental temperature Operating:-20 ~+85°;storage:-25 ~+90°
Enviromental humidity Operating and storage: 35-85%RH(noncondensing)
Vibration(endure) Amplitude 0.75mm,5-55Hz,2 hours for three axis individually
Sock(endure) 490m/s2 ,11 ms three times for X,Y,Z direction individually
Material Dia cast aluminium
Certification CE
package Carton box
Net weight About 140g (with package)

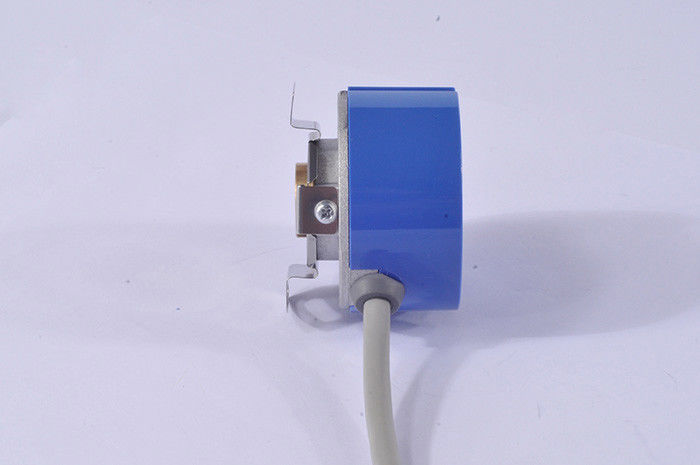

3 Phase Incremental  Hollow Conical Shaft Encoder For Office Automation 0

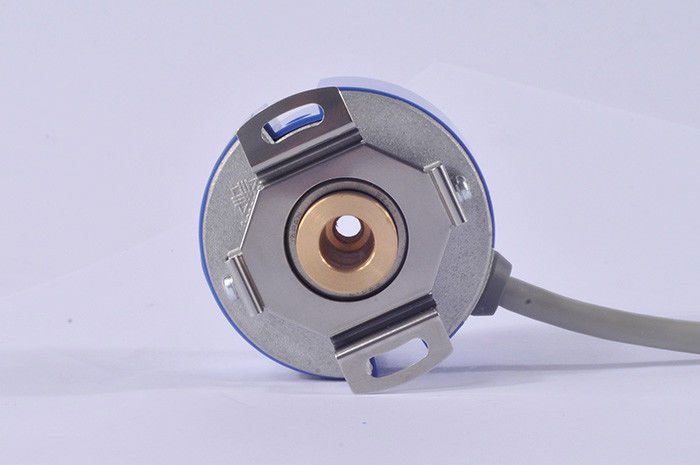

3 Phase Incremental  Hollow Conical Shaft Encoder For Office Automation 1

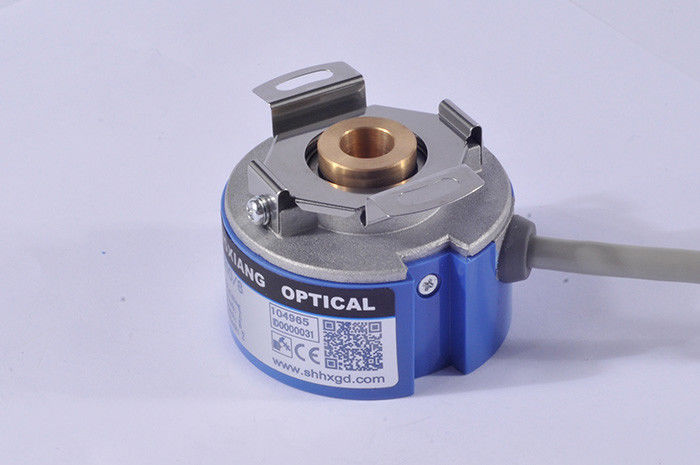

3 Phase Incremental  Hollow Conical Shaft Encoder For Office Automation 2

Production date
1. for 1-10 samples: 3-5 working days
2. for 20-50 mass production: 7-10 working days
3. for over 100pcs, production will be discussed with customers and ship on time
